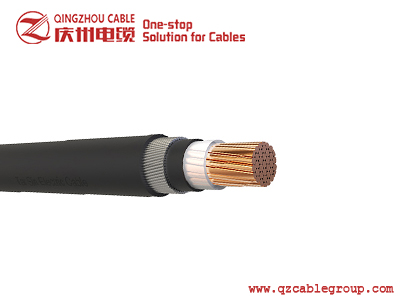

0.6/1 kV Single-core cables, XLPE insulated, wire armoured with copper and aluminum conductor
APPLICATIONS
These cables are intended for fixed installations, indoors and outdoors, in low voltage electricity systems. They are normally used for the distribution of electrical energy in urban networks, power or switching stations, industrial plants, as well as in switchgears, in applications where there is a risk of mechanical damage.
CABLE CHARACTERISTICS
APPLICABLE STANDARDS
Low Voltage power cables are designed and tested to meet all the requirements of the latest edition of IEC 60502-1 standard. In addition, can also supply a range of alternative designs to meet customer-specified requirements.
CABLE CONSTRUCTION
Conductor
Plain annealed stranded circular or circular compacted copper conductor (Class 2 to IEC 60228).
Stranded circular or circular compacted aluminium conductor (Class 2 to IEC 60228).
Insulation
Extruded layer of Cross-linked Polyethylene (XLPE) to IEC 60502-1.
Bedding
Extruded layer of Polyvinyl Chloride (PVC) – Type (ST2) to IEC 60502-1.
Armouring
Single layer of round non-magnetic (aluminium) wires.
Outer Jacket
Extruded layer of Polyvinyl Chloride (PVC) – Type (ST2) to IEC 60502-1.
0.6/1 kV CU/XLPE/AWA/ PVC Single-core cables, XLPE insulated, wire armoured with copper conductor IEC 60502-1
|
Nominal cross sectional area |
ELECTRICAL DATA |
DIMENSIONS AND WEIGHTS |
|||||||||
|
Max. Conductor Resistance |
Continuous Current Ratings |
Approx. overall diameter |
Approx. overall weight |
||||||||
|
DC at 20 °C |
AC at 90 °C |
Buried direct in ground |
In buried ducts |
In free air |
|||||||
|
mm² |
Ω / km |
Ω / km |
(a) |
(b) |
(c) |
(d) |
(e) |
(f) |
(g) |
||
|
A |
A |
A |
A |
A |
A |
A |
mm |
kg / km |
|||
|
6 |
3.0800 |
3.9273 |
59 |
59 |
49 |
54 |
60 |
61 |
75 |
13.0 |
255 |
|
10 |
1.8300 |
2.3335 |
78 |
78 |
65 |
71 |
80 |
82 |
100 |
13.6 |
300 |
|
16 |
1.1500 |
1.4665 |
99 |
99 |
83 |
91 |
105 |
107 |
132 |
14.6 |
380 |
|
25 |
0.7270 |
0.9272 |
127 |
127 |
107 |
117 |
138 |
141 |
172 |
16.2 |
500 |
|
35 |
0.5240 |
0.6685 |
151 |
151 |
128 |
139 |
168 |
171 |
208 |
17.2 |
615 |
|
50 |
0.3870 |
0.4939 |
178 |
178 |
152 |
163 |
202 |
206 |
249 |
18.8 |
765 |
|
70 |
0.2680 |
0.3424 |
217 |
215 |
189 |
198 |
253 |
257 |
307 |
20.6 |
1000 |
|
95 |
0.1930 |
0.2471 |
257 |
255 |
223 |
234 |
308 |
310 |
366 |
22.4 |
1285 |
|
120 |
0.1530 |
0.1964 |
290 |
287 |
253 |
263 |
354 |
354 |
413 |
24.1 |
1560 |
|
150 |
0.1240 |
0.1598 |
323 |
318 |
284 |
291 |
403 |
400 |
461 |
26.0 |
1860 |
|
185 |
0.0991 |
0.1286 |
361 |
354 |
320 |
322 |
461 |
453 |
512 |
28.3 |
2270 |
|
240 |
0.0754 |
0.0991 |
411 |
401 |
367 |
360 |
539 |
521 |
579 |
31.0 |
2870 |
|
300 |
0.0601 |
0.0805 |
456 |
440 |
410 |
391 |
612 |
583 |
637 |
33.6 |
3475 |
|
400 |
0.0470 |
0.0647 |
494 |
472 |
450 |
410 |
685 |
628 |
672 |
38.2 |
4535 |
|
500 |
0.0366 |
0.0527 |
539 |
511 |
497 |
439 |
770 |
691 |
729 |
42.2 |
5715 |
|
630 |
0.0283 |
0.0436 |
582 |
547 |
541 |
465 |
854 |
749 |
783 |
46.4 |
7130 |
|
800 |
0.0221 |
0.0367 |
599 |
565 |
564 |
481 |
908 |
781 |
829 |
52.3 |
9240 |
|
1000 |
0.0176 |
0.0324 |
629 |
595 |
601 |
513 |
996 |
849 |
915 |
61.1 |
11550 |
0.6/1 AL/XLPE/AWA/PVC kV Single-core cables, XLPE insulated, wire armoured with copper conductor IEC 60502-1
|
Nominal cross sectional area |
ELECTRICAL DATA |
DIMENSIONS AND WEIGHTS |
|||||||||
|
Max. Conductor Resistance |
Continuous Current Ratings |
Approx. overall diameter |
Approx. overall weight |
||||||||
|
DC at 20 °C |
AC at 90 °C |
Buried direct in ground |
In buried ducts |
In free air |
|||||||
|
mm² |
Ω / km |
Ω / km |
(a) |
(b) |
(c) |
(d) |
(e) |
(f) |
(g) |
||
|
A |
A |
A |
A |
A |
A |
A |
mm |
kg / km |
|||
|
10 |
3.0800 |
3.9489 |
62 |
62 |
51 |
57 |
63 |
65 |
80 |
13.6 |
240 |
|
16 |
1.9100 |
2.4489 |
77 |
77 |
65 |
71 |
81 |
83 |
102 |
14.6 |
285 |
|
25 |
1.2000 |
1.5386 |
99 |
99 |
83 |
91 |
107 |
110 |
134 |
16.2 |
350 |
|
35 |
0.8680 |
1.1130 |
118 |
118 |
100 |
108 |
130 |
133 |
163 |
17.2 |
405 |
|
50 |
0.6410 |
0.8221 |
139 |
139 |
118 |
128 |
157 |
161 |
195 |
18.8 |
480 |
|
70 |
0.4430 |
0.5684 |
169 |
169 |
145 |
156 |
197 |
201 |
242 |
20.6 |
585 |
|
95 |
0.3200 |
0.4109 |
201 |
200 |
174 |
185 |
240 |
244 |
292 |
22.4 |
705 |
|
120 |
0.2530 |
0.3252 |
228 |
226 |
198 |
209 |
278 |
281 |
332 |
24.1 |
830 |
|
150 |
0.2060 |
0.2651 |
254 |
252 |
223 |
232 |
317 |
319 |
373 |
26.0 |
965 |
|
185 |
0.1640 |
0.2116 |
286 |
282 |
253 |
260 |
365 |
364 |
421 |
28.3 |
1150 |
|
240 |
0.1250 |
0.1621 |
328 |
323 |
293 |
297 |
430 |
425 |
483 |
31.0 |
1390 |
|
300 |
0.1000 |
0.1306 |
368 |
359 |
330 |
328 |
492 |
481 |
539 |
33.6 |
1640 |
|
400 |
0.0778 |
0.1028 |
408 |
395 |
372 |
354 |
564 |
536 |
587 |
38.2 |
2150 |
|
500 |
0.0605 |
0.0816 |
455 |
437 |
418 |
387 |
647 |
602 |
650 |
42.2 |
2620 |
|
630 |
0.0469 |
0.0653 |
501 |
478 |
466 |
421 |
733 |
668 |
711 |
46.4 |
3205 |
|
800 |
0.0367 |
0.0533 |
531 |
507 |
500 |
443 |
802 |
714 |
767 |
52.4 |
4150 |
|
1000 |
0.0291 |
0.0452 |
570 |
545 |
545 |
480 |
898 |
789 |
858 |
61.1 |
5165 |
