0.6/1 kV Control cables, PVC insulated with copper conductor
APPLICATIONS
These cables are intended for fixed installations, indoors and outdoors, in low voltage control systems. They are normally used for connecting signaling and control units in industry, in railways, in traffic signals, in power or switching stations, as well as in switchgears, in applications where there is no risk of mechanical damage.
APPLICABLE STANDARDS
Low Voltage control cables are designed and tested to meet all the requirements of the latest edition of IEC 60502-1 standard. In addition, can also supply a range of alternative designs to meet customer-specified requirements.
CABLE CONSTRUCTION
Conductor
Plain annealed stranded circular copper conductor (Class 2 to IEC 60228).
Insulation
Extruded layer of Polyvinyl Chloride (PVC) – Type (PVC/A) to IEC 60502-1.
Assembly
Cores are assembled together using Non-hygroscopic filler, if needed.
Outer Jacket
Extruded layer of Polyvinyl Chloride (PVC) – Type (ST1) to IEC 60502-1.

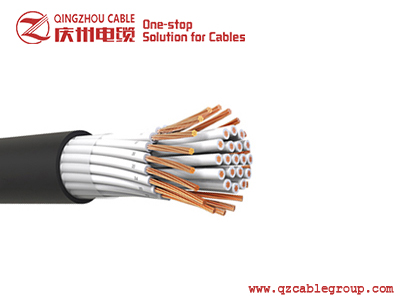

0.6/1 kV CU/PVC/PVC Control cables, PVC insulated, unarmoured with copper conductor IEC 60502-1
|
No. of cores X Nominal cross sectional area |
ELECTRICAL DATA |
DIMENSIONS AND WEIGHTS |
|||||
|
Max. Conductor Resistance |
Continuous Current Ratings |
Approx. overall diameter |
Approx. overall weight |
||||
|
DC at 20 °C |
AC at 70 °C |
Laid in ground |
Laid in ducts |
Laid in free air |
|||
|
mm² |
Ω / km |
Ω / km |
A |
A |
A |
mm |
kg / km |
|
1.5 mm2 |
|||||||
|
2 X 1.5 |
12.1000 |
14.4777 |
27 |
19 |
21 |
9.9 |
145 |
|
3 X 1.5 |
12.1000 |
14.4777 |
23 |
15 |
18 |
10.4 |
170 |
|
4 X 1.5 |
12.1000 |
14.4777 |
23 |
15 |
18 |
11.3 |
205 |
|
5 X 1.5 |
12.1000 |
14.4777 |
17 |
12 |
14 |
12.6 |
220 |
|
7 X 1.5 |
12.1000 |
14.4777 |
15 |
10 |
12 |
13.7 |
275 |
|
10 X 1.5 |
12.1000 |
14.4777 |
13 |
9 |
11 |
16.9 |
375 |
|
12 X 1.5 |
12.1000 |
14.4777 |
12 |
8 |
10 |
17.4 |
425 |
|
14 X 1.5 |
12.1000 |
14.4777 |
11 |
8 |
10 |
18.2 |
480 |
|
16 X 1.5 |
12.1000 |
14.4777 |
11 |
8 |
10 |
19.4 |
545 |
|
19 X 1.5 |
12.1000 |
14.4777 |
10 |
7 |
9 |
20.4 |
620 |
|
24 X 1.5 |
12.1000 |
14.4777 |
9 |
7 |
9 |
23.6 |
765 |
|
30 X 1.5 |
12.1000 |
14.4777 |
8 |
6 |
8 |
24.9 |
920 |
|
37 X 1.5 |
12.1000 |
14.4777 |
7 |
6 |
7 |
27.1 |
1105 |
|
40 X 1.5 |
12.1000 |
14.4777 |
7 |
5 |
7 |
28.2 |
1195 |
|
48 X 1.5 |
12.1000 |
14.4777 |
7 |
5 |
7 |
31.0 |
1410 |
|
2.5 mm2 |
|||||||
|
2 X 2.5 |
7.4100 |
8.8661 |
36 |
24 |
28 |
10.8 |
185 |
|
3 X 2.5 |
7.4100 |
8.8661 |
29 |
20 |
23 |
11.4 |
220 |
|
4 X 2.5 |
7.4100 |
8.8661 |
29 |
20 |
23 |
12.3 |
265 |
|
5 X 2.5 |
7.4100 |
8.8661 |
22 |
15 |
18 |
13.9 |
290 |
|
7 X 2.5 |
7.4100 |
8.8661 |
19 |
13 |
16 |
14.9 |
360 |
|
10 X 2.5 |
7.4100 |
8.8661 |
17 |
12 |
15 |
18.5 |
495 |
|
12 X 2.5 |
7.4100 |
8.8661 |
16 |
11 |
14 |
19.1 |
570 |
|
14 X 2.5 |
7.4100 |
8.8661 |
15 |
10 |
13 |
20.0 |
645 |
|
16 X 2.5 |
7.4100 |
8.8661 |
14 |
10 |
13 |
21.3 |
735 |
|
19 X 2.5 |
7.4100 |
8.8661 |
13 |
9 |
12 |
22.4 |
840 |
|
24 X 2.5 |
7.4100 |
8.8661 |
12 |
9 |
11 |
26.0 |
1045 |
|
30 X 2.5 |
7.4100 |
8.8661 |
11 |
8 |
10 |
27.5 |
1260 |
|
37 X 2.5 |
7.4100 |
8.8661 |
10 |
7 |
10 |
29.9 |
1525 |
|
40 X 2.5 |
7.4100 |
8.8661 |
9 |
7 |
10 |
31.3 |
1660 |
|
48 X 2.5 |
7.4100 |
8.8661 |
9 |
7 |
9 |
34.5 |
1975 |
|
4.0 mm2 |
|||||||
|
2 X 4.0 |
4.6100 |
5.5159 |
47 |
32 |
38 |
12.7 |
260 |
|
3 X 4.0 |
4.6100 |
5.5159 |
38 |
26 |
32 |
13.4 |
315 |
|
4 X 4.0 |
4.6100 |
5.5159 |
38 |
26 |
32 |
14.6 |
385 |
|
5 X 4.0 |
4.6100 |
5.5159 |
29 |
21 |
25 |
16.4 |
420 |
|
7 X 4.0 |
4.6100 |
5.5159 |
25 |
18 |
22 |
17.9 |
535 |
|
10 X 4.0 |
4.6100 |
5.5159 |
22 |
16 |
20 |
22.5 |
740 |
|
12 X 4.0 |
4.6100 |
5.5159 |
20 |
15 |
19 |
23.2 |
860 |
|
14 X 4.0 |
4.6100 |
5.5159 |
19 |
14 |
18 |
24.4 |
980 |
|
16 X 4.0 |
4.6100 |
5.5159 |
18 |
13 |
17 |
26.0 |
1120 |
|
19 X 4.0 |
4.6100 |
5.5159 |
17 |
12 |
16 |
27.4 |
1285 |
|
24 X 4.0 |
4.6100 |
5.5159 |
15 |
12 |
16 |
32.2 |
1620 |
|
30 X 4.0 |
4.6100 |
5.5159 |
14 |
11 |
14 |
34.3 |
1990 |
|
37 X 4.0 |
4.6100 |
5.5159 |
13 |
10 |
13 |
37.5 |
2430 |
|
40 X 4.0 |
4.6100 |
5.5159 |
12 |
9 |
13 |
39.0 |
2620 |
|
48 X 4.0 |
4.6100 |
5.5159 |
11 |
9 |
13 |
43.0 |
3115 |

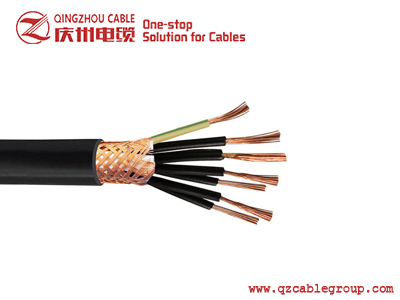

0.6/1 kV CU/ PVC/CT SHIELDED/PVC Control cables, PVC insulated, copper tape shielded with copper conductor IEC 60502-1
|
No. of cores X Nominal cross sectional area |
ELECTRICAL DATA |
DIMENSIONS AND WEIGHTS |
|||||
|
Max. Conductor Resistance |
Continuous Current Ratings |
Approx. overall diameter |
Approx. overall weight |
||||
|
DC at 20 °C |
AC at 70 °C |
Laid in ground |
Laid in ducts |
Laid in free air |
|||
|
mm² |
Ω / km |
Ω / km |
A |
A |
A |
mm |
kg / km |
|
1.5 mm2 |
|||||||
|
2 X 1.5 |
12.1000 |
14.4777 |
27 |
19 |
22 |
12.2 |
225 |
|
3 X 1.5 |
12.1000 |
14.4777 |
22 |
15 |
18 |
12.8 |
255 |
|
4 X 1.5 |
12.1000 |
14.4777 |
22 |
15 |
18 |
13.6 |
290 |
|
5 X 1.5 |
12.1000 |
14.4777 |
16 |
12 |
14 |
15.0 |
315 |
|
7 X 1.5 |
12.1000 |
14.4777 |
14 |
10 |
12 |
16.0 |
380 |
|
10 X 1.5 |
12.1000 |
14.4777 |
13 |
9 |
11 |
19.2 |
500 |
|
12 X 1.5 |
12.1000 |
14.4777 |
12 |
9 |
10 |
19.7 |
555 |
|
14 X 1.5 |
12.1000 |
14.4777 |
11 |
8 |
10 |
20.5 |
615 |
|
16 X 1.5 |
12.1000 |
14.4777 |
10 |
8 |
9 |
21.7 |
690 |
|
19 X 1.5 |
12.1000 |
14.4777 |
10 |
7 |
9 |
22.7 |
770 |
|
24 X 1.5 |
12.1000 |
14.4777 |
9 |
7 |
8 |
25.9 |
940 |
|
30 X 1.5 |
12.1000 |
14.4777 |
8 |
6 |
8 |
27.2 |
1105 |
|
37 X 1.5 |
12.1000 |
14.4777 |
7 |
5 |
7 |
29.4 |
1305 |
|
40 X 1.5 |
12.1000 |
14.4777 |
7 |
5 |
7 |
30.5 |
1405 |
|
48 X 1.5 |
12.1000 |
14.4777 |
7 |
5 |
7 |
33.3 |
1645 |
|
2.5 mm2 |
|||||||
|
2 X 2.5 |
7.4100 |
8.8661 |
35 |
25 |
29 |
13.1 |
270 |
|
3 X 2.5 |
7.4100 |
8.8661 |
29 |
20 |
24 |
13.7 |
310 |
|
4 X 2.5 |
7.4100 |
8.8661 |
29 |
20 |
24 |
14.7 |
360 |
|
5 X 2.5 |
7.4100 |
8.8661 |
21 |
16 |
18 |
16.1 |
385 |
|
7 X 2.5 |
7.4100 |
8.8661 |
19 |
14 |
16 |
17.2 |
475 |
|
10 X 2.5 |
7.4100 |
8.8661 |
16 |
12 |
15 |
20.8 |
635 |
|
12 X 2.5 |
7.4100 |
8.8661 |
15 |
11 |
14 |
21.4 |
715 |
|
14 X 2.5 |
7.4100 |
8.8661 |
14 |
10 |
13 |
22.3 |
795 |
|
16 X 2.5 |
7.4100 |
8.8661 |
13 |
10 |
13 |
23.6 |
895 |
|
19 X 2.5 |
7.4100 |
8.8661 |
12 |
9 |
12 |
24.7 |
1005 |
|
24 X 2.5 |
7.4100 |
8.8661 |
11 |
9 |
11 |
28.3 |
1245 |
|
30 X 2.5 |
7.4100 |
8.8661 |
10 |
8 |
10 |
29.8 |
1465 |
|
37 X 2.5 |
7.4100 |
8.8661 |
9 |
7 |
10 |
32.4 |
1765 |
|
40 X 2.5 |
7.4100 |
8.8661 |
9 |
7 |
9 |
33.6 |
1895 |
|
48 X 2.5 |
7.4100 |
8.8661 |
8 |
7 |
9 |
37.2 |
2265 |
|
4.0 mm2 |
|||||||
|
2 X 4.0 |
4.6100 |
5.5159 |
45 |
33 |
39 |
15.0 |
360 |
|
3 X 4.0 |
4.6100 |
5.5159 |
37 |
27 |
32 |
15.8 |
420 |
|
4 X 4.0 |
4.6100 |
5.5159 |
37 |
27 |
32 |
16.9 |
500 |
|
5 X 4.0 |
4.6100 |
5.5159 |
28 |
21 |
25 |
18.8 |
535 |
|
7 X 4.0 |
4.6100 |
5.5159 |
24 |
18 |
22 |
20.2 |
670 |
|
10 X 4.0 |
4.6100 |
5.5159 |
21 |
16 |
20 |
24.8 |
910 |
|
12 X 4.0 |
4.6100 |
5.5159 |
20 |
15 |
19 |
25.5 |
1035 |
|
14 X 4.0 |
4.6100 |
5.5159 |
19 |
14 |
18 |
26.7 |
1165 |
|
16 X 4.0 |
4.6100 |
5.5159 |
18 |
13 |
17 |
28.3 |
1315 |
|
19 X 4.0 |
4.6100 |
5.5159 |
16 |
12 |
16 |
29.7 |
1490 |
|
24 X 4.0 |
4.6100 |
5.5159 |
15 |
12 |
15 |
34.9 |
1895 |
|
30 X 4.0 |
4.6100 |
5.5159 |
13 |
11 |
14 |
37.0 |
2280 |
|
37 X 4.0 |
4.6100 |
5.5159 |
12 |
10 |
13 |
39.5 |
2695 |
|
40 X 4.0 |
4.6100 |
5.5159 |
12 |
9 |
13 |
41.7 |
2950 |
|
48 X 4.0 |
4.6100 |
5.5159 |
11 |
9 |
12 |
45.9 |
3500 |

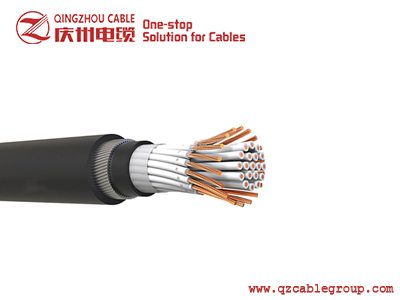

0.6/1 kV CU/PVC/SWA/PVC Control cables, PVC insulated, wire armoured with copper conductor IEC 60502-1
|
No. of cores X Nominal cross sectional area |
ELECTRICAL DATA |
DIMENSIONS AND WEIGHTS |
|||||
|
Max. Conductor Resistance |
Continuous Current Ratings |
Approx. overall diameter |
Approx. overall weight |
||||
|
DC at 20 °C |
AC at 70 °C |
Laid in ground |
Laid in ducts |
Laid in free air |
|||
|
mm² |
Ω / km |
Ω / km |
A |
A |
A |
mm |
kg / km |
|
1.5 mm2 |
|||||||
|
2 X 1.5 |
12.1000 |
14.4777 |
27 |
20 |
23 |
13.5 |
365 |
|
3 X 1.5 |
12.1000 |
14.4777 |
22 |
16 |
19 |
14.0 |
400 |
|
4 X 1.5 |
12.1000 |
14.4777 |
22 |
16 |
19 |
14.9 |
450 |
|
5 X 1.5 |
12.1000 |
14.4777 |
17 |
12 |
14 |
16.2 |
495 |
|
7 X 1.5 |
12.1000 |
14.4777 |
15 |
11 |
13 |
17.3 |
575 |
|
10 X 1.5 |
12.1000 |
14.4777 |
13 |
10 |
12 |
21.9 |
870 |
|
12 X 1.5 |
12.1000 |
14.4777 |
12 |
9 |
11 |
22.4 |
945 |
|
14 X 1.5 |
12.1000 |
14.4777 |
11 |
8 |
10 |
23.2 |
1015 |
|
16 X 1.5 |
12.1000 |
14.4777 |
10 |
8 |
10 |
24.4 |
1115 |
|
19 X 1.5 |
12.1000 |
14.4777 |
10 |
7 |
9 |
26.1 |
1365 |
|
24 X 1.5 |
12.1000 |
14.4777 |
9 |
7 |
9 |
29.3 |
1630 |
|
30 X 1.5 |
12.1000 |
14.4777 |
8 |
6 |
8 |
30.6 |
1820 |
|
37 X 1.5 |
12.1000 |
14.4777 |
7 |
6 |
7 |
33.0 |
2105 |
|
40 X 1.5 |
12.1000 |
14.4777 |
7 |
6 |
7 |
34.1 |
2235 |
|
48 X 1.5 |
12.1000 |
14.4777 |
7 |
5 |
7 |
37.2 |
2830 |
|
2.5 mm2 |
|||||||
|
2 X 2.5 |
7.4100 |
8.8661 |
35 |
25 |
30 |
14.4 |
420 |
|
3 X 2.5 |
7.4100 |
8.8661 |
29 |
21 |
25 |
15.0 |
470 |
|
4 X 2.5 |
7.4100 |
8.8661 |
29 |
21 |
25 |
15.9 |
530 |
|
5 X 2.5 |
7.4100 |
8.8661 |
22 |
16 |
19 |
17.5 |
590 |
|
7 X 2.5 |
7.4100 |
8.8661 |
19 |
14 |
17 |
19.9 |
805 |
|
10 X 2.5 |
7.4100 |
8.8661 |
17 |
12 |
15 |
23.5 |
1045 |
|
12 X 2.5 |
7.4100 |
8.8661 |
15 |
12 |
14 |
24.1 |
1130 |
|
14 X 2.5 |
7.4100 |
8.8661 |
14 |
11 |
14 |
25.7 |
1375 |
|
16 X 2.5 |
7.4100 |
8.8661 |
14 |
10 |
13 |
27.0 |
1520 |
|
19 X 2.5 |
7.4100 |
8.8661 |
13 |
10 |
12 |
28.1 |
1665 |
|
24 X 2.5 |
7.4100 |
8.8661 |
12 |
9 |
12 |
31.9 |
2005 |
|
30 X 2.5 |
7.4100 |
8.8661 |
10 |
8 |
11 |
33.4 |
2280 |
|
37 X 2.5 |
7.4100 |
8.8661 |
10 |
7 |
10 |
36.0 |
2645 |
|
40 X 2.5 |
7.4100 |
8.8661 |
9 |
7 |
10 |
37.5 |
3110 |
|
48 X 2.5 |
7.4100 |
8.8661 |
9 |
7 |
9 |
41.1 |
3585 |
|
4.0 mm2 |
|||||||
|
2 X 4.0 |
4.6100 |
5.5159 |
46 |
34 |
40 |
16.3 |
535 |
|
3 X 4.0 |
4.6100 |
5.5159 |
38 |
27 |
34 |
17.9 |
725 |
|
4 X 4.0 |
4.6100 |
5.5159 |
38 |
27 |
34 |
19.1 |
820 |
|
5 X 4.0 |
4.6100 |
5.5159 |
28 |
21 |
26 |
20.9 |
905 |
|
7 X 4.0 |
4.6100 |
5.5159 |
25 |
19 |
23 |
22.9 |
1070 |
|
10 X 4.0 |
4.6100 |
5.5159 |
22 |
17 |
21 |
28.2 |
1570 |
|
12 X 4.0 |
4.6100 |
5.5159 |
20 |
15 |
20 |
28.9 |
1705 |
|
14 X 4.0 |
4.6100 |
5.5159 |
19 |
14 |
19 |
30.1 |
1870 |
|
16 X 4.0 |
4.6100 |
5.5159 |
18 |
14 |
18 |
31.7 |
2065 |
|
19 X 4.0 |
4.6100 |
5.5159 |
17 |
13 |
17 |
33.3 |
2290 |
|
24 X 4.0 |
4.6100 |
5.5159 |
15 |
12 |
16 |
39.0 |
3155 |
|
30 X 4.0 |
4.6100 |
5.5159 |
14 |
11 |
14 |
40.9 |
3600 |
|
37 X 4.0 |
4.6100 |
5.5159 |
12 |
10 |
13 |
43.4 |
4100 |
|
40 X 4.0 |
4.6100 |
5.5159 |
12 |
10 |
13 |
45.8 |
4450 |
|
48 X 4.0 |
4.6100 |
5.5159 |
11 |
9 |
12 |
50.0 |
5475 |
