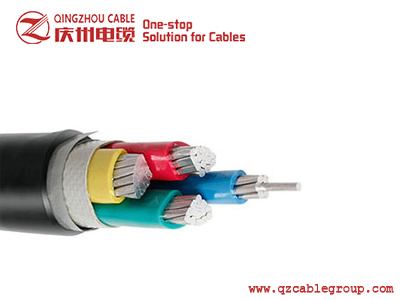

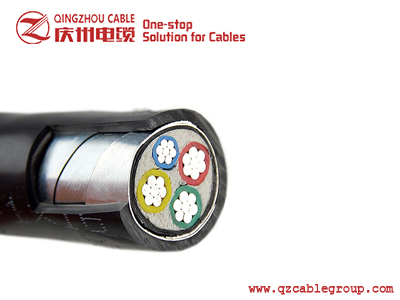

0.6/1 kV Multi-core cables, XLPE insulated, tape armoured with copper and aluminum conductor
APPLICATIONS
These cables are intended for fixed installations, indoors and outdoors, in low voltage electricity systems. They are normally used for the distribution of electrical energy in urban networks, power or switching stations, industrial plants, as well as in switchgears, in applications where there is a risk of mechanical damage.
CABLE CHARACTERISTICS
APPLICABLE STANDARDS
Low Voltage power cables are designed and tested to meet all the requirements of the latest edition of IEC 60502-1 standard. In addition, can also supply a range of alternative designs to meet customer-specified requirements.
CABLE CONSTRUCTION
Conductor
Plain annealed stranded circular (rm) or sector shaped (sm) copper conductor (Class 2 to IEC 60228).
Stranded circular (rm) or sector shaped (sm) aluminium conductor (Class 2 to IEC 60228).
Insulation
Extruded layer of Cross-linked Polyethylene (XLPE) to IEC 60502-1.
Assembly
Cores are assembled together using Non-hygroscopic filler, if needed.
Bedding
Extruded layer of Polyvinyl Chloride (PVC) – Type (ST2) to IEC 60502-1.
Armouring
Double layers of galvanized steel tapes.
Outer Jacket
Extruded layer of Polyvinyl Chloride (PVC) – Type (ST2) to IEC 60502-1.

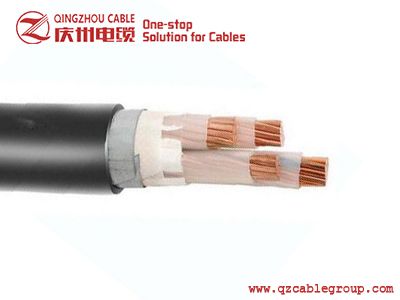

0.6/1 kV CU/XLPE/STA (DST)/PVC Multi-core cables, XLPE insulated, tape armoured with copper conductor IEC 60502-1
|
Nominal cross sectional area |
ELECTRICAL DATA |
DIMENSIONS AND WEIGHTS |
||||||
|
Max. Conductor Resistance |
Continuous Current Ratings |
Approx. overall diameter |
Approx. overall weight |
|||||
|
DC at 20 °C |
AC at 90 °C |
Laid in ground |
Laid in ducts |
Laid in free air |
||||
|
mm² |
Ω / km |
Ω / km |
A |
A |
A |
mm |
kg / km |
|
|
Two Core Cables |
||||||||
|
6 |
rm |
3.0800 |
3.9274 |
67 |
49 |
62 |
15.4 |
430 |
|
10 |
rm |
1.8300 |
2.3336 |
89 |
65 |
83 |
16.6 |
530 |
|
16 |
rm |
1.1500 |
1.4667 |
114 |
84 |
110 |
18.6 |
705 |
|
25 |
rm |
0.7270 |
0.9275 |
148 |
111 |
148 |
21.7 |
1000 |
|
35 |
rm |
0.5240 |
0.6688 |
177 |
134 |
180 |
23.8 |
1260 |
|
Three Core Cables |
||||||||
|
6 |
rm |
3.0800 |
3.9274 |
55 |
40 |
52 |
16.2 |
500 |
|
10 |
rm |
1.8300 |
2.3336 |
74 |
54 |
70 |
17.9 |
615 |
|
16 |
rm |
1.1500 |
1.4667 |
95 |
70 |
93 |
20.1 |
835 |
|
25 |
rm |
0.7270 |
0.9275 |
123 |
92 |
124 |
23.4 |
1170 |
|
35 |
sm |
0.5240 |
0.6688 |
140 |
106 |
140 |
22.8 |
1390 |
|
50 |
sm |
0.3870 |
0.4944 |
166 |
128 |
171 |
25.8 |
1790 |
|
70 |
sm |
0.2680 |
0.3431 |
203 |
159 |
215 |
29.7 |
2495 |
|
95 |
sm |
0.1930 |
0.2481 |
243 |
193 |
263 |
33.3 |
3310 |
|
120 |
sm |
0.1530 |
0.1976 |
278 |
224 |
310 |
37.8 |
4430 |
|
Four Core Cables |
||||||||
|
4 |
rm |
4.6100 |
5.8783 |
45 |
32 |
41 |
16.0 |
480 |
|
6 |
rm |
3.0800 |
3.9274 |
55 |
40 |
52 |
17.3 |
590 |
|
10 |
rm |
1.8300 |
2.3336 |
74 |
54 |
70 |
19.2 |
755 |
|
16 |
rm |
1.1500 |
1.4667 |
95 |
70 |
93 |
21.7 |
1020 |
|
25 |
rm |
0.7270 |
0.9275 |
123 |
92 |
124 |
25.4 |
1465 |
|
35 |
sm |
0.5240 |
0.6688 |
140 |
106 |
140 |
25.8 |
1780 |
|
50 |
sm |
0.3870 |
0.4944 |
166 |
128 |
171 |
29.5 |
2320 |
|
70 |
sm |
0.2680 |
0.3431 |
203 |
159 |
215 |
34.0 |
3235 |
|
95 |
sm |
0.1930 |
0.2481 |
243 |
193 |
263 |
38.1 |
4630 |
|
120 |
sm |
0.1530 |
0.1976 |
278 |
224 |
310 |
42.6 |
5760 |
|
150 |
sm |
0.1240 |
0.1612 |
310 |
252 |
349 |
47.1 |
6990 |
|
185 |
sm |
0.0991 |
0.1302 |
349 |
287 |
402 |
52.1 |
8590 |
|
240 |
sm |
0.0754 |
0.1012 |
402 |
335 |
473 |
58.3 |
10995 |
|
300 |
sm |
0.0601 |
0.0829 |
452 |
380 |
541 |
63.9 |
13550 |
|
400 |
sm |
0.0470 |
0.0676 |
511 |
435 |
627 |
72.9 |
17260 |
|
500 |
sm |
0.0366 |
0.0561 |
570 |
491 |
713 |
81.8 |
22775 |
|
Four Core Cables with Reduced Neutral |
||||||||
|
25 rm |
16 rm |
0.7270 / 1.1500 |
0.9275 / 1.4667 |
123 |
92 |
124 |
24.5 |
1370 |
|
35 sm |
16 rm |
0.5240 / 1.1500 |
0.6688 / 1.4667 |
140 |
106 |
140 |
25.8 |
1635 |
|
50 sm |
25 rm |
0.3870 / 0.7270 |
0.4944 / 0.9275 |
166 |
128 |
171 |
29.3 |
2135 |
|
70 sm |
35 sm |
0.2680 / 0.5240 |
0.3431 / 0.6688 |
203 |
159 |
215 |
32.6 |
2905 |
|
95 sm |
50 sm |
0.1930 / 0.3870 |
0.2481 / 0.4944 |
243 |
193 |
263 |
37.4 |
4160 |
|
120 sm |
70 sm |
0.1530 / 0.2680 |
0.1976 / 0.3431 |
278 |
224 |
310 |
40.5 |
5185 |
|
150 sm |
70 sm |
0.1240 / 0.2680 |
0.1612 / 0.3431 |
310 |
252 |
349 |
44.7 |
6165 |
|
185 sm |
95 sm |
0.0991 / 0.1930 |
0.1302 / 0.2481 |
349 |
287 |
402 |
49.6 |
7650 |
|
240 sm |
120 sm |
0.0754 / 0.1530 |
0.1012 / 0.1976 |
402 |
335 |
473 |
55.5 |
9735 |
|
300 sm |
150 sm |
0.0601 / 0.1240 |
0.0829 / 0.1612 |
452 |
380 |
541 |
60.6 |
11940 |
|
400 sm |
185 sm |
0.0470 / 0.0991 |
0.0676 / 0.1302 |
511 |
435 |
627 |
68.5 |
15100 |
|
500 sm |
240 sm |
0.0366 / 0.0754 |
0.0561 / 0.1012 |
570 |
491 |
713 |
76.1 |
19270 |
0.6/1 kV AL/XLPE/STA (DST)/PVC Multi-core cables, XLPE insulated, tape armoured with aluminum conductor IEC 60502-1
|
Nominal cross sectional area |
ELECTRICAL DATA |
DIMENSIONS AND WEIGHTS |
||||||
|
Max. Conductor Resistance |
Continuous Current Ratings |
Approx. overall diameter |
Approx. overall weight |
|||||
|
DC at 20 °C |
AC at 90 °C |
Laid in ground |
Laid in ducts |
Laid in free air |
||||
|
mm² |
Ω / km |
Ω / km |
A |
A |
A |
mm |
kg / km |
|
|
Two Core Cables |
||||||||
|
10 |
rm |
3.0800 |
3.9490 |
68 |
50 |
64 |
16.6 |
410 |
|
16 |
rm |
1.9100 |
2.4490 |
89 |
65 |
85 |
18.6 |
515 |
|
25 |
rm |
1.2000 |
1.5388 |
115 |
86 |
115 |
21.2 |
675 |
|
35 |
rm |
0.8680 |
1.1133 |
138 |
104 |
140 |
23.8 |
840 |
|
Three Core Cables |
||||||||
|
10 |
rm |
3.0800 |
3.9490 |
57 |
41 |
54 |
17.9 |
440 |
|
16 |
rm |
1.9100 |
2.4490 |
73 |
54 |
72 |
20.1 |
545 |
|
25 |
rm |
1.2000 |
1.5388 |
95 |
72 |
97 |
22.8 |
700 |
|
35 |
sm |
0.8680 |
1.1133 |
108 |
82 |
108 |
22.8 |
750 |
|
50 |
sm |
0.6410 |
0.8224 |
129 |
99 |
132 |
25.8 |
930 |
|
70 |
sm |
0.4430 |
0.5688 |
158 |
124 |
167 |
29.7 |
1235 |
|
95 |
sm |
0.3200 |
0.4115 |
189 |
150 |
204 |
33.3 |
1575 |
|
120 |
sm |
0.2530 |
0.3259 |
217 |
174 |
241 |
37.8 |
2245 |
|
Four Core Cables |
||||||||
|
10 |
rm |
3.0800 |
3.9490 |
57 |
41 |
54 |
19.2 |
515 |
|
16 |
rm |
1.9100 |
2.4490 |
73 |
54 |
72 |
21.7 |
640 |
|
25 |
rm |
1.2000 |
1.5388 |
95 |
72 |
97 |
24.8 |
845 |
|
35 |
sm |
0.8680 |
1.1133 |
108 |
82 |
108 |
25.8 |
930 |
|
50 |
sm |
0.6410 |
0.8224 |
129 |
99 |
132 |
29.5 |
1180 |
|
70 |
sm |
0.4430 |
0.5688 |
158 |
124 |
167 |
34.0 |
1560 |
|
95 |
sm |
0.3200 |
0.4115 |
189 |
150 |
204 |
38.1 |
2315 |
|
120 |
sm |
0.2530 |
0.3259 |
217 |
174 |
241 |
42.6 |
2845 |
|
150 |
sm |
0.2060 |
0.2660 |
241 |
196 |
272 |
47.1 |
3390 |
|
185 |
sm |
0.1640 |
0.2126 |
274 |
255 |
314 |
52.1 |
4075 |
|
240 |
sm |
0.1250 |
0.1634 |
317 |
264 |
372 |
58.3 |
5105 |
|
300 |
sm |
0.1000 |
0.1321 |
357 |
301 |
428 |
63.9 |
6085 |
|
400 |
sm |
0.0778 |
0.1047 |
410 |
349 |
503 |
72.9 |
7705 |
|
500 |
sm |
0.0605 |
0.0838 |
464 |
400 |
580 |
81.8 |
10245 |
|
Four Core Cables with Reduced Neutral |
||||||||
|
50 sm |
25 rm |
0.6410 / 1.2000 |
0.8224 / 1.5388 |
129 |
99 |
132 |
29.3 |
1125 |
|
70 sm |
35 sm |
0.4430 / 0.8680 |
0.5688 / 1.1133 |
158 |
124 |
167 |
32.6 |
1435 |
|
95 sm |
50 sm |
0.3200 / 0.6410 |
0.4115 / 0.8224 |
189 |
150 |
204 |
37.4 |
2140 |
|
120 sm |
70 sm |
0.2530 / 0.4430 |
0.3259 / 0.5688 |
217 |
174 |
241 |
40.5 |
2580 |
|
150 sm |
70 sm |
0.2060 / 0.4430 |
0.2660 / 0.5688 |
241 |
196 |
272 |
44.7 |
3045 |
|
185 sm |
95 sm |
0.1640 / 0.3200 |
0.2126 / 0.4115 |
274 |
255 |
314 |
49.6 |
3690 |
|
240 sm |
120 sm |
0.1250 / 0.2530 |
0.1634 / 0.3259 |
317 |
264 |
372 |
55.5 |
4590 |
|
300 sm |
150 sm |
0.1000 / 0.2060 |
0.1321 / 0.2660 |
357 |
301 |
428 |
60.6 |
5445 |
|
400 sm |
185 sm |
0.0778 / 0.1640 |
0.1047 / 0.2126 |
410 |
349 |
503 |
68.5 |
6805 |
|
500 sm |
240 sm |
0.0605 / 0.1250 |
0.0838 / 0.1634 |
464 |
400 |
580 |
76.1 |
8405 |
