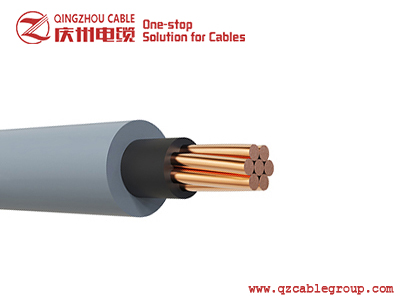

0.6/1 kV Single-core cables, PVC insulated, unarmoured with copper and aluminium conductor
APPLICATIONS
These cables are intended for fixed installations, indoors and outdoors, in low voltage electricity systems. They are normally used for the distribution of electrical energy in urban networks, power or switching stations, industrial plants, as well as in switchgears, in applications where there is no risk of mechanical damage.
APPLICABLE STANDARDS
Low Voltage power cables are designed and tested to meet all the requirements of the latest edition of IEC 60502-1 standard. In addition,can also supply a range of alternative designs to meet customer-specified requirements.
CABLE CONSTRUCTION
Conductor
Plain annealed stranded circular or circular compacted copper conductor (Class 2 to IEC 60228).
Stranded circular or circular compacted aluminium conductor (Class 2 to IEC 60228).
Insulation
Extruded layer of Polyvinyl Chloride (PVC) – Type (PVC/A) to IEC 60502-1.
Core Identification
Red
Outer Jacket
Extruded layer of Polyvinyl Chloride (PVC) – Type (ST1) to IEC 60502-1.
0.6/1kV CU / PVC / PVC Single-core cables, PVC insulated, unarmoured with copper conductor IEC 60502-1
|
Nominal cross sectional area |
ELECTRICAL DATA |
DIMENSIONS AND WEIGHTS |
|||||||||
|
Max. Conductor Resistance |
Continuous Current Ratings |
Approx. overall diameter |
Approx. overall weight |
||||||||
|
DC at 20 °C |
AC at 70 °C |
Buried direct in ground |
In buried ducts |
In free air |
|||||||
|
mm² |
Ω / km |
Ω / km |
(a) |
(b) |
(c) |
(d) |
(e) |
(f) |
(g) |
||
|
A |
A |
A |
A |
A |
A |
A |
mm |
kg / km |
|||
|
1.5 |
12.1000 |
14.4777 |
22 |
22 |
16 |
18 |
17 |
17 |
23 |
6.0 |
55 |
|
2.5 |
7.4100 |
8.8661 |
29 |
29 |
21 |
24 |
23 |
23 |
30 |
6.4 |
70 |
|
4 |
4.6100 |
5.5159 |
37 |
37 |
28 |
31 |
30 |
31 |
40 |
7.4 |
100 |
|
6 |
3.0800 |
3.6853 |
46 |
46 |
34 |
39 |
38 |
39 |
50 |
7.9 |
125 |
|
10 |
1.8300 |
2.1897 |
61 |
61 |
46 |
51 |
52 |
53 |
68 |
8.5 |
160 |
|
16 |
1.1500 |
1.3762 |
79 |
79 |
60 |
66 |
69 |
70 |
90 |
9.5 |
225 |
|
25 |
0.7270 |
0.8702 |
101 |
101 |
78 |
86 |
92 |
94 |
119 |
11.1 |
330 |
|
35 |
0.5240 |
0.6274 |
121 |
121 |
94 |
104 |
113 |
116 |
147 |
12.1 |
425 |
|
50 |
0.3870 |
0.4637 |
143 |
143 |
114 |
124 |
138 |
142 |
178 |
13.7 |
560 |
|
70 |
0.2680 |
0.3217 |
175 |
175 |
141 |
152 |
175 |
180 |
225 |
15.3 |
770 |
|
95 |
0.1930 |
0.2324 |
209 |
209 |
172 |
185 |
216 |
223 |
276 |
17.5 |
1045 |
|
120 |
0.1530 |
0.1850 |
236 |
237 |
197 |
211 |
251 |
258 |
320 |
18.8 |
1285 |
|
150 |
0.1240 |
0.1508 |
265 |
266 |
224 |
238 |
289 |
298 |
367 |
20.9 |
1580 |
|
185 |
0.0991 |
0.1216 |
300 |
300 |
256 |
272 |
335 |
345 |
423 |
23.2 |
1970 |
|
240 |
0.0754 |
0.0942 |
346 |
346 |
300 |
318 |
398 |
410 |
502 |
26.1 |
2555 |
|
300 |
0.0601 |
0.0769 |
389 |
389 |
341 |
362 |
460 |
474 |
581 |
29.1 |
3165 |
|
400 |
0.0470 |
0.0625 |
437 |
437 |
389 |
409 |
532 |
548 |
674 |
32.3 |
4050 |
|
500 |
0.0366 |
0.0515 |
490 |
490 |
442 |
473 |
614 |
632 |
785 |
36.3 |
5190 |
|
630 |
0.0283 |
0.0433 |
544 |
548 |
496 |
537 |
700 |
722 |
910 |
40.1 |
6520 |
|
800 |
0.0221 |
0.0374 |
596 |
596 |
549 |
600 |
787 |
812 |
1042 |
44.0 |
8310 |
|
1000 |
0.0176 |
0.0333 |
652 |
655 |
608 |
680 |
909 |
941 |
1229 |
52.8 |
10465 |
0.6/1 kV AL / PVC / PVC Single-core cables, PVC insulated, unarmoured with aluminum conductor IEC 60502-1
|
Nominal cross sectional area |
ELECTRICAL DATA |
DIMENSIONS AND WEIGHTS |
|||||||||
|
Max. Conductor Resistance |
Continuous Current Ratings |
Approx. overall diameter |
Approx. overall weight |
||||||||
|
DC at 20 °C |
AC at 70 °C |
Buried direct in ground |
In buried ducts |
In free air |
|||||||
|
mm² |
Ω / km |
Ω / km |
(a) |
(b) |
(c) |
(d) |
(e) |
(f) |
(g) |
||
|
A |
A |
A |
A |
A |
A |
A |
mm |
kg / km |
|||
|
10 |
3.0800 |
3.7007 |
48 |
49 |
36 |
41 |
41 |
42 |
54 |
8.5 |
100 |
|
16 |
1.9100 |
2.2950 |
61 |
61 |
46 |
51 |
53 |
55 |
70 |
9.5 |
130 |
|
25 |
1.2000 |
1.4420 |
78 |
78 |
61 |
67 |
71 |
73 |
93 |
11.1 |
180 |
|
35 |
0.8680 |
1.0432 |
94 |
94 |
73 |
80 |
88 |
90 |
114 |
12.1 |
215 |
|
50 |
0.6410 |
0.7706 |
111 |
111 |
88 |
96 |
107 |
110 |
138 |
13.7 |
275 |
|
70 |
0.4430 |
0.5329 |
136 |
136 |
110 |
118 |
136 |
140 |
174 |
15.3 |
350 |
|
95 |
0.3200 |
0.3854 |
162 |
163 |
133 |
143 |
168 |
173 |
214 |
17.5 |
470 |
|
120 |
0.2530 |
0.3052 |
184 |
185 |
153 |
164 |
195 |
201 |
249 |
18.8 |
555 |
|
150 |
0.2060 |
0.2490 |
206 |
207 |
174 |
185 |
225 |
232 |
285 |
20.9 |
680 |
|
185 |
0.1640 |
0.1989 |
235 |
234 |
200 |
212 |
262 |
270 |
329 |
23.2 |
845 |
|
240 |
0.1250 |
0.1527 |
272 |
272 |
235 |
248 |
313 |
322 |
392 |
26.1 |
1075 |
|
300 |
0.1000 |
0.1233 |
307 |
307 |
270 |
283 |
363 |
375 |
454 |
29.1 |
1330 |
|
400 |
0.0778 |
0.0975 |
350 |
350 |
311 |
327 |
426 |
439 |
531 |
32.3 |
1665 |
|
500 |
0.0605 |
0.0779 |
398 |
399 |
359 |
378 |
499 |
514 |
625 |
36.3 |
2095 |
|
630 |
0.0469 |
0.0630 |
451 |
451 |
411 |
435 |
580 |
598 |
733 |
40.1 |
2595 |
|
800 |
0.0367 |
0.0524 |
503 |
503 |
464 |
494 |
665 |
686 |
852 |
44.1 |
3220 |
|
1000 |
0.0291 |
0.0450 |
561 |
563 |
523 |
569 |
782 |
809 |
1022 |
52.8 |
4080 |
