Single-Core Non-sheathed Cables, with Solid, Stranded or Flexible Copper Conductors and PVC Insulated
APPLICATIONS
Suitable for fixed and protected installations in a metallic, non-metallic or embedded conduits, ducts or trunks or similar closed systems. It can be used in/on lighting fittings, switch and control devices, control panels, inside appliances and similar applications,
APPLICABLE STANDARDS
PVC insulated, single-core, non-sheathed cables are designed and tested to meet or exceed the requirements of IEC 60227-3 and BS EN 50525-2-31(1) standards.
However,can also supply a range of alternative designs to meet customer-specified requirements.
Note (1): BS EN 50525-2-31:2011 standard for Single core non-sheathed cables with thermoplastic PVC insulation rated 450/750 V (U0/U) replaces BS 6004:2000 standard.
CONDUCTOR CONSTRUCTION
Conductor
Plain annealed solid (Class 1), stranded (Class 2) or flexible (Class 5) circular copper conductor.
Insulation
Extruded layer of Polyvinyl chloride (PVC) compound.
Core Identification
In addition to the standard core identification colours, other colours are available on request
450/750 V CU/PVC INDOOR WIRES Single-core non-sheathed cables, PVC insulated with copper conductor IEC 60227-3, BS EN 50525-2-31
|
Nominal cross sectional area |
ELECTRICAL DATA |
DIMENSIONS AND WEIGHTS |
|||||||||
|
Max. Conductor Resistance |
Continuous Current Ratings (@ 40° C) |
Approx. overall diameter |
Approx. overall weight |
||||||||
|
DC at 20 °C |
AC at 70 °C |
2 loaded conductors (Single-Phase circuit) |
3 loaded conductors (Three-Phase circuit) |
||||||||
|
mm² |
Ω / km |
Ω / km |
(a) |
(b) |
(c) |
(d) |
(e) |
(f) |
(g) |
||
|
A |
A |
A |
A |
A |
A |
A |
mm |
kg / km |
|||
|

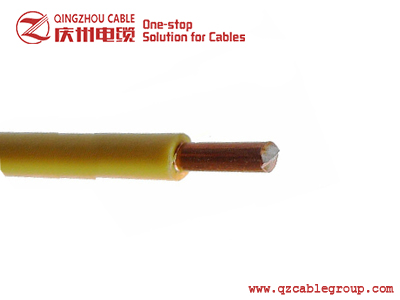

a. Solid Conductors |
|||||||||||
|
1.5 |
12.1000 |
14.4777 |
13 |
15 |
– – – – – |
2.8 |
25 |
||||
|
2.5 |
7.4100 |
8.8661 |
17 |
21 |
– – – – – |
3.4 |
35 |
||||
|
4 |
4.6100 |
5.5159 |
23 |
28 |
– – – – – |
3.9 |
50 |
||||
|
6 |
3.0800 |
3.6853 |
30 |
36 |
– – – – – |
4.4 |
70 |
||||
|
10 |
1.8300 |
2.1897 |
40 |
50 |
– – – – – |
5.6 |
115 |
||||
|
|
|
|
|
|

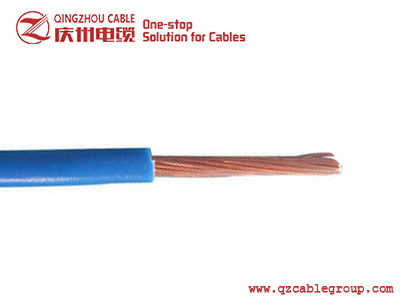

b. Stranded Conductors |
|
|
||||
|
1.5 |
12.1000 |
14.4777 |
13 |
15 |
– |
– |
– |
– |
– |
3.0 |
25 |
|
2.5 |
7.4100 |
8.8661 |
17 |
21 |
– |
– |
– |
– |
– |
3.6 |
35 |
|
4 |
4.6100 |
5.5159 |
23 |
28 |
– |
– |
– |
– |
– |
4.2 |
55 |
|
6 |
3.0800 |
3.6853 |
30 |
36 |
– |
– |
– |
– |
– |
4.7 |
70 |
|
10 |
1.8300 |
2.1898 |
40 |
50 |
– |
– |
– |
– |
– |
5.7 |
110 |
|
16 |
1.1500 |
1.3763 |
53 |
66 |
– |
– |
– |
– |
– |
6.7 |
170 |
|
25 |
0.7270 |
0.8703 |
70 |
88 |
114 |
96 |
127 |
99 |
113 |
8.3 |
260 |
|
35 |
0.5240 |
0.6276 |
86 |
109 |
141 |
119 |
157 |
124 |
141 |
9.3 |
350 |
|
50 |
0.3870 |
0.4639 |
103 |
131 |
170 |
145 |
190 |
151 |
171 |
10.9 |
475 |
|
70 |
0.2680 |
0.3220 |
131 |
167 |
218 |
188 |
244 |
196 |
221 |
12.5 |
675 |
|
95 |
0.1930 |
0.2328 |
158 |
202 |
264 |
230 |
297 |
239 |
270 |
14.5 |
925 |
|
120 |
0.1530 |
0.1856 |
183 |
234 |
306 |
268 |
344 |
279 |
315 |
15.8 |
1160 |
|
150 |
0.1240 |
0.1514 |
209 |
– |
353 |
310 |
397 |
323 |
364 |
17.7 |
1425 |
|
185 |
0.0991 |
0.1224 |
237 |
– |
403 |
356 |
453 |
371 |
417 |
19.8 |
1785 |
|
240 |
0.0754 |
0.0952 |
279 |
– |
475 |
422 |
535 |
441 |
495 |
22.5 |
2335 |
|
300 |
0.0601 |
0.0780 |
319 |
– |
547 |
488 |
617 |
510 |
573 |
25.3 |
2905 |
|
400 |
0.0471 |
0.0638 |
– |
– |
656 |
570 |
741 |
599 |
691 |
28.3 |
3745 |
|
500 |
0.0366 |
0.0531 |
– |
– |
755 |
651 |
854 |
686 |
800 |
32.1 |
4830 |
|
630 |
0.0283 |
0.0450 |
– |
– |
874 |
743 |
990 |
787 |
930 |
35.7 |
6105 |
|

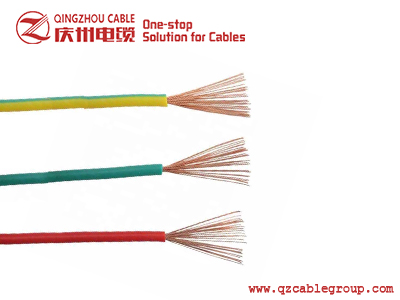

c. Flexible Conductors |
|||||||||||
|
1.5 |
13.3000 |
15.9135 |
13 |
15 |
– |
– |
– |
– |
– |
3.0 |
25 |
|
2.5 |
7.9800 |
9.5481 |
17 |
21 |
– |
– |
– |
– |
– |
3.7 |
35 |
|
4 |
4.9500 |
5.9227 |
23 |
28 |
– |
– |
– |
– |
– |
4.1 |
50 |
|
6 |
3.3000 |
3.9485 |
30 |
36 |
– |
– |
– |
– |
– |
4.6 |
70 |
|
10 |
1.9100 |
2.2855 |
40 |
50 |
– |
– |
– |
– |
– |
6.0 |
120 |
|
16 |
1.2100 |
1.4480 |
53 |
66 |
– |
– |
– |
– |
– |
7.6 |
185 |
|
25 |
0.7800 |
0.9337 |
70 |
88 |
114 |
96 |
127 |
99 |
113 |
9.5 |
285 |
|
35 |
0.5540 |
0.6635 |
86 |
109 |
141 |
119 |
157 |
124 |
141 |
11.0 |
385 |
|
50 |
0.3860 |
0.4628 |
103 |
131 |
170 |
145 |
190 |
151 |
171 |
12.6 |
550 |
|
70 |
0.2720 |
0.3269 |
131 |
167 |
218 |
188 |
244 |
196 |
221 |
14.6 |
740 |
|
95 |
0.2060 |
0.2484 |
158 |
202 |
264 |
230 |
297 |
239 |
270 |
17.0 |
1000 |
|
120 |
0.1610 |
0.1952 |
183 |
234 |
306 |
268 |
344 |
279 |
315 |
18.9 |
1255 |
|
150 |
0.1290 |
0.1575 |
209 |
– |
353 |
310 |
397 |
323 |
364 |
21.2 |
1565 |
|
185 |
0.1060 |
0.1306 |
237 |
– |
403 |
356 |
453 |
371 |
417 |
23.4 |
1915 |
|
240 |
0.0801 |
0.1008 |
279 |
– |
475 |
422 |
535 |
441 |
495 |
26.9 |
2515 |
