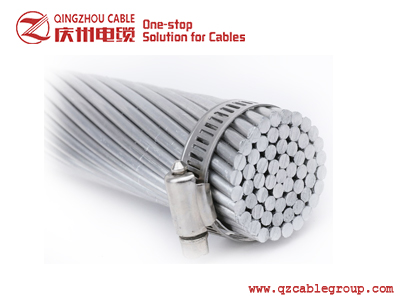

AAC 1350 CONDUCTOR

AAC 1350 CONDUCTOR

AAC conductor is also known as aluminium stranded conductor. It is manufactured from electrolytic-ally refined aluminium, with a minimum purity of 99.7%.

LEAVE MESSAGE
SEND E-MAIL

APPLICATION:

AAC – All Aluminum Conductor is for stranded 1350 aluminum conductors and is primarily used for overhead transmission and distribution services, where strength of standard ACSR cables is not required. Class AA for bare conductors used in overhead lines. Class A for conductors to be covered with weather- resistant materials and for bare conductors where greater flexibility is required.

CONDUCTORS

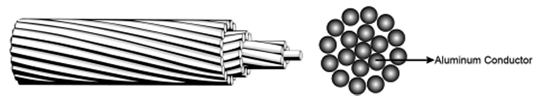

Concentric lay stranded conductor consisting of Aluminum Alloy 1350-H19 wires. AAC is available in both single layer and multi-layer constructions.

AAC 1350 CONDUCTOR

STANDARDS:

1.American Standard&Canadian national standards——ASTM B-230 ASTM B-231 CSA C49

2.British Standards——BS EN 50182/BS 215

3.German Standards——DIN 48201-5

4.International Electrotechnical Commission International Standards&China national standards——IEC 61089 GB/T 1179

5.Australian/New Zealand Standards——AS/NZS 1531-91

6.Russian National Standard——GOST 839-80

American Standard&Canadian national standards——ASTM B-230 ASTM B-231 CSA C49

Code Nominal Area Stranding Overall Diameter Weight Rated Strength Electrical Resistance Current Rating*
  AWG&MCM mm^2 No.×mm mm kg/km KN Ω/Km A
Peachbell 6 13.3 7/1.56 4.68 36.6 2.53 2.1477 75
Rose 4 21.1 7/1.96 5.88 58.2 3.91 1.3606 99
Iris 2 33.6 7/2.47 7.41 92.6 5.99 0.8567 132
Pansy 1 42.4 7/2.78 8.34 116.6 7.3 0.6763 153
Poppy 1/0 53.5 7/3.12 9.36 147.2 8.84 0.5369 176
Aster 2/0 67.4 7/3.50 10.5 185.7 11.1 0.4267 203
Phlox 3/0 85 7/3.93 11.79 233.9 13.5 0.3384 234
Oxlip 4/0 107.2 7/4.42 13.26 295.2 17 0.2675 270
Valerian 250 126.7 19/2.91 14.55 348.6 20.7 0.2274 299
Sneezewort 250 126.7 7/4.80 14.4 348.8 20.1 0.2269 299
Laurel 266.8 135.2 19/3.01 15.05 372.2 22.1 0.2125 312
Daisy 266.8 135.2 7/4.96 14.88 372.3 21.4 0.2125 311
Peony 300 152 19/3.19 15.95 418.3 24.3 0.1892 335
Tulip 336.4 170.5 19/3.38 16.9 469.5 27.3 0.1686 359
Daffodil 350 177.3 19/3.45 17.25 487.9 28.4 0.1618 369
Canna 397.5 201.4 19/3.67 18.35 554.9 31.6 0.143 397
Goldentuft 450 228 19/3.91 19.55 627.6 35 0.126 429
Syringa 477 241.7 37/2.88 20.16 664.8 38.6 0.1192 444
Cosmos 477 241.7 19/4.02 20.1 664.8 37 0.1192 444
Hyacinth 500 253.3 37/2.95 20.65 696.8 40.5 0.1136 458
Zinnia 500 253.3 19/4.12 20.6 697.1 38.9 0.1134 458
Dahlia 556.5 282 19/4.35 21.75 775.8 43.3 0.1018 489
Mistletoe 556.5 282 37/3.12 21.84 775.7 44.3 0.1016 490
Meadowsweet 600 304 37/3.23 22.61 836.3 47.5 0.0948 511
Orchid 636 322.3 37/3.33 23.31 886.9 50.4 0.0892 530
Heuchera 650 329.4 37/3.37 23.59 907.4 51.7 0.0871 538
Flag 700 354.7 61/2.72 24.48 975.8 57.1 0.0811 561
Varbena 700 354.7 37/3.49 24.43 975.7 55.4 0.0812 561
Nasturtium 715.5 362.6 61/2.75 24.75 998.5 58.4 0.0793 569
Violet 715.5 362.6 37/3.53 24.71 998.5 56.7 0.0794 568
Cattail 750 380 61/2.82 25.38 1046 60.3 0.0754 587
Petunia 750 380 37/3.62 25.34 1046 58.6 0.0755 586
Lilac 795 402.8 61/2.90 26.1 1110 63.8 0.0713 607
Arbutus 795 402.8 37/3.72 26.04 1109 61.8 0.0715 605
Snapdragon 900 456 61/3.09 27.81 1256 70.8 0.0628 654
Cockscomb 900 456 37/3.96 27.72 1256 68.4 0.0631 652
Goldenrod 954 483.4 61/3.18 28.62 1331 75 0.0593 677
Magnolia 954 483.4 37/4.08 28.56 1331 72.6 0.0594 676
Camellia 1000 506.7 61/3.25 29.25 1394 78.3 0.0568 695
Hawkweed 1000 506.7 37/4.18 29.26 1395 76.2 0.0566 696
Larkspur 1033.5 523.7 61/3.31 29.79 1442 81.3 0.0547 710
Bluebell 1033.5 523.7 37/4.25 29.75 1441 78.8 0.0547 710
Marigold 1113 564 61/3.43 30.87 1553 87.3 0.051 740
Hawthorn 1192.5 604.2 61/3.55 31.95 1662 93.5 0.0476 771
Narsissus 1272 644.5 61/3.67 33.03 1774 98.1 0.0445 802
Columbine 1351 694.8 61/3.78 34.02 1884 104 0.042 829
Carnation 1431 725.1 61/3.89 35.01 1997 108 0.0396 858
Gladiolus 1510.5 765.4 61/4.00 36 2108 114 0.0375 885
Coreopsis 1590 805.7 61/4.10 36.9 2216 120 0.0357 911
Jassamine 1750 886.7 61/4.30 38.7 2442 132 0.0324 962
Cowslip 2000 1013 91/3.77 41.47 2787 153 0.0286 1032
Sagebrush 2250 1140 91/3.99 43.89 3166 167 0.0255 1099
Lupine 2500 1267 91/4.21 46.31 3519 186 0.0229 1163
Bitterrot 2750 1393 91/4.42 48.62 3872 205 0.0208 1223
Trillium 3000 1520 127/3.90 50.7 4226 223 0.0193 1271
Bluebonnet 3500 1773 127/4.22 54.86 4977 261 0.0165 1373
MORE

British Standards——BS EN 50182/BS 215

Code Nominal Area Stranding Overall Diameter Weight Rated Strength Electrical Resistance Current Rating*
Nominal Teorical
  mm^2 mm^2 No.×mm mm kg/km KN Ω/Km A
Midge 22 23.33 7/2.06 6.18 64 3.99 1.227 106
Gnat 25 26.8 7/2.21 6.6 73.8 4.83 1.0643 122
Mosquito 35 37.0 7/2.59 7.8 102.1 6.27 0.7749 141
Ladybird 40 42.8 7/2.79 8.4 117.9 7.28 0.6678 157
Ant 50 52.83 7/3.10 9.3 145 8.28 0.5419 175
Fly 60 63.55 7/3.40 10.2 174 9.9 0.4505 196
Bluebottle 70 73.7 7/3.66 11.0 202 11.34 0.3881 215
Earwing 75 78.5 7/3.78 11.4 215 11.94 0.3644 232
Grasshopper 80 84.1 7/3.91 11.7 230 12.78 0.3406 249
Clegg 90 95.6 7/4.17 12.5 262 14.53 0.2944 253
Wasp 100 106 7/4.39 13.17 290 16.00 0.2702 268
Beetle 100 106.0 19/2.67 13.4 293 17.42 0.2704 260
Bee 125 132.0 7/4.90 14.7 361 19.44 0.2169 325
Cricket 150 157.9 7/5.36 16.1 432 23.85 0.1818 345
Hornet 150 157.6 19/3.25 16.25 434 25.7 0.1825 342
Caterpillar 175 186 19/3.53 17.7 512 28.63 0.1547 399
Chater 200 213.2 19/3.78 18.9 587 35.4 0.1349 412
Spider 225 236.9 19/3.99 20.0 652 36.01 0.1211 462
Cockroach 250 265.7 19/4.22 21.1 731 40.4 0.1083 471
Butterfly 300 322.7 19/4.65 23.25 888 48.75 0.08916 530
Moth 350 373.3 19/5.00 25.0 1027 56.37 0.07711 562
Drone 350 373.3 37/3.58 25.1 1029 57.45 0.07741 560
Locust 400 428.5 19/5.36 26.8 1179 64.73 0.06710 580
Centipede 400 415.2 37/3.78 26.46 1145 63.1 0.06944 616
Maybug 475 486,1 37/4,09 28,6 1342 74.01 0,05900 740
Scorpion 500 529,8 37/4,27 29,9 1460 79.98 0,05400 887
Cicada 600 628,3 37/4,65 32,6 1733 94.95 0,04500 1056
Tarantula 750 794.6 37/5.23 36.6 2191 120.1 0.03627 1320
MORE

German Standards——DIN 48201-5

Nominal Area Stranding Overall Diameter Weight Rated Strength Electrical Resistance Current Rating*
Nominal Teorical
mm^2 mm^2 No.×mm mm kg/km KN Ω/Km A
16 15.89 7/1.70 5.1 43 2.84 1.8022 83
25 24.25 7/2.10 6.3 66 4.17 1.181 108
35 34.36 7/2.50 7.5 94 5.78 0.8333 134
50 49.48 7/3.00 9 135 7.94 0.5787 168
50 48.35 19/1.80 9 133 8.45 0.5951 166
70 65.81 19/2.10 10.5 181 11.32 0.4372 200
95 93.27 19/2.50 12.5 256 15.68 0.3085 248
120 116.99 19/2.80 14 322 18.78 0.2459 285
150 147.11 37/2.25 15.8 406 25.3 0.196 328
185 181.62 37/2.50 17.5 500 30.54 0.1588 373
240 242.54 61/2.25 20.3 670 39.51 0.1191 445
300 299.43 61/2.50 22.5 827 47.7 0.0965 506
400 400.14 61/2.89 26 1104 60.86 0.0722 602
500 499.83 61/3.23 29.1 1379 74.67 0.0578 688
625 626.2 91/2.96 32.6 1732 95.25 0.0462 786
800 802.09 91/3.35 36.9 2218 118.39 0.036 907
1000 999.71 91/3.74 41.1 2767 145.76 0.0289 1026
MORE

International Electrotechnical Commission International Standards&China national standards——IEC 61089 GB/T 1179

Code Nominal Area Stranding Overall Diameter Weight Rated Strength Electrical Resistance Current Rating*
mm^2 No.×mm mm kg/km KN Ω/Km A
10 10 7/1.35 4.05 27.4 1.95 2.8633 62
16 16 7/1.71 5.13 43.8 3.04 1.7896 84
25 25 7/2.13 6.39 68.4 4.5 1.1453 110
40 40 7/2.70 8.1 109.4 6.8 0.7158 147
63 63 7/3.39 10.17 172.3 10.39 0.4545 195
100 100 19/2.59 12.95 274.8 17 0.2877 259
125 125 19/2.89 14.45 343.6 21.25 0.2302 297
160 160 19/3.27 16.35 439.8 26.4 0.1798 345
200 200 19/3.66 18.3 549.7 32 0.1439 396
250 250 19/4.09 20.45 687.1 40 0.1151 454
315 315 37/3.29 23.03 867.9 51.97 0.0916 522
400 400 37/3.71 25.97 1102 64 0.0721 603
450 450 37/3.94 27.58 1239.8 72 0.0641 647
500 500 37/4.15 29.05 1377.6 80 0.0577 688
560 560 37/4.39 30.73 1542.9 89.6 0.0515 736
630 630 61/3.63 32.67 1738.3 100.8 0.0458 789
710 710 61/3.85 34.65 1959.1 113.6 0.0407 845
800 800 61/4.09 36.81 2207.4 128 0.0361 905
900 900 61/4.33 38.97 2483.3 144 0.0321 967
1000 1000 61/4.57 41.13 2759.2 160 0.0289 1026
1120 1120 91/3.96 43.56 3093.5 179.2 0.0258 1091
1250 1250 91/4.18 45.98 3452.6 200 0.0231 1157
1400 1400 91/4.43 48.73 3866.9 224 0.0207 1226
1500 1500 91/4.58 50.38 4143.1 240 0.0193 1270
MORE

Australian/New Zealand Standards——AS/NZS 1531-91

Conductor codename Stranding and wire diameter Nominal overall diameter Cross- sectional area Approximate mass Breaking load Modulus of elasticity Coefficient of linear expansion DC resist. at 20°C AC resist. at 50Hz
  no/mm mm mm2 kg/km kN GPa x 10–6/°C Ω/km Ω/km
Leo 7/2.50 7.5 34.4 94.3 5.71 65 23 0.833 1.02
Leonids 7/2.75 8.25 41.6 113 6.72 65 23 0.689 0.842
Libra 7/3.00 9 49.5 135 7.98 65 23 0.579 0.707
Mars 7/3.75 11.3 77.3 211 11.8 65 23 0.37 0.452
Mercury 7/4.50 13.5 111 304 16.9 65 23 0.258 0.315
Moon 7/4.75 14.3 124 339 18.9 65 23 0.232 0.284
Neptune 19/3.25 16.3 158 433 24.7 65 23 0.183 0.224
Orion 19/3.50 17.5 183 503 28.7 65 23 0.157 0.192
Pluto 19/3.75 18.8 210 576 31.9 65 23 0.137 0.168
Saturn 37/3.00 21 262 721 42.2 64 23 0.11 0.135
Sirius 37/3.25 22.8 307 845 48.2 64 23 0.094 0.116
Taurus 19/4.75 23.8 337 924 51.3 65 23 0.0857 0.105
Triton 37/3.75 26.3 409 1120 62.2 64 23 0.0706 0.0872
Uranus 61/3.25 29.3 506 1400 75.2 64 23 0.0572 0.071
Ursula 61/3.50 31.5 587 1620 87.3 64 23 0.0493 0.0616
Venus 61/3.75 33.8 673 1860 97.2 64 23 0.0429 0.0539
MORE

Russian National Standard——GOST 839-80 Type ACP Wire, Greased All Aluminium Conductor

Nominal Corss-section Number of Wires Wire Diameter Calculated Cross-section Overall Diameter D.C. Resistance at 20 Min. Breaking Load Conductor Weight Grease Weight
mm2   mm mm2 mm Ω/km   kg/km kg/km
10 7 1,35 10,0 4,05 2,8631 1950 27,4 –
16 7 1,70 15,9 5,10 1,8007 3021 43,0 0,5
25 7 2,13 24,9 6,40 1,1498 4500 68,0 0,5
35 7 2,50 34,3 7,50 0,8347 5913 94,0 0,5
40 7 2,70 40,0 8,09 0,7157 6800 109,4 –
50 7 3,00 49,5 9,00 0,5784 8198 135,0 0,5
63 7 3,39 63,0 10,16 0,4544 10390 172,3 –
70 7 3,55 69,3 10,70 0,4131 11288 189,0 1,0
95 7 4,10 92,4 12,30 0,3114 14784 252,0 1,0
100 19 2,59 100,0 12,94 0,2877 17000 274,9 –
120 19 2,80 117,0 14,00 0,2459 19890 321,0 16
125 19 2,89 125,0 14,47 0,2301 21250 343,6 –
150 19 3,15 148,0 15,80 0,1944 24420 406,0 20
160 19 3,27 160,0 16,37 0,1798 26400 439,8 –
185 19 3,50 182,8 17,50 0,1574 29832 502,0 25
200 19 3,66 200,0 18,30 0,1438 32000 549,7 –
240 19 4,00 238,7 20,00 0,1205 38192 655,0 33
250 19 4,09 250,0 20,47 0,1150 40000 687,1 –
300 37 3,15 288,3 22,10 0,1000 47569 794,0 54
315 37 3,29 315,0 23,05 0,0915 51970 867,5 –
350 37 3,45 345,8 24,20 0,0833 57057 952,0 65
400 37 3,66 389,2 25,60 0,0740 63420 1072,0 73
450 37 3,90 449,1 27,30 0,0642 71856 1206,0 84
500 37 4,15 500,4 29,10 0,0576 80000 1378,0 94
550 61 3,37 544,0 30,30 0,0529 89760 1500,0 117
560 37 4,39 560,0 30,73 0,0531 89600 1542,2 –
600 61 3,50 586,8 31,50 0,0491 95632 1618,0 126
630 61 3,63 630,0 32,64 0,0458 100800 1738,4 –
650 61 3,66 641,7 32,90 0,0450 104575 1771,0 138
700 61 3,80 691,7 34,20 0,0417 112725 1902,0 149
710 61 3,85 710,0 34,65 0,0406 113600 1959,2 –
750 61 3,95 747,4 35,60 0,0386 119584 2062,0 161
MORE

Russian National Standard——GOST 839-80 AAC Conductor, Type a Wire, All Aluminium Conductor

Nominal Corss-section Number of Wires Wire Diameter Calculated Cross-section Overall Diameter D.C. Resistance at 20 Min. Breaking Load Conductor Weight
mm2   mm mm2 mm Ω/km   kg/km
10 7 1,35 10,0 4,05 2,8631 1950 27,4
16 7 1,70 15,9 5,10 1,8007 3021 43,0
25 7 2,13 24,9 6,40 1,1498 4500 68,0
35 7 2,50 34,3 7,50 0,8347 5913 94,0
40 7 2,70 40,0 8,09 0,7157 6800 109,4
50 7 3,00 49,5 9,00 0,5784 8198 135,0
63 7 3,39 63,0 10,16 0,4544 10390 172,3
70 7 3,55 69,3 10,70 0,4131 11288 189,0
95 7 4,10 92,4 12,30 0,3114 14784 252,0
100 19 2,59 100,0 12,94 0,2877 17000 274,9
120 19 2,80 117,0 14,00 0,2459 19890 321,0
125 19 2,89 125,0 14,47 0,2301 21250 343,6
150 19 3,15 148,0 15,80 0,1944 24420 406,0
160 19 3,27 160,0 16,37 0,1798 26400 439,8
185 19 3,50 182,8 17,50 0,1574 29832 502,0
200 19 3,66 200,0 18,30 0,1438 32000 549,7
240 19 4,00 238,7 20,00 0,1205 38192 655,0
250 19 4,09 250,0 20,47 0,1150 40000 687,1
300 37 3,15 288,3 22,10 0,1000 47569 794,0
315 37 3,29 315,0 23,05 0,0915 51970 867,5
350 37 3,45 345,8 24,20 0,0833 57057 952,0
400 37 3,66 389,2 25,60 0,0740 63420 1072,0
450 37 3,90 449,1 27,30 0,0642 71856 1206,0
500 37 4,15 500,4 29,10 0,0576 80000 1378,0
550 61 3,37 544,0 30,30 0,0529 89760 1500,0
560 37 4,39 560,0 30,73 0,0531 89600 1542,2
600 61 3,50 586,8 31,50 0,0491 95632 1618,0
630 61 3,63 630,0 32,64 0,0458 100800 1738,4
650 61 3,66 641,7 32,90 0,0450 104575 1771,0
700 61 3,80 691,7 34,20 0,0417 112725 1902,0
710 61 3,85 710,0 34,65 0,0406 113600 1959,2
750 61 3,95 747,4 35,60 0,0386 119584 2062,0
MORE

LEAVE MESSAGE

Please Leave you want to know message! We will respond to your inquiry within 24 hours!

Related Product

CONDUCTOR FITTING

CONDUCTOR FITTING

ACSR/AW/AS CONDUCTOR

ACSR/AW/AS CONDUCTOR

AAAC 1120 CONDUCTOR

AAAC 1120 CONDUCTOR

ACAR CONDUCTOR

ACAR CONDUCTOR

© 2021 Henan Qingzhou Cable All Rights Reserved. |Sitemap
