ACSR Conductor NF-C 34120
Henan Qingzhou cable group is a professional aluminum cable manufacturer from China, Meet your kinds of requirement aluminum wire cable With over 26 years production experience and 10 years export experience, factory price without any third party.
Application
ACSR Conductor is applied for large span overhead transmission and distribution lines or overhead ground wire of lines. Temperature for continuous use can be up to 75 ℃.
Structure

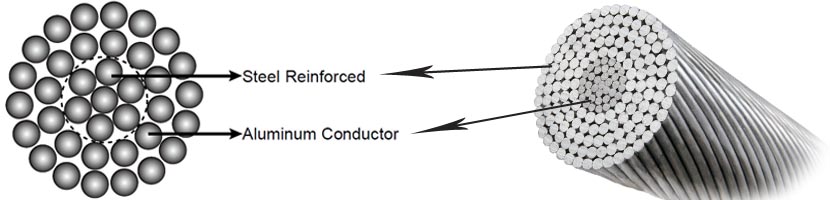

Aluminum-steel core consists of one or more concentrically stranded galvanized steel wires in the centre, and concentrically stranded aluminum wires in external layers, Small weight of aluminum and its good conductivity are combined with high resistance to elongation of steel.
|
CODE |
SECTION mm2 |
STRANDING No. x mm |
OVERALL DIAMETER mm |
TENSILE S. STEEL HBAR. |
RATED STRENGTH kN |
ELECTRICAL RESISTANCE 20ºC. ohms/km |
CONDUCTOR WEIGHT kg/km |
GREASE WEIGHT g/m |
|||||||
|
Al |
Steel |
Total |
Al |
Steel |
Core |
Total |
Al |
Steel |
Total |
Outside layer greased |
Outside layer ungreased |
||||
|
CANNA 37.7 |
28.27 |
9.42 |
37.69 |
9 x 2.00 |
3 x 2.00 |
– |
8.30 |
117.60 |
1.625 |
1.020 |
80 |
155 |
75 |
6 |
2 |
|
CANNA 59.7 |
37.7 |
21.99 |
59.69 |
12 x 2.00 |
7 x 2.00 |
6 |
10 |
117.60 |
3.27 |
0.766 |
103 |
276 |
173 |
7 |
3 |
|
CANNA 75.5 |
47.71 |
27.83 |
75.54 |
12 x 2.25 |
7 x 2.25 |
6.75 |
11.25 |
117.60 |
4.115 |
0.605 |
128 |
349 |
220 |
10 |
4 |
|
CANNA 116.2 |
94.25 |
21.99 |
116.24 |
30 x 2.00 |
7 x 2.00 |
6 |
14 |
117.60 |
4.315 |
0.306 |
258 |
432 |
174 |
13 |
7 |
|
CROCUS 116.12 |
94.25 |
21.99 |
116.24 |
30 x 2.00 |
7 x 2.00 |
6 |
14 |
156.80 |
4.93 |
0.306 |
258 |
432 |
174 |
13 |
7 |
|
CANNA 147.1 |
119.28 |
27.83 |
147.11 |
30 x 2.25 |
7 x 2.25 |
6.75 |
15.75 |
117.60 |
5.4 |
0.243 |
327 |
547 |
220 |
18 |
10 |
|
CROCUS 147.1 |
119.28 |
27.83 |
147.11 |
30 x 2.25 |
7 x 2.25 |
6.75 |
15.75 |
156.80 |
6.18 |
0.243 |
327 |
547 |
220 |
18 |
10 |
|
CANNA 181.6 |
147.26 |
34.36 |
181.62 |
30 x 2.50 |
7 x 2.50 |
7.5 |
17.5 |
117.60 |
6.49 |
0.197 |
403 |
675 |
272 |
22 |
12 |
|
CROCUS 181.6 |
147.26 |
34.36 |
181.62 |
30 x 2.50 |
7 x 2.50 |
7.5 |
17.5 |
156.80 |
7.42 |
0.197 |
403 |
675 |
272 |
22 |
12 |
|
CANNA 228 |
184.72 |
43.1 |
227.82 |
30 x 2.80 |
7 x 2.80 |
8.4 |
19.6 |
117.60 |
8.05 |
0.157 |
506 |
848 |
342 |
26 |
15 |
|
CROCUS 228 |
184.72 |
43.1 |
227.82 |
30 x 2.80 |
7 x 2.80 |
8.4 |
19.6 |
156.80 |
9.21 |
0.157 |
506 |
848 |
342 |
26 |
15 |
|
CANNA 288 |
233.8 |
54.55 |
288.35 |
30 x 3.15 |
7 x 3.15 |
9.45 |
22.05 |
117.60 |
9.85 |
0.124 |
642 |
1074 |
432 |
33 |
18 |
|
CROCUS 288 |
233.8 |
54.55 |
288.35 |
30 x 3.15 |
7 x 3.15 |
9.45 |
22.05 |
156.80 |
11.38 |
0.124 |
642 |
1074 |
432 |
33 |
18 |
|
CROCUS 297 |
221.67 |
75.54 |
297.21 |
36 x 2.80 |
19 x 2.25 |
11.25 |
22.45 |
156.8 |
17.72 |
0.1305 |
594 |
624 |
1218 |
35 |
20 |
|
CROCUS 412 |
325.72 |
85.95 |
411.67 |
32 x 3.60 |
19 x 2.40 |
12 |
26.4 |
156.8 |
17.33 |
0.0898 |
676 |
917 |
1593 |
50 |
25 |
|
CROCUS 612 |
507.83 |
104.7 |
611.76 |
66 x 3.13 |
19 x 2.65 |
13.25 |
32.2 |
156.8 |
23.15 |
0.0566 |
824 |
1417 |
2241 |
70 |
40 |
|
CROCUS 865 |
717.33 |
148.06 |
865.39 |
66 x 3.72 |
19 x 3.15 |
15.75 |
38.1 |
156.8 |
31.9 |
0.0405 |
1164 |
2010 |
3174 |
100 |
55 |
|
CROCUS 1185 |
956.666 |
227.82 |
1184.48 |
54 x 2.8 |
37 x 2.80 66 x +3.47 |
19.7 |
44.7 |
156.8 |
48.05 |
0.0303 |
1796 |
2682 |
4478 |
140 |
100 |
