Applications

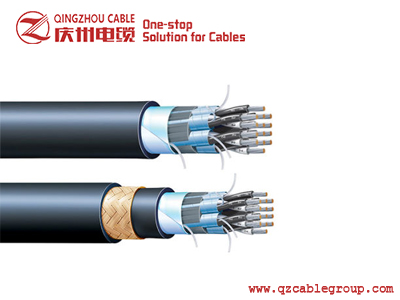

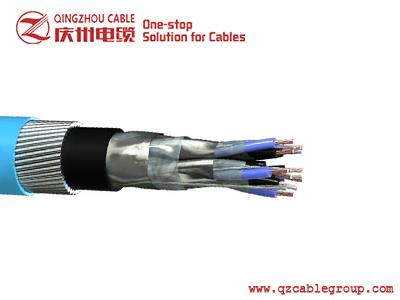

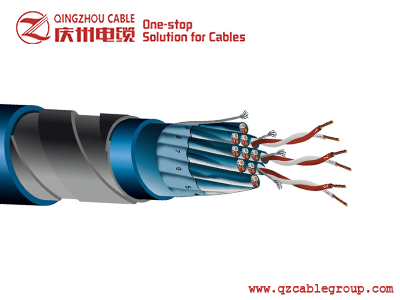

These single pair or triad instrumentation cables are constructed with heat and moisture resistant cross- linked polyethylene (XLPE) with an abrasion, oil, chemical and flame-resistant polyvinyl chloride (PVC), chlorinated polyethylene (CPE) or low smoke, zero halogen (LSZH/XLPO) jacket for use in utility substa- tion or power generation facilities.
They are recomended for indoor or outdoor applica- tions in conduit, duct, cable tray or aerial installations and NEC-compliant for continuous operation at 90°C in wet and dry locations.
Features
1.CONDUCTORS
Class B, soft drawn, bare copper per ASTM B3 and ASTM B8.
2.INSULATION
Heat and moisture resistant, cross-linked polyethylene (XLP) meeting the requirements of NEMA WC57/ICEA S-73-532 and UL 66 & 1277. The insulation is suitable for use in wet or dry locations at a conductor temper- ature not exceeding 90°C for normal operation.
3.CIRCUIT IDENTIfICATION
One black and one white insulated single conductor in each pair with printed pair numbers (black/white/red for triads).
4.PAIR ASSEMBLY
Two insulated conductors twisted with a stranded tinned copper drain wire per ASTM B33 and wrapped with an aluminum foil/mylar shield and an isolation tape.
5.CABLING
Required number of pairs are cabled with non- hygroscopic fillers where necessary to form a round compact core.
6.OVERALL SHIELD/DRAIN WIRE
Helically applied aluminum foil/mylar tape. The drain is a stranded soft-drawn tinned copper per ASTM B33. Optional constructions include:
Corrugated longitudinally-applied .005 or .008 copper shielding
flat helically-applied .005 or .010 copper
Longitunidally-applied copper or aluminum copolymer-bonded shield
Copper braid (specify percentage of coverage for optimum EMI protection)
7.JACKET
Abrasion, oil and chemical resistant and highly flame retardant polyvinyl chloride (PVC), chlorinated poly- ethylene (CPE) or low smoke, zero halogen (LSZH/ XLPO) jacket to meet UL Standard 1277.
Ratings
UL Sunlight Resistant Oil resistant
Optional Constructions Tinned copper conductors flexible stranded conductors PVC/Nylon or EPR insulation
PVC, CPE, LSZH and XLPO jacket compounds 300 volt rating
XLPE insulation / 18 & 16 AWG / CPE jacket / 600 volt
|
Conductor AWG |
Pair/Triad Count |
Conductor Strand Class/ Stranding |
Nominal Insulation Thickness in (mm) |
Nominal Jacket Thickness in (mm) |
Nominal Cable O.D. in (mm) |
Approximate Cable Weight Lbs/Mft (Kg/Km) |
|
18 AWG |
1 pair |
B / 7 |
0.030 (0.8) |
0.045 (1.1) |
0.320 (8.2) |
49 (73) |
|
18 AWG |
2 pair |
B / 7 |
0.030 (0.8) |
0.045 (1.1) |
0.490 (12.5) |
128 (190) |
|
18 AWG |
4 pair |
B / 7 |
0.030 (0.8) |
0.060 (1.5) |
0.680 (17.3) |
190 (283) |
|
18 AWG |
8 pair |
B / 7 |
0.030 (0.8) |
0.060 (1.5) |
0.810 (20.7) |
332 (494) |
|
18 AWG |
12 pair |
B / 7 |
0.030 (0.8) |
0.080 (2.0) |
0.960 (24.5) |
486 (723) |
|
18 AWG |
16 pair |
B / 7 |
0.030 (0.8) |
0.080 (2.0) |
1.090 (27.8) |
605 (900) |
|
18 AWG |
24 pair |
B / 7 |
0.030 (0.8) |
0.080 (2.0) |
1.430 (36.5) |
960 (1428) |
|
18 AWG |
1 triad |
B / 7 |
0.030 (0.8) |
0.045 (1.1) |
0.330 (8.4) |
60 (89) |
|
18 AWG |
2 triad |
B / 7 |
0.030 (0.8) |
0.045 (1.1) |
0.550 (14.0) |
152 (226) |
|
18 AWG |
4 triad |
B / 7 |
0.030 (0.8) |
0.060 (1.5) |
0.720 (18.4) |
261 (388) |
|
18 AWG |
8 triad |
B / 7 |
0.030 (0.8) |
0.080 (2.0) |
0.920 (23.5) |
454 (676) |
|
18 AWG |
12 triad |
B / 7 |
0.030 (0.8) |
0.080 (2.0) |
1.110 (28.3) |
627 (933) |
|
18 AWG |
16 triad |
B / 7 |
0.030 (0.8) |
0.080 (2.0) |
1.150 (29.3) |
771 (1147) |
|
18 AWG |
24 triad |
B / 7 |
0.030 (0.8) |
0.080 (2.0) |
1.530 (39.0) |
1218 (1812) |
|
16 AWG |
1 pair |
B / 7 |
0.030 (0.8) |
0.045 (1.1) |
0.340 (8.7) |
62 (92) |
|
16 AWG |
2 pair |
B / 7 |
0.030 (0.8) |
0.045 (1.1) |
0.540 (13.8) |
153 (228) |
|
16 AWG |
4 pair |
B / 7 |
0.030 (0.8) |
0.060 (1.5) |
0.670 (17.1) |
255 (379) |
|
16 AWG |
8 pair |
B / 7 |
0.030 (0.8) |
0.060 (1.5) |
0.850 (21.7) |
408 (607) |
|
16 AWG |
12 pair |
B / 7 |
0.030 (0.8) |
0.080 (2.0) |
1.060 (27.0) |
610 (908) |
|
16 AWG |
16 pair |
B / 7 |
0.030 (0.8) |
0.080 (2.0) |
1.230 (31.4) |
770 (1146) |
|
16 AWG |
24 pair |
B / 7 |
0.030 (0.8) |
0.080 (2.0) |
1.380 (35.2) |
1175 (1748) |
|
16 AWG |
1 triad |
B / 7 |
0.030 (0.8) |
0.045 (1.1) |
0.370 (9.4) |
78 (116) |
|
16 AWG |
2 triad |
B / 7 |
0.030 (0.8) |
0.060 (1.5) |
0.630 (16.1) |
209 (311) |
|
16 AWG |
4 triad |
B / 7 |
0.030 (0.8) |
0.060 (1.5) |
0.740 (18.9) |
349 (519) |
|
16 AWG |
8 triad |
B / 7 |
0.030 (0.8) |
0.080 (2.0) |
1.030 (26.3) |
575 (856) |
|
16 AWG |
12 triad |
B / 7 |
0.030 (0.8) |
0.080 (2.0) |
1.220 (31.1) |
803 (1195) |
|
16 AWG |
16 triad |
B / 7 |
0.030 (0.8) |
0.080 (2.0) |
1.360 (34.7) |
1010 (1503) |
|
16 AWG |
24 triad |
B / 7 |
0.030 (0.8) |
0.080 (2.0) |
1.590 (40.6) |
1549 (2305) |
