LV cable: cable voltage level up to 1.8/3kV

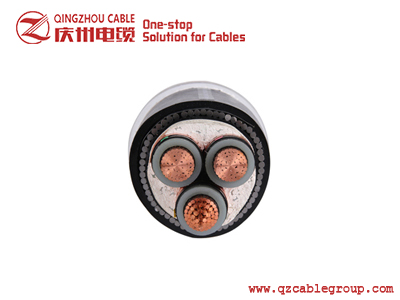

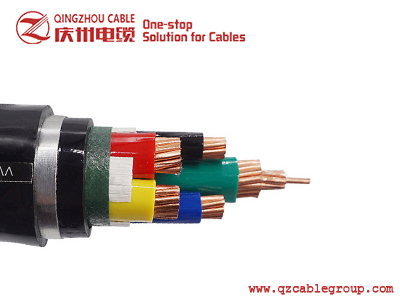

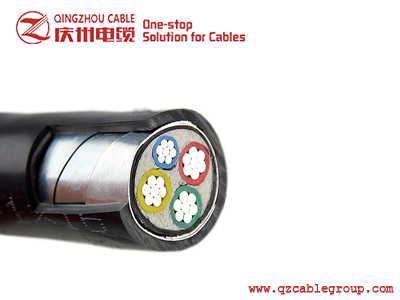

PVC Insulated power Cable
This product is used for power transmission and distribution lines with AC rated voltage of 1.8/3V and below.
Its mechanical and physical properties and electrical performance meet the requirements of national standard GB/T12706- 2008 and international standard IEC60502-2004 “Extruded Insulated Power Cable with Rate Voltage of 1-30KV and Accessories”.
Operating characteristics and electrical performance
Cable laying temperature: ≥0°C
Long-term allowable operating temperature of cable conductor: ≤70°C
Higest working temperature of cable in case of short circuit (the longest lasting time is not over 5s): 160°C
Minimum permissible bending radius: Single core cable: 20D; multi-core cable: 15D (Note: D is actual outer diameter of cable).
AC withstand voltage test of finished cable product
|
Rated voltage (KV) |
0.6/1 |
1.8/3 |
|
Rated voltage (KV) |
3.5 |
6.5 |
|
Duration (min) |
5 |
5 |
Conductor DC resistance meets the requirements of national standard GB/T3956-2008 “Cable Conductor” and international standard IEC60228.
Models, Names and Laying Occasions of XLPE Insulated power Cable
|
Model |
Name |
Laying Occasion |
|
|
Copper core |
Aluminum core |
||
|
VV |
VLV |
PVC insulated and sheathed power cable |
Laid indoors, and in tunnels, pipelines, cable trenches, and flammable and severe corrosion places, and can not bear external mechanical forces. |
|
VY |
VLY |
PVC insulated PE sheathed power cable |
Laid indoors, and in pipelines, cable trenches and severe corrosion places, and cannot bear external mechanical forces |
|
VV22 |
VLV22 |
PVC insulated steel tape armored PVC sheathed power cable |
Laid indoors, and in cable trenches, underground severe corrosion places, and cannot bear tension. |
|
VV23 |
VLV23 |
PVC insulated steel tape armored PE |
Laid indoors, and in cable trenches and underground severe corrosion place, and cannot bear tension. |
|
VV32 |
VLV32 |
PVC insulated thin steel wire armored PVC sheathed power cable |
Laid under ground and in shafts, water and severe corrosion places, and cannot bear high tension. |
|
VV33 |
VLV33 |
PVC insulated thin steel wire armored PVC sheathed power cable |
Laid under ground and in shafts, water and severe corrosion places, and can bear high tension. |
|
VV42 |
VLV42 |
PVC insulated thick steel wire armored PVC sheathed power cable |
Laid under ground and in shafts and severe corrosion places, and can bear high tension. |
|
VV43 |
VLV43 |
PVC insulated thick steel wire armored PE sheathed power cable |
Laid under ground and in shafts and severe corrosion places, and can bear high tension. |
Range of production
|
Number of cores |
0.6/1Kv Cross sectional area (mm2)
|
1.8/3 |
|
Single core 1 |
1.5-100 |
10-1000 |
|
Twin core 2 |
1.5-240 |
10-240 |
|
Triple core 3 |
1.5-300 |
10-300 |
|
Three big cores and one small core 3+1 |
2.5-300 |
10-300 |
|
Fourth core 4 |
2.5-300 |
10-300 |
|
Fifth core 5 |
2.5-300 |
10-300 |
|
Three big cores and two small cores 3+2 |
2.5-300 |
10-300 |
|
Four big cores and one small core 4+1 |
2.5-300 |
10-300 |
0.6/1KV PVC/PVC Power cable (non-armored) VV, VLV
|
Conductor dimensions (mm2) |
Insulation thickness (mm) |
Nonmetallic sheath, unarmored cable |
|||||||||||||||||||
|
Sheath thickness |
Outer diameter (approximate) |
Cable weight (Kg/km) |
|||||||||||||||||||
|
mm |
mm |
Copper core |
Aluminum core |
||||||||||||||||||
|
1C |
2C |
3C |
4C |
5C |
1C |
2C |
3C |
4C |
5C |
1C |
2C |
3C |
4C |
5C |
1C |
2C |
3C |
4C |
5C |
||
|
1.5 |
0.8 |
1.4 |
1.8 |
1.8 |
1.8 |
1.8 |
5.8 |
10.4 |
10.8 |
11.6 |
12.4 |
49 |
131 |
152 |
184 |
215 |
40 |
113 |
124 |
147 |
168 |
|
2.5 |
0.8 |
1.4 |
1.8 |
1.8 |
1.8 |
1.8 |
6.2 |
11.2 |
11.7 |
12.6 |
13.5 |
62 |
159 |
191 |
234 |
277 |
47 |
128 |
144 |
172 |
199 |
|
4 |
1.0 |
1.4 |
1.8 |
1.8 |
1.8 |
1.8 |
7.1 |
12.9 |
13.6 |
14.7 |
15.9 |
86 |
211 |
264 |
330 |
391 |
62 |
161 |
189 |
231 |
266 |
|
6 |
1.0 |
1.4 |
1.8 |
1.8 |
1.8 |
1.8 |
7.6 |
13.9 |
14.7 |
15.9 |
17.3 |
110 |
268 |
334 |
423 |
505 |
73 |
193 |
221 |
273 |
318 |
|
10 |
1.0 |
1.4 |
1.8 |
1.8 |
1.8 |
1.8 |
8.7 |
16.2 |
17.1 |
18.6 |
20.3 |
158 |
380 |
492 |
627 |
754 |
96 |
254 |
303 |
375 |
439 |
|
16 |
1.0 |
1.4 |
1.8 |
1.8 |
1.8 |
1.8 |
9.8 |
18.4 |
19.5 |
21.3 |
23.3 |
224 |
533 |
714 |
905 |
1094 |
124 |
331 |
412 |
502 |
590 |
|
25 |
1.2 |
1.4 |
1.8 |
1.8 |
1.8 |
1.8 |
11.2 |
21.2 |
22.5 |
24.7 |
27.1 |
325 |
759 |
1019 |
1307 |
1592 |
169 |
445 |
547 |
678 |
806 |
|
35 |
1.2 |
1.4 |
1.8 |
1.8 |
1.8 |
1.9 |
12.4 |
23.6 |
21.4 |
27.6 |
30.5 |
429 |
974 |
1313 |
1699 |
2098 |
211 |
533 |
652 |
818 |
997 |
|
50 |
1.4 |
1.4 |
1.8 |
1.8 |
1.9 |
2.1 |
14.0 |
26.8 |
28.0 |
31.6 |
35.2 |
590 |
1265 |
1781 |
2354 |
2929 |
278 |
636 |
837 |
1096 |
1355 |
|
70 |
1.4 |
1.4 |
1.9 |
2.0 |
2.1 |
2.2 |
15.6 |
23.4 |
27.2 |
31.5 |
37.9 |
791 |
1650 |
2393 |
3155 |
3942 |
353 |
770 |
1071 |
1394 |
1740 |
|
95 |
1.6 |
1.5 |
2.0 |
2.1 |
2.2 |
2.4 |
17.9 |
27.2 |
31.4 |
36.6 |
43.0 |
1062 |
2206 |
3205 |
4239 |
5295 |
467 |
1011 |
1412 |
1849 |
2307 |
|
120 |
1.6 |
1.5 |
2.1 |
2.2 |
2.4 |
2.5 |
19.3 |
29.8 |
34.3 |
39.2 |
46.9 |
1306 |
2727 |
3966 |
5244 |
6549 |
555 |
1217 |
1701 |
2224 |
2774 |
|
150 |
1.8 |
1.6 |
2.2 |
2.3 |
2.5 |
2.7 |
21.4 |
32.6 |
37.9 |
43.1 |
52.4 |
1625 |
3374 |
4924 |
6508 |
8155 |
686 |
1486 |
2093 |
2733 |
3437 |
|
185 |
2.0 |
1.7 |
2.4 |
2.5 |
2.7 |
2.9 |
23.7 |
38.6 |
42.3 |
48.2 |
60.7 |
1998 |
4185 |
6062 |
8022 |
10074 |
840 |
1857 |
2571 |
3366 |
4254 |
|
240 |
2.2 |
1.8 |
2.6 |
2.7 |
2.9 |
3.1 |
26.5 |
43.8 |
49.7 |
55.7 |
65.8 |
2565 |
5371 |
7825 |
10335 |
12911 |
1062 |
2351 |
3296 |
4295 |
5361 |
|
300 |
2.4 |
1.9 |
2.7 |
2.9 |
3.1 |
3.3 |
29.3 |
48.8 |
52.8 |
62.3 |
71.4 |
3186 |
6641 |
9696 |
12859 |
16023 |
1306 |
2854 |
4016 |
5285 |
6557 |
|
400 |
2.6 |
2.0 |
|
3.1 |
3.4 |
3.7 |
33.0 |
|
59.8 |
71.2 |
83.1 |
4191 |
|
12739 |
16940 |
21124 |
1684 |
|
5165 |
6842 |
8501 |
|
500 |
2.8 |
2.1 |
|
3.4 |
3.4 |
|
36.4 |
|
74.2 |
82.2 |
86.5 |
5198 |
|
15898 |
20937 |
|
2064 |
|
6431 |
8314 |
|
|
630 |
2.8 |
2.2 |
|
|
|
|
40.1 |
|
77.0 |
85.3 |
|
6464 |
|
|
|
|
2515 |
|
|
|
|
|
800 |
2.8 |
2.3 |
|
|
|
|
45.2 |
|
|
|
|
8126 |
|
|
|
|
3112 |
|
|
|
|
|
1000 |
3.0 |
2.5 |
|
|
|
|
50.5 |
|
|
|
|
10120 |
|
|
|
|
3853 |
|
|
|
|
0.6/1KV PVC/PVC Power cable (non-armored) VV, VLV
|
Conductor dimensions (mm2) |
Insulation thickness (mm) |
Nonmetallic sheath, unarmored cable |
|||||||||||||
|
Sheath thickness |
Outer diameter (approximate) |
Cable weight (Kg/km) |
|||||||||||||
|
mm |
mm |
Copper core |
Aluminum core |
||||||||||||
|
Phase line |
Null line |
Phase line |
Null line |
3+1C |
3+2C |
4+1C |
3+1C |
3+2C |
4+1C |
3+1C |
3+2C |
4+1C |
3+1C |
3+2C |
4+1C |
|
2.5 |
1.5 |
0.8 |
0.8 |
1.8 |
1.8 |
1.8 |
12.3 |
13.1 |
13.3 |
236 |
271 |
276 |
— |
— |
— |
|
4 |
2.5 |
1.0 |
0.8 |
1.8 |
1.8 |
1.8 |
14.2 |
14.9 |
15.4 |
307 |
354 |
305 |
217 |
248 |
253 |
|
6 |
4.0 |
1.0 |
1.0 |
1.8 |
1.8 |
1.8 |
15.6 |
16.7 |
17.0 |
400 |
467 |
335 |
263 |
305 |
308 |
|
10 |
6.0 |
1.0 |
1.0 |
1.8 |
1.8 |
1.8 |
18.0 |
19.1 |
19.7 |
574 |
659 |
701 |
348 |
395 |
412 |
|
16 |
10.0 |
1.0 |
1.0 |
1.8 |
1.8 |
1.8 |
20.7 |
22.1 |
22.7 |
829 |
946 |
1018 |
464 |
518 |
552 |
|
25 |
16.0 |
1.2 |
1.0 |
1.8 |
1.8 |
1.8 |
23.9 |
25.6 |
26.3 |
1195 |
1379 |
1480 |
622 |
705 |
751 |
|
35 |
16.0 |
1.2 |
1.0 |
1.8 |
1.8 |
1.8 |
26.1 |
27.5 |
28.9 |
1484 |
1667 |
1869 |
728 |
818 |
894 |
|
50 |
25.0 |
1.4 |
1.2 |
1.9 |
1.9 |
2.0 |
30.0 |
31.8 |
33.5 |
2079 |
2359 |
2638 |
978 |
1100 |
1222 |
|
70 |
35.0 |
1.4 |
1.2 |
2.0 |
2.1 |
2.1 |
31.0 |
34.9 |
35.8 |
2789 |
3200 |
3565 |
1245 |
1436 |
1579 |
|
95 |
50.0 |
1.6 |
1.4 |
2.2 |
2.2 |
2.3 |
35.7 |
40.2 |
41.3 |
3778 |
4350 |
4821 |
1667 |
1924 |
2111 |
|
120 |
70.0 |
1.6 |
1.4 |
2.3 |
2.4 |
2.5 |
38.3 |
43.8 |
45.7 |
4725 |
5529 |
6050 |
2014 |
2377 |
2582 |
|
150 |
70.0 |
1.8 |
1.4 |
2.4 |
2.5 |
2.6 |
41.7 |
48.1 |
50.0 |
5680 |
6500 |
7318 |
2402 |
2780 |
3094 |
|
185 |
95.0 |
2.0 |
1.6 |
2.6 |
2.7 |
2.8 |
47.4 |
53.6 |
55.4 |
7098 |
8178 |
9095 |
2999 |
3481 |
3830 |
|
240 |
120.0 |
2.2 |
1.6 |
2.8 |
2.9 |
3.0 |
55.5 |
61.3 |
62.7 |
9108 |
10435 |
11651 |
3812 |
4382 |
4841 |
|
300 |
150.0 |
2.4 |
1.8 |
3.0 |
3.1 |
3.2 |
61.2 |
68.5 |
66.0 |
11320 |
12981 |
14434 |
4695 |
5410 |
5915 |
|
400 |
185.0 |
2.6 |
2.0 |
3.2 |
3.3 |
3.5 |
70.4 |
77.1 |
70.9 |
14757 |
16803 |
18818 |
6017 |
6897 |
7554 |
0.6/1KV PVC/PVC Power cable (steel wire armored) VV32, VLV32
|
Conductor dimensions (mm2) |
nsulation thickness (mm) |
Armored wire cable |
|||||||||||||||||||||||
|
PVC bedding thickness |
Armored wire Outer diameter |
Sheath thickness |
Outer diameter (approximate) |
Cable weight (approximate) (Kg/km) |
Cable weight (approximate) (Kg/km) |
||||||||||||||||||||
|
mm |
mm |
mm |
mm |
Copper core |
Aluminum core |
||||||||||||||||||||
|
2C |
3C |
4C |
5C |
2C |
3C |
4C |
5C |
2C |
3C |
4C |
5C |
2C |
3C |
4C |
5C |
2C |
3C |
4C |
5C |
2C |
3C |
4C |
5C |
||
|
1.5 |
0.8 |
1.0 |
1.0 |
1.0 |
1.0 |
0.8 |
0.8 |
0.8 |
0.8 |
1.8 |
1.8 |
1.8 |
1.8 |
14.6 |
15.0 |
15.8 |
16.6 |
351 |
390 |
449 |
477 |
332 |
362 |
412 |
431 |
|
2.5 |
0.8 |
1.0 |
1.0 |
1.0 |
1.0 |
0.8 |
0.8 |
0.8 |
0.8 |
1.8 |
1.8 |
1.8 |
1.8 |
15.4 |
15.9 |
16.8 |
17.7 |
396 |
447 |
523 |
562 |
365 |
400 |
461 |
484 |
|
4 |
1.0 |
1.0 |
1.0 |
1.0 |
1.0 |
0.8 |
1.25 |
1.25 |
1.25 |
1.8 |
1.8 |
1.8 |
1.8 |
17.1 |
18.7 |
19.8 |
21.0 |
492 |
681 |
785 |
887 |
442 |
607 |
685 |
762 |
|
6 |
1.0 |
1.0 |
1.0 |
1.0 |
1.0 |
1.25 |
1.25 |
1.25 |
1.25 |
1.8 |
1.8 |
1.8 |
1.8 |
19.0 |
19.8 |
21.0 |
22.4 |
698 |
788 |
915 |
1041 |
623 |
677 |
766 |
854 |
|
10 |
1.0 |
1.0 |
1.0 |
1.0 |
1.0 |
1.25 |
1.25 |
1.25 |
1.6 |
1.8 |
1.8 |
1.8 |
1.8 |
21.3 |
22.2 |
23.7 |
26.1 |
874 |
1012 |
1197 |
1519 |
748 |
823 |
945 |
1204 |
|
16 |
1.0 |
1.0 |
1.0 |
1.0 |
1.0 |
1.25 |
1.25 |
1.6 |
1.6 |
1.8 |
1.8 |
1.8 |
1.8 |
23.5 |
24.6 |
27.1 |
29.1 |
1091 |
1309 |
1701 |
1976 |
890 |
1007 |
1298 |
1473 |
|
25 |
1.2 |
1.0 |
1.0 |
1.0 |
1.0 |
1.6 |
1.6 |
1.6 |
1.6 |
1.8 |
1.8 |
1.8 |
1.9 |
27.0 |
28.3 |
30.5 |
33.1 |
1555 |
1856 |
2223 |
2639 |
1240 |
1384 |
1594 |
1852 |
|
35 |
1.2 |
1.0 |
1.0 |
1.0 |
1.0 |
1.6 |
1.6 |
1.6 |
2.0 |
1.8 |
1.8 |
1.9 |
2.0 |
29.4 |
30.9 |
33.6 |
37.3 |
1850 |
2279 |
2747 |
3531 |
1409 |
1619 |
1866 |
2430 |
|
50 |
1.4 |
1.0 |
1.0 |
1.2 |
1.2 |
1.6 |
1.6 |
2.0 |
2.0 |
1.9 |
2.0 |
2.1 |
2.2 |
32.8 |
34.7 |
39.0 |
42.4 |
2275 |
2872 |
3846 |
4624 |
1646 |
1928 |
2588 |
3051 |
|
70 |
1.4 |
1.0 |
1.2 |
1.2 |
1.2 |
2.0 |
2.0 |
2.0 |
2.0 |
2.0 |
2.1 |
2.2 |
2.3 |
37.0 |
34.4 |
38.7 |
45.1 |
3073 |
3681 |
4632 |
5702 |
2190 |
2357 |
2867 |
3495 |
|
95 |
1.6 |
1.2 |
1.2 |
1.2 |
1.4 |
2.0 |
2.0 |
2.5 |
2.5 |
2.2 |
2.2 |
2.4 |
2.6 |
42.0 |
38.6 |
45.4 |
52.2 |
3866 |
4656 |
6456 |
7940 |
2668 |
2859 |
4060 |
4945 |
|
120 |
1.6 |
1.2 |
1.2 |
1.4 |
1.4 |
2.0 |
2.0 |
2.5 |
2.5 |
2.3 |
2.3 |
2.6 |
2.7 |
45.0 |
41.5 |
48.4 |
56.1 |
4519 |
5543 |
7653 |
9415 |
3006 |
3273 |
4627 |
5632 |
|
150 |
1.8 |
1.2 |
1.4 |
1.4 |
1.6 |
2.5 |
2.5 |
2.5 |
2.5 |
2.5 |
2.6 |
2.7 |
2.9 |
50.6 |
47.3 |
52.3 |
62.0 |
5919 |
7257 |
9126 |
11427 |
4027 |
4420 |
5343 |
6698 |
|
185 |
2.0 |
1.4 |
1.4 |
1.6 |
1.6 |
2.5 |
2.5 |
2.5 |
2.5 |
2.6 |
2.7 |
2.9 |
3.1 |
55.4 |
51.5 |
57.8 |
70.3 |
7028 |
8630 |
10993 |
13819 |
4695 |
5131 |
6327 |
7987 |
|
240 |
2.2 |
1.4 |
1.6 |
1.6 |
1.6 |
2.5 |
2.5 |
2.5 |
3.15 |
2.8 |
2.9 |
3.1 |
3.4 |
61.0 |
59.3 |
65.3 |
77.0 |
8521 |
10856 |
13726 |
17857 |
5495 |
6316 |
7673 |
10291 |
|
300 |
2.4 |
1.6 |
1.6 |
1.6 |
1.8 |
2.5 |
2.5 |
2.5 |
3.15 |
3.0 |
3.1 |
3.3 |
3.6 |
67.0 |
62.4 |
71.9 |
82.9 |
10178 |
12930 |
16619 |
21385 |
6392 |
7250 |
9045 |
11918 |
|
400 |
2.6 |
|
1.6 |
1.8 |
|
|
3.15 |
3.15 |
|
|
3.4 |
3.7 |
|
|
70.9 |
82.7 |
97.8 |
|
17174 |
22239 |
|
|
9601 |
12141 |
|
|
500 |
2.8 |
|
1.8 |
|
|
|
3.15 |
|
|
|
3.6 |
|
|
|
88.3 |
|
|
|
21557 |
|
|
|
12090 |
|
|
0.6/1KV PVC/PVC Power cable (steel tape armored) VV22,VLV22
|
Conductor dimensions (mm2) |
nsulation thickness (mm) |
Steel tape armoured cable |
|||||||||||||||||||||||
|
PVC bedding thickness |
Armored wire Outer diameter |
Sheath thickness |
Outer diameter (approximate) |
Cable weight (approximate) (Kg/km) |
Cable weight (approximate) (Kg/km) |
||||||||||||||||||||
|
mm |
mm |
mm |
mm |
Copper core |
Aluminum core |
||||||||||||||||||||
|
2C |
3C |
4C |
5C |
2C |
3C |
4C |
5C |
2C |
3C |
4C |
5C |
2C |
3C |
4C |
5C |
2C |
3C |
4C |
5C |
2C |
3C |
4C |
5C |
||
|
1.5 |
0.8 |
0.9 |
0.9 |
0.9 |
0.9 |
0.2 |
0.2 |
0.2 |
0.2 |
1.8 |
1.8 |
1.8 |
1.8 |
12.2 |
12.6 |
13.4 |
14.2 |
229 |
254 |
294 |
334 |
210 |
226 |
257 |
287 |
|
2.5 |
0.8 |
0.9 |
0.9 |
0.9 |
0.9 |
0.2 |
0.2 |
0.2 |
0.2 |
1.8 |
1.8 |
1.8 |
1.8 |
13.0 |
13.5 |
14.4 |
15.3 |
265 |
302 |
355 |
407 |
234 |
255 |
293 |
329 |
|
4 |
1.0 |
0.9 |
0.9 |
0.9 |
0.9 |
0.2 |
0.2 |
0.2 |
0.2 |
1.8 |
1.8 |
1.8 |
1.8 |
14.7 |
15.4 |
16.5 |
17.7 |
335 |
395 |
473 |
546 |
285 |
320 |
373 |
422 |
|
6 |
1.0 |
0.9 |
0.9 |
0.9 |
0.9 |
0.2 |
0.2 |
0.2 |
0.2 |
1.8 |
1.8 |
1.8 |
1.8 |
15.7 |
16.5 |
17.7 |
19.1 |
403 |
476 |
578 |
676 |
328 |
364 |
429 |
489 |
|
10 |
1.0 |
0.9 |
0.9 |
0.9 |
0.9 |
0.2 |
0.2 |
0.2 |
0.2 |
1.8 |
1.8 |
1.8 |
1.8 |
18.0 |
18.9 |
20.4 |
22.1 |
538 |
660 |
811 |
956 |
413 |
471 |
559 |
641 |
|
16 |
1.0 |
0.9 |
0.9 |
0.9 |
0.9 |
0.2 |
0.2 |
0.2 |
0.2 |
1.8 |
1.8 |
1.8 |
1.8 |
20.2 |
21.3 |
23.1 |
25.1 |
715 |
908 |
1118 |
1328 |
513 |
606 |
715 |
824 |
|
25 |
1.2 |
0.9 |
0.9 |
0.9 |
0.9 |
0.2 |
0.2 |
0.2 |
0.2 |
1.8 |
1.8 |
1.8 |
1.8 |
23.0 |
24.3 |
26.5 |
28.9 |
971 |
1245 |
1556 |
1867 |
656 |
773 |
927 |
1080 |
|
35 |
1.2 |
0.9 |
0.9 |
0.9 |
0.9 |
0.2 |
0.2 |
0.2 |
0.2 |
1.8 |
1.8 |
1.9 |
2.0 |
25.4 |
26.9 |
29.6 |
32.5 |
1211 |
1598 |
1993 |
2422 |
770 |
937 |
1112 |
1321 |
|
50 |
1.4 |
0.9 |
0.9 |
0.9 |
1.2 |
0.2 |
0.2 |
0.2 |
0.5 |
1.8 |
1.9 |
2.0 |
2.2 |
28.6 |
30.5 |
33.6 |
39.0 |
1536 |
2089 |
2690 |
3720 |
907 |
1145 |
1432 |
2147 |
|
70 |
1.4 |
0.9 |
0.9 |
1.2 |
1.2 |
0.2 |
0.2 |
0.5 |
0.5 |
1.9 |
2.0 |
2.2 |
2.3 |
25.2 |
29.0 |
35.3 |
41.7 |
1884 |
2666 |
3862 |
4792 |
1002 |
1342 |
2097 |
2585 |
|
95 |
1.6 |
1.2 |
1.2 |
1.2 |
1.2 |
0.5 |
0.5 |
0.5 |
0.5 |
2.1 |
2.2 |
2.4 |
2.5 |
31.0 |
35.2 |
40.6 |
46.8 |
2818 |
3910 |
5078 |
6256 |
1620 |
2114 |
2682 |
3261 |
|
120 |
1.6 |
1.2 |
1.2 |
1.2 |
1.4 |
0.5 |
0.5 |
0.5 |
0.5 |
2.2 |
2.3 |
2.5 |
2.6 |
33.6 |
38.1 |
43.0 |
51.1 |
3395 |
4734 |
6118 |
7647 |
1882 |
2464 |
3092 |
3864 |
|
150 |
1.8 |
1.2 |
1.2 |
1.4 |
1.4 |
0.5 |
0.5 |
0.5 |
0.5 |
2.4 |
2.5 |
2.6 |
2.8 |
36.6 |
41.9 |
47.3 |
56.6 |
4120 |
5790 |
7516 |
9378 |
2228 |
2953 |
3733 |
4649 |
|
185 |
2.0 |
1.2 |
1.4 |
1.4 |
1.4 |
0.5 |
0.5 |
0.5 |
0.5 |
2.5 |
2.6 |
2.8 |
3.0 |
42.4 |
46.5 |
52.4 |
64.9 |
5045 |
7052 |
9145 |
11487 |
2713 |
3552 |
4480 |
5655 |
|
240 |
2.2 |
1.4 |
1.4 |
1.4 |
1.4 |
0.5 |
0.5 |
0.5 |
0.5 |
2.7 |
2.8 |
3.0 |
3.2 |
48.0 |
53.9 |
59.9 |
70.0 |
6393 |
8984 |
11630 |
14440 |
3367 |
4445 |
5577 |
6874 |
|
300 |
2.4 |
1.4 |
1.4 |
1.4 |
1.4 |
0.5 |
0.5 |
0.5 |
0.5 |
2.9 |
3.0 |
3.2 |
3.5 |
53.2 |
57.0 |
66.5 |
75.8 |
7802 |
10923 |
14305 |
17714 |
4016 |
5243 |
6731 |
8247 |
|
400 |
2.6 |
|
1.4 |
1.4 |
1.4 |
|
0.5 |
0.8 |
0.8 |
|
3.3 |
3.6 |
3.8 |
|
64.2 |
76.8 |
91.9 |
|
14155 |
19356 |
|
|
6581 |
9258 |
|
|
500 |
|
|
1.4 |
|
|
|
0.5 |
|
|
|
3.4 |
|
|
|
81.2 |
|
|
|
17684 |
|
|
|
8217 |
|
|
0.6/1KV PVC/PVC Power cable (steel wire armored) VV32, VLV32
|
Conductor dimensions (mm2) |
Insulation thickness (mm) |
Armored wire cable |
|||||||||||||||||||
|
PVC bedding thickness |
Armored wire Outer diameter |
Sheath thickness |
Outer diameter (approximate) |
Cable weight (approximate) (Kg/km) |
Cable weight (approximate) (Kg/km) |
||||||||||||||||
|
mm |
mm |
mm |
mm |
Copper core |
Aluminum core |
||||||||||||||||
|
Phase line |
Null line |
Phase line |
Null line |
3+1C |
3+2C |
4+1C |
3+1C |
3+2C |
4+1C |
3+1C |
3+2C |
4+1C |
3+1C |
3+2C |
4+1C |
3+1C |
3+2C |
4+1C |
3+1C |
3+2C |
4+1C |
|
2.5 |
1.5 |
0.8 |
0.8 |
1.0 |
1.0 |
1.0 |
0.8 |
0.8 |
0.8 |
1.8 |
1.8 |
1.8 |
16.5 |
17.3 |
17.5 |
504 |
557 |
567 |
— |
— |
— |
|
4 |
2.5 |
1.0 |
0.8 |
1.0 |
1.0 |
1.0 |
1.25 |
1.25 |
1.25 |
1.8 |
1.8 |
1.8 |
19.3 |
20.0 |
20.5 |
749 |
809 |
847 |
658 |
704 |
732 |
|
6 |
4.0 |
1.0 |
1.0 |
1.0 |
1.0 |
1.0 |
1.25 |
1.25 |
1.25 |
1.8 |
1.8 |
1.8 |
20.7 |
21.8 |
22.1 |
880 |
985 |
1002 |
743 |
823 |
827 |
|
10 |
6.0 |
1.0 |
1.0 |
1.0 |
1.0 |
1.0 |
1.25 |
1.6 |
1.6 |
1.8 |
1.8 |
1.8 |
23.1 |
24.9 |
25.5 |
1130 |
1375 |
1438 |
904 |
1112 |
1149 |
|
16 |
10.0 |
1.0 |
1.0 |
1.0 |
1.0 |
1.0 |
1.6 |
1.6 |
1.6 |
1.8 |
1.8 |
1.8 |
26.5 |
27.9 |
28.5 |
1605 |
1780 |
1872 |
1240 |
1352 |
1406 |
|
25 |
16.0 |
1.2 |
1.0 |
1.0 |
1.0 |
1.0 |
1.6 |
1.6 |
1.6 |
1.8 |
1.8 |
1.9 |
29.7 |
31.4 |
32.3 |
2090 |
2333 |
2471 |
1517 |
1660 |
1741 |
|
35 |
16.0 |
1.2 |
1.0 |
1.0 |
1.0 |
1.0 |
1.6 |
1.6 |
1.6 |
1.9 |
1.9 |
2.0 |
32.1 |
33.5 |
35.1 |
2472 |
2698 |
2975 |
1717 |
1849 |
2000 |
|
50 |
25.0 |
1.4 |
1.2 |
1.0 |
1.2 |
1.2 |
2.0 |
2.0 |
2.0 |
2.0 |
2.1 |
2.1 |
36.8 |
39.2 |
40.7 |
3434 |
3878 |
4205 |
2333 |
2620 |
2790 |
|
70 |
35.0 |
1.4 |
1.2 |
1.2 |
1.2 |
1.2 |
2.0 |
2.0 |
2.0 |
2.1 |
2.2 |
2.3 |
38.2 |
42.1 |
43.0 |
4235 |
4806 |
5248 |
2690 |
3041 |
3262 |
|
95 |
50.0 |
1.6 |
1.4 |
1.2 |
1.2 |
1.4 |
2.0 |
2.5 |
2.5 |
2.3 |
2.5 |
2.5 |
42.9 |
49.2 |
50.5 |
5417 |
6789 |
7334 |
3306 |
4363 |
4623 |
|
120 |
70.0 |
1.6 |
1.4 |
1.4 |
1.4 |
1.4 |
2.5 |
2.5 |
2.5 |
2.5 |
2.6 |
2.7 |
47.5 |
53.0 |
54.9 |
7082 |
8193 |
8818 |
4371 |
5041 |
5351 |
|
150 |
70.0 |
1.8 |
1.4 |
1.4 |
1.4 |
1.4 |
2.5 |
2.5 |
2.5 |
2.6 |
2.7 |
2.8 |
50.9 |
57.3 |
59.2 |
8200 |
9418 |
10340 |
4921 |
5698 |
6116 |
|
185 |
95.0 |
2.0 |
1.6 |
1.4 |
1.4 |
1.6 |
2.5 |
2.5 |
2.5 |
2.8 |
2.9 |
3.0 |
56.6 |
62.8 |
65.0 |
9968 |
11365 |
12481 |
5870 |
6668 |
7216 |
|
240 |
120.0 |
2.2 |
1.6 |
1.6 |
1.6 |
1.6 |
2.5 |
2.5 |
2.5 |
3.0 |
3.1 |
3.2 |
65.1 |
70.9 |
72.3 |
12495 |
14139 |
15454 |
7199 |
8086 |
8645 |
|
300 |
150.0 |
2.4 |
1.8 |
1.6 |
1.6 |
1.8 |
2.5 |
2.5 |
3.15 |
3.2 |
3.3 |
3.5 |
70.8 |
78.1 |
77.5 |
15024 |
17101 |
19338 |
8399 |
9530 |
10818 |
|
400 |
185.0 |
2.6 |
2.0 |
1.8 |
1.8 |
1.8 |
3.15 |
3.15 |
3.15 |
3.5 |
3.6 |
3.8 |
81.9 |
88.6 |
82.4 |
19977 |
22502 |
24053 |
11237 |
12595 |
12788 |
0.6/1KV PVC/PVC Power cable (steel tape armored) VV22, VLV22
|
Conductor dimensions (mm2) |
Insulation thickness (mm) |
Steel tape armoured cable |
|||||||||||||||||||
|
PVC bedding thickness |
Armored wire Outer diameter |
Sheath thickness |
Outer diameter (approximate) |
Cable weight (approximate) (Kg/km) |
Cable weight (approximate) (Kg/km) |
||||||||||||||||
|
mm |
mm |
mm |
mm |
Copper core |
Aluminum core |
||||||||||||||||
|
Phase line |
Null line |
Phase line |
Null line |
3+1C |
3+2C |
4+1C |
3+1C |
3+2C |
4+1C |
3+1C |
3+2C |
4+1C |
3+1C |
3+2C |
4+1C |
3+1C |
3+2C |
4+1C |
3+1C |
3+2C |
4+1C |
|
2.5 |
1.5 |
0.8 |
0.8 |
0.9 |
0.9 |
0.9 |
0.2 |
0.2 |
0.2 |
1.8 |
1.8 |
1.8 |
14.1 |
14.4 |
15.4 |
358 |
317 |
330 |
— |
— |
— |
|
4 |
2.5 |
1.0 |
0.8 |
0.9 |
0.9 |
0.9 |
0.2 |
0.2 |
0.2 |
1.8 |
1.8 |
1.8 |
16.0 |
17.1 |
17.7 |
451 |
414 |
431 |
360 |
308 |
316 |
|
6 |
4.0 |
1.0 |
1.0 |
0.9 |
0.9 |
0.9 |
0.2 |
0.2 |
0.2 |
1.8 |
1.8 |
1.8 |
17.4 |
18.9 |
19.1 |
558 |
534 |
550 |
421 |
372 |
376 |
|
10 |
6.0 |
1.0 |
1.0 |
0.9 |
0.9 |
0.9 |
0.2 |
0.2 |
0.2 |
1.8 |
1.8 |
1.8 |
19.8 |
21.3 |
22.0 |
755 |
735 |
780 |
529 |
471 |
491 |
|
16 |
10.0 |
1.0 |
1.0 |
0.9 |
0.9 |
0.9 |
0.2 |
0.2 |
0.2 |
1.8 |
1.8 |
1.8 |
22.5 |
24.2 |
24.7 |
1034 |
1032 |
1106 |
669 |
604 |
640 |
|
25 |
16.0 |
1.2 |
1.0 |
0.9 |
0.9 |
0.9 |
0.2 |
0.2 |
0.2 |
1.8 |
1.8 |
1.8 |
25.7 |
28.3 |
28.9 |
1440 |
1483 |
1587 |
867 |
810 |
857 |
|
35 |
16.0 |
1.2 |
1.0 |
0.9 |
0.9 |
0.9 |
0.2 |
0.2 |
0.2 |
1.8 |
1.9 |
1.9 |
28.1 |
29.2 |
29.3 |
1713 |
1782 |
1979 |
958 |
933 |
1004 |
|
50 |
25.0 |
1.4 |
1.2 |
0.9 |
0.9 |
0.9 |
0.2 |
0.2 |
0.2 |
1.9 |
2.0 |
2.1 |
32.0 |
33.2 |
34.5 |
2349 |
2489 |
2771 |
1248 |
1230 |
1355 |
|
70 |
35.0 |
1.4 |
1.2 |
0.9 |
1.2 |
1.2 |
0.2 |
0.5 |
0.5 |
2.1 |
2.2 |
2.2 |
33.0 |
38.8 |
39.7 |
3124 |
3412 |
3781 |
1579 |
1647 |
1795 |
|
95 |
50.0 |
1.6 |
1.4 |
1.2 |
1.2 |
1.2 |
0.5 |
0.5 |
0.5 |
2.3 |
2.4 |
2.4 |
39.5 |
44.3 |
45.2 |
4581 |
4611 |
5070 |
2469 |
2185 |
2359 |
|
120 |
70.0 |
1.6 |
1.4 |
1.2 |
1.2 |
1.4 |
0.5 |
0.5 |
0.5 |
2.4 |
2.5 |
2.6 |
42.2 |
47.7 |
50.1 |
5585 |
5791 |
6368 |
2873 |
2639 |
2900 |
|
150 |
70.0 |
1.8 |
1.4 |
1.2 |
1.4 |
1.4 |
0.5 |
0.5 |
0.5 |
2.5 |
2.6 |
2.7 |
46.1 |
52.3 |
54.4 |
6629 |
6832 |
7665 |
3350 |
3112 |
3441 |
|
185 |
95.0 |
2.0 |
1.6 |
1.4 |
1.4 |
1.4 |
0.5 |
0.5 |
0.5 |
2.7 |
2.8 |
2.9 |
51.8 |
57.8 |
59.8 |
8211 |
8546 |
9478 |
4112 |
3849 |
4213 |
|
240 |
120.0 |
2.2 |
1.6 |
1.4 |
1.4 |
1.4 |
0.5 |
0.5 |
0.5 |
2.9 |
3.0 |
3.1 |
59.9 |
67.5 |
69.1 |
10408 |
10881 |
12110 |
5112 |
4828 |
5301 |
|
300 |
150.0 |
2.4 |
1.8 |
1.4 |
1.4 |
1.4 |
0.5 |
0.5 |
0.5 |
3.1 |
3.2 |
3.3 |
65.6 |
76.7 |
79.0 |
12750 |
13506 |
15018 |
6124 |
5935 |
6499 |
|
400 |
185.0 |
2.6 |
2.0 |
1.4 |
1.4 |
1.4 |
0.5 |
0.5 |
0.8 |
3.3 |
3.5 |
3.7 |
74.8 |
83.3 |
79.3 |
16399 |
17393 |
19405 |
7659 |
7486 |
8140 |
1.8/3 (3.6) KV PVC/PVC single core (non-armored) VV, VLV
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core cable weight (kg/km) |
Aluminum core cable weight (kg/km) |
Insulation resistance 20°C (Min) (MΩ/km) |
||
|
Cross sectional area (mm2) |
Structure |
Oute diameter (mm) |
|||||||
|
10 |
Compact round |
3.9 |
2.2 |
0.12 |
1.4 |
13.3 |
280 |
217 |
100 |
|
16 |
Compact round |
5.0 |
2.2 |
0.12 |
1.4 |
14.4 |
358 |
258 |
100 |
|
25 |
Compact round |
6.0 |
2.2 |
0.12 |
1.4 |
15.4 |
461 |
305 |
100 |
|
35 |
Compact round |
7.2 |
2.2 |
0.12 |
1.5 |
16.8 |
585 |
366 |
100 |
|
50 |
Compact round |
8.4 |
2.2 |
0.12 |
1.5 |
18.0 |
746 |
434 |
100 |
|
70 |
Compact round |
10.0 |
2.2 |
0.12 |
1.6 |
19.8 |
972 |
534 |
100 |
|
95 |
Compact round |
11.7 |
2.2 |
0.12 |
1.6 |
21.5 |
1236 |
641 |
100 |
|
120 |
Compact round |
13.1 |
2.2 |
0.12 |
1.7 |
23.1 |
1504 |
752 |
100 |
|
150 |
Compact round |
14.6 |
2.2 |
0.12 |
1.7 |
24.6 |
1809 |
869 |
100 |
|
185 |
Compact round |
16.3 |
2.2 |
0.12 |
1.8 |
26.5 |
2175 |
1017 |
100 |
|
240 |
Compact round |
18.5 |
2.2 |
0.12 |
1.8 |
28.7 |
2723 |
1220 |
100 |
|
300 |
Compact round |
20.7 |
2.4 |
0.12 |
1.9 |
31.5 |
3360 |
1480 |
100 |
|
400 |
Compact round |
23.8 |
2.6 |
0.12 |
2.1 |
35.4 |
4403 |
1896 |
100 |
|
500 |
Compact round |
26.6 |
2.8 |
0.12 |
2.2 |
38.8 |
5431 |
2298 |
100 |
|
630 |
Compact round |
30.1 |
2.8 |
0.12 |
2.3 |
42.5 |
6721 |
2772 |
100 |
|
800 |
Compact round |
35.0 |
2.8 |
0.12 |
2.4 |
47.6 |
8415 |
3401 |
100 |
|
1000 |
Milliken conductor |
39.5 |
3.0 |
0.12 |
2.6 |
52.9 |
10443 |
4175 |
100 |
1.8/3 (3.6) KV PVC/PVC 3 cores (non-armored) VV, VLV
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core cable weight (kg/km) |
Aluminum core cable weight (kg/km) |
Insulation resistance 20°C (Min) (MΩ/km) |
||
|
Cross sectional area (mm2) |
Structure |
Oute diameter (mm) |
|||||||
|
10 |
Compact round |
3.9 |
2.2 |
0.1 |
1.8 |
23.7 |
781 |
592 |
100 |
|
16 |
Compact round |
5.0 |
2.2 |
0.1 |
1.8 |
26.0 |
1055 |
753 |
100 |
|
25 |
Compact round |
6.0 |
2.2 |
0.1 |
1.8 |
28.2 |
1359 |
887 |
100 |
|
35 |
Compact round |
7.2 |
2.2 |
0.1 |
1.9 |
31.0 |
1739 |
1079 |
100 |
|
50 |
Compact round |
8.4 |
2.2 |
0.1 |
2.0 |
33.8 |
2146 |
1202 |
100 |
|
70 |
Compact round |
10.0 |
2.2 |
0.1 |
2.1 |
37.4 |
2805 |
1481 |
100 |
|
95 |
Compact round |
11.7 |
2.2 |
0.1 |
2.2 |
41.3 |
3609 |
1812 |
100 |
|
120 |
Compact round |
13.1 |
2.2 |
0.1 |
2.3 |
44.5 |
4397 |
2127 |
100 |
|
150 |
Compact round |
14.6 |
2.2 |
0.1 |
2.4 |
47.9 |
5337 |
2500 |
100 |
|
185 |
Compact round |
16.3 |
2.2 |
0.1 |
2.6 |
52.0 |
6446 |
2947 |
100 |
|
240 |
Compact round |
18.5 |
2.2 |
0.1 |
2.7 |
56.9 |
8113 |
3573 |
100 |
|
300 |
Compact round |
20.7 |
2.4 |
0.1 |
2.9 |
62.9 |
10041 |
4361 |
100 |
|
400 |
Compact round |
23.8 |
2.6 |
0.1 |
3.2 |
71.1 |
13178 |
5604 |
100 |
|
500 |
Compact round |
26.6 |
2.8 |
0.1 |
3.4 |
78.4 |
16291 |
6824 |
100 |
1.8/3 (3.6) KV PVC/PVC 3 cores (steel wire armored) VV32, VLV32
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
PVC bedding thickness (mm) |
Armored wire outer diameter (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core cable weight (kg/km) |
Aluminum core cable weight (kg/km) |
Insulation resistance 20°C (Min) (MΩ/km) |
||
|
Cross sectional area (mm2) |
Structure |
Oute diameter (mm) |
|||||||||
|
10 |
Compact round |
3.9 |
2.2 |
0.1 |
1.2 |
1.6 |
1.9 |
30.1 |
1712 |
1523 |
100 |
|
16 |
Compact round |
5.0 |
2.2 |
0.1 |
1.2 |
1.6 |
2.0 |
32.6 |
2084 |
1782 |
100 |
|
25 |
Compact round |
6.0 |
2.2 |
0.1 |
1.2 |
2.0 |
2.1 |
35.8 |
2735 |
2263 |
100 |
|
35 |
Compact round |
7.2 |
2.2 |
0.1 |
1.2 |
2.0 |
2.2 |
38.6 |
3218 |
2558 |
100 |
|
50 |
Compact round |
8.4 |
2.2 |
0.1 |
1.2 |
2.0 |
2.3 |
41.4 |
3753 |
2809 |
100 |
|
70 |
Compact round |
10.0 |
2.2 |
0.1 |
1.2 |
2.0 |
2.4 |
45.0 |
4573 |
3249 |
100 |
|
95 |
Compact round |
11.7 |
2.2 |
0.1 |
1.3 |
2.5 |
2.6 |
50.7 |
6145 |
4348 |
100 |
|
120 |
Compact round |
13.1 |
2.2 |
0.1 |
1.4 |
2.5 |
2.7 |
54.1 |
7157 |
4887 |
100 |
|
150 |
Compact round |
14.6 |
2.2 |
0.1 |
1.4 |
2.5 |
2.8 |
57.5 |
8303 |
5465 |
100 |
|
185 |
Compact round |
16.3 |
2.2 |
0.1 |
1.5 |
2.5 |
3.0 |
61.8 |
9655 |
6155 |
100 |
|
240 |
Compact round |
18.5 |
2.2 |
0.1 |
1.6 |
2.5 |
3.1 |
66.9 |
11657 |
7117 |
100 |
|
300 |
Compact round |
20.7 |
2.4 |
0.1 |
1.7 |
2.5 |
3.3 |
73.1 |
13943 |
8263 |
100 |
|
400 |
Compact round |
23.8 |
2.6 |
0.1 |
1.8 |
3.15 |
3.6 |
82.8 |
18508 |
10935 |
100 |
|
500 |
Compact round |
26.6 |
2.8 |
0.1 |
2.0 |
3.15 |
3.8 |
90.5 |
22256 |
12789 |
100 |
1.8/3 (3.6) KV PVC/PVC 3 cores (steel tape armored) VV22, VLV22
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
PVC bedding thickness (mm) |
Armored tape outer diameter (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core cable weight (kg/km) |
Aluminum core cable weight (kg/km) |
Insulation resistance 20°C (Min) (MΩ/km) |
||
|
Cross sectional area (mm2) |
Structure |
Oute diameter (mm) |
|||||||||
|
10 |
Compact round |
3.9 |
2.2 |
0.1 |
1.2 |
0.2 |
1.8 |
26.9 |
1080 |
891 |
100 |
|
16 |
Compact round |
5.0 |
2.2 |
0.1 |
1.2 |
0.2 |
1.8 |
29.2 |
1383 |
1081 |
100 |
|
25 |
Compact round |
6.0 |
2.2 |
0.1 |
1.2 |
0.2 |
1.9 |
31.6 |
1728 |
1256 |
100 |
|
35 |
Compact round |
7.2 |
2.2 |
0.1 |
1.2 |
0.2 |
2.0 |
34.4 |
2143 |
1482 |
100 |
|
50 |
Compact round |
8.4 |
2.2 |
0.1 |
1.2 |
0.2 |
2.1 |
37.2 |
2584 |
1640 |
100 |
|
70 |
Compact round |
10.0 |
2.2 |
0.1 |
1.2 |
0.5 |
2.2 |
42.0 |
3684 |
2360 |
100 |
|
95 |
Compact round |
11.7 |
2.2 |
0.1 |
1.3 |
0.5 |
2.4 |
46.3 |
4620 |
2823 |
100 |
|
120 |
Compact round |
13.1 |
2.2 |
0.1 |
1.4 |
0.5 |
2.5 |
49.7 |
5507 |
3237 |
100 |
|
150 |
Compact round |
14.6 |
2.2 |
0.1 |
1.4 |
0.5 |
2.6 |
53.1 |
6528 |
3690 |
100 |
|
185 |
Compact round |
16.3 |
2.2 |
0.1 |
1.5 |
0.5 |
2.7 |
57.2 |
7735 |
4235 |
100 |
|
240 |
Compact round |
18.5 |
2.2 |
0.1 |
1.6 |
0.5 |
2.9 |
62.5 |
9578 |
5039 |
100 |
|
300 |
Compact round |
20.7 |
2.4 |
0.1 |
1.7 |
0.5 |
3.1 |
68.7 |
11687 |
6007 |
100 |
|
400 |
Compact round |
23.8 |
2.6 |
0.1 |
1.8 |
0.5 |
3.4 |
77.1 |
15066 |
7492 |
100 |
|
500 |
Compact round |
26.6 |
2.8 |
0.1 |
2.0 |
0.8 |
3.6 |
86.0 |
19277 |
9810 |
100 |
XLPE insulated power cable for 1.8/3KV and below
The product is applicable for AC 50Hz transmission and distribution lines with rated voltage of 1.8/3KV or below.
The mechanical properties and electrical performance of cables meet the requirements of national standard GB/T12706- 2008 and international standards IEC60502-2005.
Operating characteristics
Cable laying temperature: ≥0°C
Cable conductor long-term allowable working temperature:≤90°C
Higest working temperature of cable in case of short circuit (the longest lasting time is not over 5s): 250°C
Minimum allowable bending radius: Single core cable: 20D mm; multi-core cable: 15D mm Note: D is actual outer diameter of the cable
Cable models, names, and laying occasions
|
Model |
Name |
Laying Occasion |
|
|
Copper core |
Aluminum core |
||
|
YJV |
YJLV |
XLPE insulated PVC sheathed power cable |
Laid indoors, and in tunnels and pipelines |
|
YJY |
YJLY |
XLPE insulated PE sheathed power cable |
|
|
YJV22 |
YJLV22 |
XLPE insulated steel tape armored PVC sheathed power cable |
Adapt for buried laying, not suitable for in-pipe laying |
|
YJV23 |
YJLV23 |
XLPE insulated steel tape armored PE sheathed power cable |
|
|
YJV32 |
YJLV32 |
XLPE insulated thin steel wire armored PVC sheathed power cable |
Laid on riverbeds of rivers or shallow water as connecting lines across rivers or petroleum/natural gas platforms, also used in land high drop areas. |
|
YJV33 |
YJLV33 |
XLPE insulated thin steel wire armored PVC sheathed power cable |
|
|
YJV42 |
YJLV42 |
XLPE insulated thick steel wire armored PVC sheathed power cable |
|
|
YJV43 |
YJLV43 |
XLPE insulated thick steel wire armored PE sheathed power cable |
|
Range of production
|
Number of cores |
0.6/1kv Cross sectionalarea (mm2)
|
1.8/3 |
|
Single core 1 |
1.5-1000 |
10-1000 |
|
Twin core 2 |
1.5-240 |
10-240 |
|
Triple core 3 |
1.5-300 |
10-300 |
|
Three big cores and two small cores 3+2 |
2.5-300 |
10-300 |
Notes:
Number of cores produced and cross section depend on cable models and voltages:
Warm water crosslinking and radiation crosslinking methods shall be adopted for 0.6/1KV and1.8/3KV.
0.6/1KV XLPE/PVC Power cable (non-armored) YJV, YJLV
|
Conductor dimensions (mm2) |
Insulation thickness (mm) |
Nonmetallic sheath, unarmored cable |
|||||||||||||||||||
|
Sheath thickness |
Outer diameter (approximate) |
Cable weight (Kg/km) |
|||||||||||||||||||
|
mm |
mm |
Copper core |
Aluminum core |
||||||||||||||||||
|
1C |
2C |
3C |
4C |
5C |
1C |
2C |
3C |
4C |
5C |
1C |
2C |
3C |
4C |
5C |
1C |
2C |
3C |
4C |
5C |
||
|
1.5 |
0.7 |
1.4 |
1.8 |
1.8 |
1.8 |
1.8 |
5.6 |
10.0 |
10.4 |
11.1 |
11.9 |
45 |
122 |
139 |
167 |
195 |
35 |
103 |
111 |
506 |
148 |
|
2.5 |
0.7 |
1.4 |
1.8 |
1.8 |
1.8 |
1.8 |
6.0 |
10.8 |
11.2 |
12.1 |
13.0 |
57 |
148 |
175 |
215 |
253 |
42 |
117 |
129 |
641 |
175 |
|
4 |
0.7 |
1.4 |
1.8 |
1.8 |
1.8 |
1.8 |
6.5 |
11.7 |
12.3 |
13.2 |
14.3 |
75 |
185 |
228 |
285 |
337 |
50 |
135 |
153 |
833 |
212 |
|
6 |
0.7 |
1.4 |
1.8 |
1.8 |
1.8 |
1.8 |
7.0 |
12.7 |
13.4 |
14.4 |
15.6 |
97 |
239 |
295 |
373 |
445 |
60 |
165 |
183 |
1086 |
258 |
|
10 |
0.7 |
1.4 |
1.8 |
1.8 |
1.8 |
1.8 |
8.1 |
15.0 |
15.8 |
17.2 |
18.7 |
143 |
346 |
445 |
568 |
681 |
80 |
220 |
256 |
1629 |
366 |
|
16 |
0.7 |
1.4 |
1.8 |
1.8 |
1.8 |
1.8 |
9.2 |
17.2 |
18.2 |
19.8 |
21.7 |
206 |
494 |
660 |
835 |
1008 |
106 |
292 |
358 |
2377 |
505 |
|
25 |
0.9 |
1.4 |
1.8 |
1.8 |
1.8 |
1.8 |
10.6 |
20.0 |
21.2 |
23.2 |
25.5 |
303 |
711 |
951 |
1217 |
1483 |
146 |
396 |
479 |
3457 |
696 |
|
35 |
0.9 |
1.4 |
1.8 |
1.8 |
1.8 |
1.8 |
11.8 |
22.4 |
23.8 |
26.1 |
28.7 |
403 |
919 |
1267 |
1598 |
1959 |
185 |
478 |
606 |
4528 |
858 |
|
50 |
1.0 |
1.4 |
1.8 |
1.8 |
1.9 |
2.0 |
13.2 |
25.2 |
26.8 |
29.7 |
32.9 |
554 |
1188 |
1675 |
2209 |
2733 |
241 |
558 |
731 |
6190 |
1160 |
|
70 |
1.1 |
1.4 |
1.9 |
1.9 |
2.0 |
2.1 |
15.0 |
22.2 |
25.7 |
30.0 |
36.2 |
755 |
1564 |
2260 |
2987 |
3735 |
317 |
683 |
939 |
8348 |
1533 |
|
95 |
1.1 |
1.5 |
2.0 |
2.0 |
2.1 |
2.3 |
16.9 |
25.2 |
29.1 |
34.2 |
40.3 |
1004 |
2069 |
3003 |
3977 |
4975 |
409 |
874 |
1210 |
11091 |
1987 |
|
120 |
1.2 |
1.5 |
2.1 |
2.1 |
2.3 |
2.4 |
18.5 |
28.2 |
32.4 |
37.2 |
44.7 |
1250 |
2592 |
3763 |
4983 |
6228 |
498 |
1082 |
1498 |
13880 |
2453 |
|
150 |
1.4 |
1.6 |
2.2 |
2.3 |
2.4 |
2.6 |
20.6 |
31.0 |
36.2 |
41.2 |
50.3 |
1558 |
3214 |
4700 |
6202 |
7777 |
619 |
1327 |
1869 |
17280 |
3059 |
|
185 |
1.6 |
1.6 |
2.3 |
2.4 |
2.6 |
2.8 |
22.7 |
36.8 |
40.4 |
46.2 |
58.6 |
1908 |
3978 |
5779 |
7655 |
9623 |
750 |
1650 |
2287 |
21355 |
3803 |
|
240 |
1.7 |
1.7 |
2.5 |
2.6 |
2.8 |
3.0 |
25.3 |
41.6 |
47.4 |
53.3 |
63.1 |
2450 |
5104 |
7456 |
9859 |
12326 |
947 |
2084 |
2926 |
27399 |
4776 |
|
300 |
1.8 |
1.8 |
2.7 |
2.8 |
3.0 |
3.2 |
27.9 |
46.4 |
50.1 |
59.4 |
68.2 |
3043 |
6328 |
9234 |
12260 |
15291 |
1163 |
2541 |
3554 |
33997 |
5824 |
|
400 |
2.0 |
1.9 |
|
3.1 |
3.3 |
3.6 |
31.6 |
|
57.2 |
68.4 |
83.1 |
4021 |
|
12224 |
16240 |
20305 |
1514 |
|
4651 |
36685 |
7683 |
|
500 |
2.2 |
2.0 |
|
3.3 |
3.3 |
|
35.0 |
|
74.2 |
82.2 |
|
5002 |
|
15136 |
20176 |
|
1869 |
|
5849 |
7554 |
|
|
630 |
2.4 |
2.2 |
|
|
|
|
39.3 |
|
|
|
|
6290 |
|
|
|
|
2342 |
|
|
|
|
|
800 |
2.6 |
2.3 |
|
|
|
|
44.8 |
|
|
|
|
7957 |
|
|
|
|
2943 |
|
|
|
|
|
1000 |
2.8 |
2.4 |
|
|
|
|
49.9 |
|
|
|
|
9897 |
|
|
|
|
3629 |
|
|
|
|
0.6/1KV XLPE/PVC Power cable (non-armored) YJV, YJLV
|
Conductor dimensions (mm2) |
Insulation thickness (mm) |
Nonmetallic sheath, unarmored cable |
|||||||||||||
|
Sheath thickness |
Outer diameter (approximate) |
Cable weight (Kg/km) |
|||||||||||||
|
mm |
mm |
Copper core |
Aluminum core |
||||||||||||
|
Phase line |
Null line |
Phase line |
Null line |
3+1C |
3+2C |
4+1C |
3+1C |
3+2C |
4+1C |
3+1C |
3+2C |
4+1C |
3+1C |
3+2C |
4+1C |
|
2.5 |
1.5 |
0.7 |
0.7 |
1.8 |
1.8 |
1.8 |
11.9 |
12.6 |
12.8 |
206 |
229 |
253 |
— |
— |
— |
|
4 |
2.5 |
0.7 |
0.7 |
1.8 |
1.8 |
1.8 |
12.9 |
13.7 |
14.0 |
268 |
302 |
323 |
178 |
196 |
197 |
|
6 |
4.0 |
0.7 |
0.7 |
1.8 |
1.8 |
1.8 |
14.2 |
15.1 |
15.4 |
352 |
402 |
428 |
215 |
240 |
237 |
|
10 |
6.0 |
0.7 |
0.7 |
1.8 |
1.8 |
1.8 |
16.5 |
17.5 |
18.1 |
517 |
584 |
645 |
290 |
321 |
328 |
|
16 |
10.0 |
0.7 |
0.7 |
1.8 |
1.8 |
1.8 |
19.2 |
20.5 |
21.1 |
761 |
865 |
955 |
396 |
437 |
444 |
|
25 |
16.0 |
0.9 |
0.7 |
1.8 |
1.8 |
1.8 |
22.4 |
23.9 |
24.7 |
1110 |
1278 |
1406 |
538 |
605 |
606 |
|
35 |
16.0 |
0.9 |
0.7 |
1.8 |
1.8 |
1.8 |
24.6 |
25.9 |
27.3 |
1402 |
1558 |
1805 |
647 |
709 |
731 |
|
50 |
25.0 |
1.0 |
0.9 |
1.8 |
1.9 |
1.9 |
28.0 |
29.9 |
31.3 |
1943 |
2243 |
2531 |
842 |
984 |
975 |
|
70 |
35.0 |
1.1 |
0.9 |
1.9 |
2.0 |
2.1 |
29.5 |
33.2 |
34.4 |
2645 |
3038 |
3412 |
1101 |
1273 |
1234 |
|
95 |
50.0 |
1.1 |
1.0 |
2.1 |
2.2 |
2.2 |
33.2 |
37.8 |
38.7 |
3554 |
4105 |
4551 |
1443 |
1679 |
1579 |
|
120 |
70.0 |
1.2 |
1.1 |
2.2 |
2.3 |
2.4 |
36.3 |
41.6 |
43.6 |
4504 |
5265 |
5791 |
1793 |
2112 |
1993 |
|
150 |
70.0 |
1.4 |
1.1 |
2.3 |
2.4 |
2.5 |
39.7 |
45.9 |
47.9 |
5425 |
6200 |
7018 |
2147 |
2480 |
2380 |
|
185 |
95.0 |
1.6 |
1.1 |
2.5 |
2.6 |
2.7 |
45.4 |
51.4 |
53.3 |
6781 |
7792 |
8720 |
2683 |
3095 |
2946 |
|
240 |
120.0 |
1.7 |
1.2 |
2.7 |
2.8 |
2.9 |
53.0 |
58.6 |
60.1 |
8708 |
9960 |
11172 |
3412 |
3907 |
3701 |
|
300 |
150.0 |
1.8 |
1.4 |
2.9 |
3.0 |
3.1 |
58.3 |
65.4 |
62.9 |
10818 |
12394 |
13827 |
4192 |
4823 |
4480 |
|
400 |
185.0 |
2.0 |
1.6 |
3.1 |
3.3 |
3.4 |
67.5 |
74.2 |
67.8 |
14163 |
16132 |
18093 |
5423 |
6225 |
5725 |
0.6/1KV XLPE/PVC Power cable (steel wire armored) YJV32, YJLV32
|
Conductor dimensions (mm2) |
nsulation thickness (mm) |
Armored wire cable |
|||||||||||||||||||||||
|
PVC bedding thickness |
Armored wire Outer diameter |
Sheath thickness |
Outer diameter (approximate) |
Cable weight (approximate) (Kg/km) |
Cable weight (approximate) (Kg/km) |
||||||||||||||||||||
|
mm |
mm |
mm |
mm |
Copper core |
Aluminum core |
||||||||||||||||||||
|
2C |
3C |
4C |
5C |
2C |
3C |
4C |
5C |
2C |
3C |
4C |
5C |
2C |
3C |
4C |
5C |
2C |
3C |
4C |
5C |
2C |
3C |
4C |
5C |
||
|
1.5 |
0.7 |
1.0 |
1.0 |
1.0 |
1.0 |
0.8 |
0.8 |
0.8 |
0.8 |
1.8 |
1.8 |
1.8 |
1.8 |
14.2 |
14.6 |
15.3 |
16.1 |
343 |
367 |
414 |
445 |
324 |
339 |
377 |
399 |
|
2.5 |
0.7 |
1.0 |
1.0 |
1.0 |
1.0 |
0.8 |
0.8 |
0.8 |
0.8 |
1.8 |
1.8 |
1.8 |
1.8 |
15.0 |
15.4 |
16.3 |
17.2 |
317 |
421 |
485 |
528 |
286 |
374 |
423 |
450 |
|
4 |
0.7 |
1.0 |
1.0 |
1.0 |
1.0 |
0.8 |
0.8 |
0.8 |
1.25 |
1.8 |
1.8 |
1.8 |
1.8 |
15.9 |
16.5 |
17.4 |
19.4 |
369 |
497 |
576 |
782 |
319 |
422 |
476 |
658 |
|
6 |
0.7 |
1.0 |
1.0 |
1.0 |
1.0 |
0.8 |
0.8 |
1.25 |
1.25 |
1.8 |
1.8 |
1.8 |
1.8 |
16.9 |
17.6 |
19.5 |
20.7 |
443 |
587 |
816 |
929 |
368 |
475 |
666 |
742 |
|
10 |
0.7 |
1.0 |
1.0 |
1.0 |
1.0 |
1.25 |
1.25 |
1.25 |
1.25 |
1.8 |
1.8 |
1.8 |
1.8 |
20.1 |
20.9 |
22.3 |
23.8 |
720 |
927 |
1098 |
1284 |
595 |
738 |
847 |
969 |
|
16 |
0.7 |
1.0 |
1.0 |
1.0 |
1.0 |
1.25 |
1.25 |
1.6 |
1.6 |
1.8 |
1.8 |
1.8 |
1.8 |
22.3 |
23.3 |
25.6 |
27.5 |
925 |
1217 |
1588 |
1831 |
723 |
915 |
1186 |
1328 |
|
25 |
0.9 |
1.0 |
1.0 |
1.0 |
1.0 |
1.6 |
1.6 |
1.6 |
1.6 |
1.8 |
1.8 |
1.8 |
1.8 |
25.8 |
27.0 |
29.0 |
31.3 |
1350 |
1746 |
2091 |
2455 |
1035 |
1274 |
1462 |
1669 |
|
35 |
0.9 |
1.0 |
1.0 |
1.0 |
1.0 |
1.6 |
1.6 |
1.6 |
1.6 |
1.8 |
1.8 |
1.9 |
1.9 |
28.2 |
29.6 |
32.1 |
34.7 |
1642 |
2161 |
2586 |
3096 |
1202 |
1500 |
1705 |
1995 |
|
50 |
1.0 |
1.0 |
1.0 |
1.0 |
1.2 |
1.6 |
1.6 |
1.6 |
2.0 |
1.8 |
1.9 |
2.0 |
2.1 |
31.0 |
32.8 |
35.7 |
40.1 |
2053 |
2685 |
3322 |
4332 |
1424 |
1741 |
2064 |
2759 |
|
70 |
1.1 |
1.0 |
1.2 |
1.2 |
1.2 |
1.6 |
2.0 |
2.0 |
2.0 |
2.0 |
2.0 |
2.2 |
2.3 |
28.2 |
32.9 |
37.4 |
43.6 |
2272 |
3484 |
4417 |
5448 |
1389 |
2160 |
2651 |
3242 |
|
95 |
1.1 |
1.2 |
1.2 |
1.2 |
1.4 |
2.0 |
2.0 |
2.0 |
2.5 |
2.1 |
2.2 |
2.3 |
2.5 |
32.4 |
36.5 |
41.6 |
49.5 |
3126 |
4374 |
5571 |
7465 |
1929 |
2577 |
3175 |
4471 |
|
120 |
1.2 |
1.2 |
1.2 |
1.4 |
1.4 |
2.0 |
2.0 |
2.5 |
2.5 |
2.2 |
2.3 |
2.5 |
2.6 |
35.4 |
39.8 |
46.4 |
53.9 |
3755 |
5291 |
7287 |
8986 |
2241 |
3021 |
4260 |
5203 |
|
150 |
1.4 |
1.2 |
1.4 |
1.4 |
1.4 |
2.0 |
2.5 |
2.5 |
2.5 |
2.3 |
2.5 |
2.7 |
2.8 |
38.2 |
45.4 |
50.6 |
59.5 |
4485 |
6912 |
8738 |
10850 |
2594 |
4075 |
4955 |
6121 |
|
185 |
1.6 |
1.4 |
1.4 |
1.4 |
1.6 |
2.5 |
2.5 |
2.5 |
2.5 |
2.5 |
2.6 |
2.8 |
3.0 |
46.0 |
49.6 |
55.4 |
68.2 |
5999 |
8243 |
10431 |
13220 |
3666 |
4743 |
5766 |
7388 |
|
240 |
1.7 |
1.4 |
1.6 |
1.6 |
1.6 |
2.5 |
2.5 |
2.5 |
3.15 |
2.7 |
2.8 |
3.0 |
3.3 |
50.8 |
57.0 |
62.9 |
74.2 |
7325 |
10375 |
13098 |
17103 |
4298 |
5835 |
7045 |
9537 |
|
300 |
1.8 |
1.6 |
1.6 |
1.6 |
1.8 |
2.5 |
2.5 |
2.5 |
3.15 |
2.9 |
3.0 |
3.2 |
3.5 |
56.0 |
59.7 |
69.0 |
79.7 |
8805 |
12311 |
15861 |
20414 |
5018 |
6631 |
8287 |
10947 |
|
400 |
2.0 |
|
1.6 |
1.8 |
|
|
2.5 |
3.15 |
|
|
3.3 |
3.6 |
|
|
66.8 |
79.9 |
|
|
15679 |
21307 |
|
|
8105 |
11209 |
|
|
500 |
2.2 |
|
1.8 |
|
|
|
3.15 |
|
|
|
3.5 |
|
|
|
85.5 |
|
|
|
20806 |
|
|
|
11339 |
|
|
0.6/1KV XLPE/PVC Power cable (steel tape armored) YJV22, YJLV22
|
Conductor dimensions (mm2) |
nsulation thickness (mm) |
Steel tape armoured cable |
|||||||||||||||||||||||
|
PVC bedding thickness |
Armored wire Outer diameter |
Sheath thickness |
Outer diameter (approximate) |
Cable weight (approximate) (Kg/km) |
Cable weight (approximate) (Kg/km) |
||||||||||||||||||||
|
mm |
mm |
mm |
mm |
Copper core |
Aluminum core |
||||||||||||||||||||
|
2C |
3C |
4C |
5C |
2C |
3C |
4C |
5C |
2C |
3C |
4C |
5C |
2C |
3C |
4C |
5C |
2C |
3C |
4C |
5C |
2C |
3C |
4C |
5C |
||
|
1.5 |
0.7 |
0.9 |
0.9 |
0.9 |
0.9 |
0.2 |
0.2 |
0.2 |
0.2 |
1.8 |
1.8 |
1.8 |
1.8 |
11.8 |
12.2 |
12.9 |
13.7 |
215 |
236 |
274 |
308 |
196 |
208 |
237 |
261 |
|
2.5 |
0.7 |
0.9 |
0.9 |
0.9 |
0.9 |
0.2 |
0.2 |
0.2 |
0.2 |
1.8 |
1.8 |
1.8 |
1.8 |
12.6 |
13.0 |
13.9 |
14.8 |
250 |
281 |
333 |
378 |
218 |
234 |
271 |
300 |
|
4 |
0.7 |
0.9 |
0.9 |
0.9 |
0.9 |
0.2 |
0.2 |
0.2 |
0.2 |
1.8 |
1.8 |
1.8 |
1.8 |
13.5 |
14.1 |
15.0 |
16.1 |
296 |
346 |
412 |
475 |
246 |
271 |
312 |
351 |
|
6 |
0.7 |
0.9 |
0.9 |
0.9 |
0.9 |
0.2 |
0.2 |
0.2 |
0.2 |
1.8 |
1.8 |
1.8 |
1.8 |
14.5 |
15.2 |
16.2 |
17.4 |
361 |
424 |
513 |
597 |
286 |
312 |
363 |
410 |
|
10 |
0.7 |
0.9 |
0.9 |
0.9 |
0.9 |
0.2 |
0.2 |
0.2 |
0.2 |
1.8 |
1.8 |
1.8 |
1.8 |
16.8 |
17.6 |
19.0 |
20.5 |
492 |
600 |
737 |
866 |
366 |
411 |
485 |
552 |
|
16 |
0.7 |
0.9 |
0.9 |
0.9 |
0.9 |
0.2 |
0.2 |
0.2 |
0.2 |
1.8 |
1.8 |
1.8 |
1.8 |
19.0 |
20.0 |
21.6 |
23.5 |
663 |
840 |
1032 |
1225 |
462 |
538 |
629 |
722 |
|
25 |
0.9 |
0.9 |
0.9 |
0.9 |
0.9 |
0.2 |
0.2 |
0.2 |
0.2 |
1.8 |
1.8 |
1.8 |
1.8 |
21.8 |
23.0 |
25.0 |
27.3 |
910 |
1162 |
1450 |
1740 |
595 |
690 |
821 |
954 |
|
35 |
0.9 |
0.9 |
0.9 |
0.9 |
0.9 |
0.2 |
0.2 |
0.2 |
0.2 |
1.8 |
1.8 |
1.8 |
1.9 |
24.2 |
25.6 |
27.9 |
30.7 |
1155 |
1506 |
1861 |
2265 |
715 |
845 |
980 |
1164 |
|
50 |
1.0 |
0.9 |
0.9 |
0.9 |
0.9 |
0.2 |
0.2 |
0.2 |
0.2 |
1.8 |
1.8 |
1.9 |
2.0 |
27.0 |
28.6 |
31.5 |
34.7 |
1507 |
1947 |
2510 |
3067 |
877 |
1003 |
1252 |
1494 |
|
70 |
1.1 |
0.9 |
0.9 |
0.9 |
1.2 |
0.2 |
0.2 |
0.2 |
0.5 |
1.9 |
2.0 |
2.1 |
2.2 |
24.0 |
27.7 |
32.0 |
40.0 |
1809 |
2531 |
3304 |
4549 |
927 |
1207 |
1539 |
2342 |
|
95 |
1.1 |
0.9 |
1.2 |
1.2 |
1.2 |
0.2 |
0.5 |
0.5 |
0.5 |
2.0 |
2.2 |
2.3 |
2.4 |
27.0 |
33.1 |
38.2 |
44.1 |
2347 |
3673 |
4764 |
5877 |
1149 |
1876 |
2368 |
2882 |
|
120 |
1.2 |
1.2 |
1.2 |
1.2 |
1.2 |
0.5 |
0.5 |
0.5 |
0.5 |
2.2 |
2.3 |
2.4 |
2.6 |
32.0 |
36.4 |
41.0 |
48.7 |
3256 |
4507 |
5815 |
7249 |
1743 |
2238 |
2789 |
3466 |
|
150 |
1.4 |
1.2 |
1.2 |
1.4 |
1.4 |
0.5 |
0.5 |
0.5 |
0.5 |
2.3 |
2.4 |
2.6 |
2.7 |
34.8 |
40.0 |
45.6 |
54.5 |
3951 |
5509 |
7189 |
8953 |
2060 |
2672 |
3406 |
4225 |
|
185 |
1.6 |
1.2 |
1.2 |
1.4 |
1.4 |
0.5 |
0.5 |
0.5 |
0.5 |
2.4 |
2.6 |
2.7 |
2.9 |
40.6 |
44.4 |
50.4 |
62.8 |
4844 |
6701 |
8734 |
10990 |
2511 |
3202 |
4068 |
5158 |
|
240 |
1.7 |
1.4 |
1.4 |
1.4 |
1.4 |
0.5 |
0.5 |
0.5 |
0.5 |
2.6 |
2.7 |
2.9 |
3.1 |
45.8 |
51.6 |
57.5 |
67.3 |
6127 |
8563 |
11100 |
13794 |
3100 |
4023 |
5047 |
6228 |
|
300 |
1.8 |
1.4 |
1.4 |
1.4 |
1.4 |
0.5 |
0.5 |
0.5 |
0.5 |
2.8 |
2.9 |
3.1 |
3.4 |
50.6 |
54.3 |
63.6 |
72.6 |
7408 |
10400 |
13640 |
16907 |
3622 |
4719 |
6067 |
7440 |
|
400 |
2.0 |
|
1.4 |
1.4 |
|
|
0.5 |
0.5 |
|
|
3.2 |
3.4 |
|
|
61.4 |
72.6 |
|
|
13550 |
17825 |
|
|
5976 |
7727 |
|
|
500 |
|
|
1.4 |
|
|
|
0.5 |
|
|
|
3.4 |
|
|
|
78.4 |
|
|
|
17038 |
|
|
|
7571 |
|
|
0.6/1KV XLPE/PVC Power cable (steel wire armored) YJV32, YJLV22
|
Conductor dimensions (mm2) |
Insulation thickness (mm) |
Armored wire cable |
|||||||||||||||||||
|
PVC bedding thickness |
Armored wire outer diameter |
Sheath thickness |
Outer diameter (approximate) |
Cable weight (approximate) (Kg/km) |
Cable weight (approximate) (Kg/km) |
||||||||||||||||
|
mm |
mm |
mm |
mm |
Copper core |
Aluminum core |
||||||||||||||||
|
Phase line |
Null line |
Phase line |
Null line |
3+1C |
3+2C |
4+1C |
3+1C |
3+2C |
4+1C |
3+1C |
3+2C |
4+1C |
3+1C |
3+2C |
4+1C |
3+1C |
3+2C |
4+1C |
3+1C |
3+2C |
4+1C |
|
2.5 |
1.5 |
0.7 |
0.7 |
1.0 |
1.0 |
1.0 |
0.8 |
0.8 |
0.8 |
1.8 |
1.8 |
1.8 |
16.1 |
16.8 |
17.0 |
468 |
504 |
533 |
— |
— |
— |
|
4 |
2.5 |
0.7 |
0.7 |
1.0 |
1.0 |
1.0 |
0.8 |
1.25 |
1.25 |
1.8 |
1.8 |
1.8 |
17.1 |
18.8 |
19.1 |
549 |
730 |
753 |
458 |
624 |
638 |
|
6 |
4.0 |
0.7 |
0.7 |
1.0 |
1.0 |
1.0 |
1.25 |
1.25 |
1.25 |
1.8 |
1.8 |
1.8 |
19.3 |
20.2 |
20.5 |
794 |
869 |
907 |
657 |
707 |
733 |
|
10 |
6.0 |
0.7 |
0.7 |
1.0 |
1.0 |
1.0 |
1.25 |
1.25 |
1.25 |
1.8 |
1.8 |
1.8 |
21.6 |
22.6 |
23.2 |
1023 |
1117 |
1201 |
797 |
853 |
912 |
|
16 |
10.0 |
0.7 |
0.7 |
1.0 |
1.0 |
1.0 |
1.25 |
1.6 |
1.6 |
1.8 |
1.8 |
1.8 |
24.3 |
26.3 |
26.9 |
1345 |
1640 |
1749 |
980 |
1212 |
1284 |
|
25 |
16.0 |
0.9 |
0.7 |
1.0 |
1.0 |
1.0 |
1.6 |
1.6 |
1.6 |
1.8 |
1.8 |
1.8 |
28.2 |
29.7 |
30.5 |
1946 |
2172 |
2322 |
1374 |
1499 |
1592 |
|
35 |
16.0 |
0.9 |
0.7 |
1.0 |
1.0 |
1.0 |
1.6 |
1.6 |
1.6 |
1.8 |
1.8 |
1.9 |
30.4 |
31.7 |
33.3 |
2317 |
2515 |
2835 |
1562 |
1665 |
1859 |
|
50 |
25.0 |
1.0 |
0.9 |
1.0 |
1.0 |
1.2 |
1.6 |
1.6 |
2.0 |
1.9 |
2.0 |
2.1 |
34.0 |
35.9 |
38.7 |
2994 |
3357 |
4021 |
1893 |
2098 |
2605 |
|
70 |
35.0 |
1.1 |
0.9 |
1.2 |
1.2 |
1.2 |
2.0 |
2.0 |
2.0 |
2.1 |
2.1 |
2.2 |
36.9 |
40.4 |
41.6 |
4044 |
4577 |
5014 |
2499 |
2813 |
3029 |
|
95 |
50.0 |
1.1 |
1.0 |
1.2 |
1.2 |
1.2 |
2.0 |
2.0 |
2.0 |
2.2 |
2.3 |
2.4 |
40.4 |
45.0 |
46.1 |
5095 |
5837 |
6362 |
2984 |
3411 |
3651 |
|
120 |
70.0 |
1.2 |
1.1 |
1.2 |
1.4 |
1.4 |
2.0 |
2.5 |
2.5 |
2.4 |
2.5 |
2.6 |
43.7 |
50.8 |
52.8 |
6193 |
7821 |
8453 |
3482 |
4668 |
4985 |
|
150 |
70.0 |
1.4 |
1.1 |
1.4 |
1.4 |
1.4 |
2.5 |
2.5 |
2.5 |
2.5 |
2.6 |
2.7 |
48.9 |
55.1 |
57.1 |
7839 |
8969 |
9893 |
4560 |
5249 |
5669 |
|
185 |
95.0 |
1.6 |
1.1 |
1.4 |
1.4 |
1.6 |
2.5 |
2.5 |
2.5 |
2.7 |
2.8 |
2.9 |
54.6 |
60.6 |
62.9 |
9506 |
10871 |
11997 |
5408 |
6174 |
6732 |
|
240 |
120.0 |
1.7 |
1.2 |
1.6 |
1.6 |
1.6 |
2.5 |
2.5 |
2.5 |
2.9 |
3.0 |
3.1 |
62.6 |
68.2 |
69.7 |
11941 |
13507 |
14820 |
6645 |
7454 |
8010 |
|
300 |
150.0 |
1.8 |
1.4 |
1.6 |
1.6 |
1.6 |
2.5 |
2.5 |
3.15 |
3.1 |
3.2 |
3.4 |
67.9 |
75.0 |
74.0 |
14363 |
16353 |
18430 |
7737 |
8781 |
9911 |
|
400 |
185.0 |
2.0 |
1.6 |
1.6 |
1.8 |
1.8 |
3.15 |
3.15 |
3.15 |
3.4 |
3.5 |
3.7 |
78.6 |
85.5 |
79.3 |
19145 |
21623 |
23153 |
10405 |
11716 |
11889 |
0.6/1KV XLPE/PVC Power cable (steel tape armored) YJV22, YJLV22
|
Conductor dimensions (mm2) |
Insulation thickness (mm) |
Steel tape armoured cable |
|||||||||||||||||||
|
PVC bedding thickness |
Armored wire outer diameter |
Sheath thickness |
Outer diameter (approximate) |
Cable weight (approximate) (Kg/km) |
Cable weight (approximate) (Kg/km) |
||||||||||||||||
|
mm |
mm |
mm |
mm |
Copper core |
Aluminum core |
||||||||||||||||
|
Phase line |
Null line |
Phase line |
Null line |
3+1C |
3+2C |
4+1C |
3+1C |
3+2C |
4+1C |
3+1C |
3+2C |
4+1C |
3+1C |
3+2C |
4+1C |
3+1C |
3+2C |
4+1C |
3+1C |
3+2C |
4+1C |
|
2.5 |
1.5 |
0.7 |
0.7 |
0.9 |
0.9 |
0.9 |
0.2 |
0.2 |
0.2 |
1.8 |
1.8 |
1.8 |
13.9 |
14.6 |
15.1 |
254 |
280 |
307 |
— |
— |
— |
|
4 |
2.5 |
0.7 |
0.7 |
0.9 |
0.9 |
0.9 |
0.2 |
0.2 |
0.2 |
1.8 |
1.8 |
1.8 |
15.2 |
15.8 |
16.3 |
322 |
357 |
381 |
232 |
251 |
266 |
|
6 |
4.0 |
0.7 |
0.7 |
0.9 |
0.9 |
0.9 |
0.2 |
0.2 |
0.2 |
1.8 |
1.8 |
1.8 |
16.4 |
17.1 |
17.6 |
410 |
461 |
491 |
273 |
299 |
316 |
|
10 |
6.0 |
0.7 |
0.7 |
0.9 |
0.9 |
0.9 |
0.2 |
0.2 |
0.2 |
1.8 |
1.8 |
1.8 |
18.6 |
19.8 |
20.4 |
582 |
655 |
718 |
356 |
392 |
429 |
|
16 |
10.0 |
0.7 |
0.7 |
0.9 |
0.9 |
0.9 |
0.2 |
0.2 |
0.2 |
1.8 |
1.8 |
1.8 |
21.0 |
22.3 |
23.0 |
834 |
943 |
1036 |
469 |
516 |
570 |
|
25 |
16.0 |
0.9 |
0.7 |
0.9 |
0.9 |
0.9 |
0.2 |
0.2 |
0.2 |
1.8 |
1.8 |
1.8 |
24.5 |
26.3 |
27.3 |
1198 |
1374 |
1506 |
625 |
700 |
776 |
|
35 |
16.0 |
0.9 |
0.7 |
0.9 |
0.9 |
0.9 |
0.2 |
0.2 |
0.2 |
1.8 |
1.8 |
1.8 |
24.2 |
27.5 |
27.6 |
1477 |
1655 |
1896 |
722 |
805 |
921 |
|
50 |
25.0 |
1.0 |
0.9 |
0.9 |
0.9 |
0.9 |
0.2 |
0.2 |
0.2 |
1.9 |
1.9 |
2.0 |
28.7 |
31.1 |
32.4 |
2052 |
2351 |
2657 |
950 |
1092 |
1241 |
|
70 |
35.0 |
1.1 |
0.9 |
0.9 |
0.9 |
1.2 |
0.2 |
0.2 |
0.5 |
2.0 |
2.1 |
2.2 |
31.9 |
35.9 |
38.3 |
2775 |
3186 |
3621 |
1231 |
1421 |
1635 |
|
95 |
50.0 |
1.1 |
1.0 |
1.2 |
1.2 |
1.2 |
0.5 |
0.5 |
0.5 |
2.2 |
2.3 |
2.3 |
37.1 |
41.7 |
42.6 |
3756 |
4333 |
4784 |
1645 |
1907 |
2073 |
|
120 |
70.0 |
1.2 |
1.1 |
1.2 |
1.2 |
1.2 |
0.5 |
0.5 |
0.5 |
2.3 |
2.4 |
2.5 |
40.2 |
45.5 |
47.5 |
4724 |
5514 |
6053 |
2013 |
2362 |
2585 |
|
150 |
70.0 |
1.4 |
1.1 |
1.2 |
1.2 |
1.4 |
0.5 |
0.5 |
0.5 |
2.5 |
2.5 |
2.6 |
43.8 |
50.2 |
52.3 |
5684 |
6479 |
7351 |
2406 |
2759 |
3126 |
|
185 |
95.0 |
1.6 |
1.1 |
1.4 |
1.4 |
1.4 |
0.5 |
0.5 |
0.5 |
2.6 |
2.7 |
2.8 |
49.8 |
55.7 |
57.7 |
7098 |
8147 |
9089 |
3000 |
3450 |
3824 |
|
240 |
120.0 |
1.7 |
1.2 |
1.4 |
1.4 |
1.4 |
0.5 |
0.5 |
0.5 |
2.8 |
2.9 |
3.0 |
57.4 |
62.8 |
64.5 |
9075 |
10362 |
11586 |
3779 |
4309 |
4776 |
|
300 |
150.0 |
1.8 |
1.4 |
1.4 |
1.4 |
1.4 |
0.5 |
0.5 |
0.5 |
3.0 |
3.1 |
3.2 |
62.3 |
73.5 |
75.6 |
11216 |
12895 |
14381 |
4590 |
5324 |
5862 |
|
400 |
185.0 |
2.0 |
1.6 |
1.4 |
1.4 |
1.4 |
0.5 |
0.5 |
0.8 |
3.3 |
3.4 |
3.6 |
74.0 |
81.2 |
76.2 |
14688 |
16680 |
18656 |
5948 |
6774 |
7391 |
1.8/3 (3.6) KV XLPE/PVC single core (non-armored) YJV, YJLV
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core cable weight (kg/km) |
Aluminum core cable weight (kg/km) |
Insulation resistance 20°C (Min) (MΩ/km) |
||
|
Cross sectional area (mm2) |
Structure |
Oute diameter (mm) |
|||||||
|
10 |
Compact round |
3.9 |
2.0 |
0.12 |
1.4 |
12.9 |
252 |
189 |
500 |
|
16 |
Compact round |
5.0 |
2.0 |
0.12 |
1.4 |
14.0 |
326 |
226 |
500 |
|
25 |
Compact round |
6.0 |
2.0 |
0.12 |
1.4 |
15.0 |
426 |
269 |
500 |
|
35 |
Compact round |
7.2 |
2.0 |
0.12 |
1.4 |
16.2 |
538 |
319 |
500 |
|
50 |
Compact round |
8.4 |
2.0 |
0.12 |
1.5 |
17.6 |
702 |
390 |
500 |
|
70 |
Compact round |
10.0 |
2.0 |
0.12 |
1.5 |
19.2 |
914 |
475 |
500 |
|
95 |
Compact round |
11.7 |
2.0 |
0.12 |
1.6 |
21.1 |
1181 |
586 |
500 |
|
120 |
Compact round |
13.1 |
2.0 |
0.12 |
1.6 |
22.5 |
1433 |
681 |
500 |
|
150 |
Compact round |
14.6 |
2.0 |
0.12 |
1.7 |
24.2 |
1743 |
803 |
500 |
|
185 |
Compact round |
16.3 |
2.0 |
0.12 |
1.7 |
25.9 |
2091 |
933 |
500 |
|
240 |
Compact round |
18.5 |
2.0 |
0.12 |
1.8 |
28.3 |
2643 |
1140 |
500 |
|
300 |
Compact round |
20.7 |
2.0 |
0.12 |
1.9 |
30.7 |
3244 |
1364 |
500 |
|
400 |
Compact round |
23.8 |
2.0 |
0.12 |
2.0 |
34.0 |
4225 |
1718 |
500 |
|
500 |
Compact round |
26.6 |
2.2 |
0.12 |
2.1 |
37.4 |
5227 |
2093 |
500 |
|
630 |
Compact round |
30.1 |
2.4 |
0.12 |
2.2 |
41.5 |
6523 |
2574 |
500 |
|
800 |
Compact round |
35.0 |
2.6 |
0.12 |
2.3 |
47.0 |
8221 |
3207 |
500 |
|
1000 |
Milliken conductor |
39.5 |
2.8 |
0.12 |
2.5 |
52.3 |
10371 |
4104 |
500 |
1.8/3 (3.6) KV XLPE/PVC 3 cores (non-armored) YJV, YJLV
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core cable weight (kg/km) |
Aluminum core cable weight (kg/km) |
Insulation resistance 20°C (Min) (MΩ/km) |
||
|
Cross sectional area (mm2) |
Structure |
Oute diameter (mm) |
|||||||
|
10 |
Compact round |
3.9 |
2.0 |
0.1 |
1.8 |
22.8 |
700 |
511 |
500 |
|
16 |
Compact round |
5.0 |
2.0 |
0.1 |
1.8 |
25.2 |
964 |
662 |
500 |
|
25 |
Compact round |
6.0 |
2.0 |
0.1 |
1.8 |
27.3 |
1255 |
783 |
500 |
|
35 |
Compact round |
7.2 |
2.0 |
0.1 |
1.9 |
30.1 |
1623 |
962 |
500 |
|
50 |
Compact round |
8.4 |
2.0 |
0.1 |
2.0 |
32.9 |
2016 |
1072 |
500 |
|
70 |
Compact round |
10.0 |
2.0 |
0.1 |
2.1 |
36.6 |
2660 |
1336 |
500 |
|
95 |
Compact round |
11.7 |
2.0 |
0.1 |
2.2 |
40.4 |
3444 |
1647 |
500 |
|
120 |
Compact round |
13.1 |
2.0 |
0.1 |
2.3 |
43.6 |
4216 |
1946 |
500 |
|
150 |
Compact round |
14.6 |
2.0 |
0.1 |
2.4 |
47.1 |
5141 |
2304 |
500 |
|
185 |
Compact round |
16.3 |
2.0 |
0.1 |
2.5 |
50.9 |
6207 |
2707 |
500 |
|
240 |
Compact round |
18.5 |
2.0 |
0.1 |
2.7 |
56.1 |
7874 |
3335 |
500 |
|
300 |
Compact round |
20.7 |
2.0 |
0.1 |
2.8 |
61.0 |
9666 |
3986 |
500 |
|
400 |
Compact round |
23.8 |
2.0 |
0.1 |
3.1 |
68.3 |
12659 |
5086 |
500 |
|
500 |
Compact round |
26.6 |
2.2 |
0.1 |
3.3 |
75.6 |
15695 |
6228 |
500 |
1.8/3 (3.6)KV XLPE/PVC 3 cores (steel wire armored) YJV32, YJLV32
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
PVC bedding thickness (mm) |
Armored wire outer diameter (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core cable weight (kg/km) |
Aluminum core cable weight (kg/km) |
Insulation resistance 20°C (Min) (MΩ/km) |
||
|
Cross sectional area (mm2) |
Structure |
Oute diameter (mm) |
|||||||||
|
10 |
Compact round |
3.9 |
2.0 |
0.1 |
1.2 |
1.6 |
1.8 |
29.0 |
1640 |
1451 |
500 |
|
16 |
Compact round |
5.0 |
2.0 |
0.1 |
1.2 |
1.6 |
1.9 |
31.6 |
2010 |
1708 |
500 |
|
25 |
Compact round |
6.0 |
2.0 |
0.1 |
1.2 |
1.6 |
2.0 |
33.9 |
2407 |
1935 |
500 |
|
35 |
Compact round |
7.2 |
2.0 |
0.1 |
1.2 |
2.0 |
2.1 |
37.5 |
3123 |
2462 |
500 |
|
50 |
Compact round |
8.4 |
2.0 |
0.1 |
1.2 |
2.0 |
2.2 |
40.3 |
3652 |
2709 |
500 |
|
70 |
Compact round |
10.0 |
2.0 |
0.1 |
1.2 |
2.0 |
2.3 |
44.0 |
4469 |
3145 |
500 |
|
95 |
Compact round |
11.7 |
2.0 |
0.1 |
1.3 |
2.5 |
2.5 |
49.6 |
6012 |
4215 |
500 |
|
120 |
Compact round |
13.1 |
2.0 |
0.1 |
1.3 |
2.5 |
2.6 |
52.8 |
6995 |
4725 |
500 |
|
150 |
Compact round |
14.6 |
2.0 |
0.1 |
1.4 |
2.5 |
2.7 |
56.5 |
8160 |
5323 |
500 |
|
185 |
Compact round |
16.3 |
2.0 |
0.1 |
1.5 |
2.5 |
2.8 |
60.5 |
9474 |
5974 |
500 |
|
240 |
Compact round |
18.5 |
2.0 |
0.1 |
1.6 |
2.5 |
3.0 |
65.9 |
11498 |
6958 |
500 |
|
300 |
Compact round |
20.7 |
2.0 |
0.1 |
1.7 |
2.5 |
3.2 |
71.2 |
13636 |
7956 |
500 |
|
400 |
Compact round |
23.8 |
2.0 |
0.1 |
1.8 |
3.15 |
3.5 |
80.0 |
18022 |
10448 |
500 |
|
500 |
Compact round |
26.6 |
2.2 |
0.1 |
1.9 |
3.15 |
3.7 |
87.5 |
21634 |
12167 |
500 |
1.8/3 (3.6)KV XLPE/PVC 3 cores (steel tape armored) YJV22, YJLV22
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
PVC bedding thickness (mm) |
Armored tape outer diameter (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core cable weight (kg/km) |
Aluminum core cable weight (kg/km) |
Insulation resistance 20°C (Min) (MΩ/km) |
||
|
Cross sectional area (mm2) |
Structure |
Oute diameter (mm) |
|||||||||
|
10 |
Compact round |
3.9 |
2.0 |
0.1 |
1.2 |
0.2 |
1.8 |
26.0 |
988 |
799 |
500 |
|
16 |
Compact round |
5.0 |
2.0 |
0.1 |
1.2 |
0.2 |
1.8 |
28.4 |
1281 |
979 |
500 |
|
25 |
Compact round |
6.0 |
2.0 |
0.1 |
1.2 |
0.2 |
1.9 |
30.7 |
1613 |
1141 |
500 |
|
35 |
Compact round |
7.2 |
2.0 |
0.1 |
1.2 |
0.2 |
2.0 |
33.5 |
2015 |
1354 |
500 |
|
50 |
Compact round |
8.4 |
2.0 |
0.1 |
1.2 |
0.2 |
2.1 |
36.3 |
2443 |
1499 |
500 |
|
70 |
Compact round |
10.0 |
2.0 |
0.1 |
1.2 |
0.5 |
2.2 |
41.2 |
3520 |
2196 |
500 |
|
95 |
Compact round |
11.7 |
2.0 |
0.1 |
1.3 |
0.5 |
2.3 |
45.2 |
4412 |
2615 |
500 |
|
120 |
Compact round |
13.1 |
2.0 |
0.1 |
1.3 |
0.5 |
2.4 |
48.4 |
5257 |
2987 |
500 |
|
150 |
Compact round |
14.6 |
2.0 |
0.1 |
1.4 |
0.5 |
2.6 |
52.3 |
6312 |
3475 |
500 |
|
185 |
Compact round |
16.3 |
2.0 |
0.1 |
1.5 |
0.5 |
2.7 |
56.3 |
7496 |
3997 |
500 |
|
240 |
Compact round |
18.5 |
2.0 |
0.1 |
1.6 |
0.5 |
2.9 |
61.7 |
9319 |
4780 |
500 |
|
300 |
Compact round |
20.7 |
2.0 |
0.1 |
1.7 |
0.5 |
3.0 |
66.8 |
11265 |
5585 |
500 |
|
400 |
Compact round |
23.8 |
2.0 |
0.1 |
1.8 |
0.5 |
3.3 |
74.3 |
14476 |
6903 |
500 |
|
500 |
Compact round |
26.6 |
2.2 |
0.1 |
1.9 |
0.5 |
3.5 |
81.8 |
17738 |
8271 |
500 |
MV cable: 3.6kV – 35kV power cable
The product is applicable for AC 50 Hz transmission and distribution lines with rated voltage of 26/35 KV or below. The mechanical properties and electrical performance of cables meet the requirements of national standard GB/T12706-2008 and international standards IEC60502-2.
Operating characteristics
Laying temperature: ≥0°C;
Cable conductor long-term allowable working temperature: PVC insulated ≤70°C, XLPE insulated ≤90°C;
Maximum operating temperature in case of short-circuit: PVC insulated ≤160°C, XLPE insulation ≤ 250°C;
Cable bending radius:
|
Item |
Single-core |
Three-core |
||
|
Non-armored |
Armored |
Non-armored |
Armored |
|
|
Installation |
20D |
15D |
15D |
12D |
|
Close to the terminal and connection box |
15D |
12D |
12D |
10D |
Note: D is the cable diameter
cable models, names, and laying conditions
|
Model |
Name |
Laying Occasion |
|
|
Copper core |
Aluminum core |
||
|
YJV |
YJLV |
XLPE insulated PVC sheathed power cable |
Laid indoors, and in tunnels and pipelines |
|
YJY |
YJLY |
XLPE insulated PE sheathed power cable |
|
|
YJV22 |
YJLV22 |
XLPE insulated steel tape armored PVC sheathed power cable |
Adapt for buried laying, not suitable for in-pipe laying |
|
YJV23 |
YJLV23 |
XLPE insulated steel tape armored PE sheathed power cable |
|
|
YJV32 |
YJLV32 |
XLPE insulated thin steel wire armored PVC sheathed power cable |
Laid on riverbeds of rivers or shallow water as connecting lines across rivers or petroleum/natural gas platforms, also used in land high drop areas. |
|
YJV33 |
YJLV33 |
XLPE insulated thin steel wire armored PVC sheathed power cable |
|
|
YJV42 |
YJLV42 |
XLPE insulated thick steel wire armored PVC sheathed power cable |
|
|
YJV43 |
YJLV43 |
XLPE insulated thick steel wire armored PE sheathed power cable |
|
|
W |
VLV |
PVC insulated and sheathed power cable |
Laid indoors, and in tunnels, pipelines, cable trenches, and flammable and severe corrosion places, and can not bear external mechanical forces. |
|
VY |
VLY |
PVC insulated PE sheathed power cable |
Laid indoors, and in pipelines, cable trenches and severe corrosion places, and cannot bear external mechanical forces. |
|
VV22 |
VLV22 |
PVC insulated steel tape armored PVC sheathed power cable |
Laid indoors, and in cable trenches, underground severe corrosion places, and cannot bear tension. |
|
VV23 |
VLV23 |
PVC insulated steel tape armored PE sheathed power cable |
Laid indoors, and in cable trenches and underground severe corrosion place, and cannot bear tension. |
|
VV32 |
VLV32 |
PVC insulated thin steel wire armored PVC sheathed power cable |
Laid under ground and in shafts, water and severe corrosion places, and cannot bear high tension. |
|
VV33 |
VLV33 |
PVC insulated thin steel wire armored PVC sheathed power cable |
Laid under ground and in shafts, water and severe corrosion places, and can bear high tension. |
|
VV42 |
VLV42 |
PVC insulated thick steel wire armored PVC sheathed power cable |
Laid under ground and in shafts and severe corrosion places, and can bear high tension. |
|
VV43 |
VLV43 |
PVC insulated thick steel wire armored PE sheathed power cable |
Laid under ground and in shafts and severe corrosion places, and can bear high tension. |
3.6/6 (7.2) KV XLPE/PVC single core (non-armored) YJV, YJLV
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core cableweight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||
|
25 |
Compact round |
6.0 |
2.5 |
0.12 |
1.5 |
17.2 |
510 |
354 |
|
35 |
Compact round |
7.2 |
2.5 |
0.12 |
1.6 |
18.6 |
637 |
418 |
|
50 |
Compact round |
8.4 |
2.5 |
0.12 |
1.6 |
19.8 |
800 |
488 |
|
70 |
Compact round |
10.0 |
2.5 |
0.12 |
1.7 |
21.6 |
1029 |
591 |
|
95 |
Compact round |
11.7 |
2.5 |
0.12 |
1.7 |
23.3 |
1296 |
701 |
|
120 |
Compact round |
13.1 |
2.5 |
0.12 |
1.8 |
24.9 |
1566 |
815 |
|
150 |
Compact round |
14.6 |
2.5 |
0.12 |
1.8 |
26.4 |
1873 |
934 |
|
185 |
Compact round |
16.3 |
2.5 |
0.12 |
1.9 |
28.3 |
2244 |
1085 |
|
240 |
Compact round |
18.5 |
2.6 |
0.12 |
1.9 |
30.7 |
2805 |
1302 |
|
300 |
Compact round |
20.7 |
2.8 |
0.12 |
2.0 |
33.7 |
3456 |
1576 |
|
400 |
Compact round |
23.8 |
3.0 |
0.12 |
2.2 |
37.4 |
4501 |
1994 |
|
500 |
Compact round |
26.6 |
3.2 |
0.12 |
2.3 |
41.4 |
5546 |
2412 |
|
630 |
Compact round |
30.1 |
3.2 |
0.12 |
2.4 |
45.1 |
6853 |
2905 |
|
800 |
Compact round |
35.0 |
3.2 |
0.12 |
2.5 |
50.4 |
8576 |
3562 |
|
1000 |
Milliken conductor |
39.5 |
3.2 |
0.12 |
2.6 |
55.3 |
10592 |
4306 |
3.6/6 (7.2) KV PVC/PVC single core (non-armored) VV, VLV
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core cableweight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||
|
10 |
Compact round |
3.9 |
3.4 |
0.12 |
1.4 |
15.7 |
360 |
297 |
|
16 |
Compact round |
5.0 |
3.4 |
0.12 |
1.4 |
16.8 |
444 |
344 |
|
25 |
Compact round |
6.0 |
3.4 |
0.12 |
1.5 |
18.0 |
560 |
404 |
|
35 |
Compact round |
7.2 |
3.4 |
0.12 |
1.5 |
19.2 |
684 |
465 |
|
50 |
Compact round |
8.4 |
3.4 |
0.12 |
1.6 |
20.6 |
861 |
549 |
|
70 |
Compact round |
10.0 |
3.4 |
0.12 |
1.6 |
22.2 |
1087 |
649 |
|
95 |
Compact round |
11.7 |
3.4 |
0.12 |
1.7 |
24.1 |
1371 |
776 |
|
120 |
Compact round |
13.1 |
3.4 |
0.12 |
1.7 |
25.5 |
1636 |
885 |
|
150 |
Compact round |
14.6 |
3.4 |
0.12 |
1.8 |
27.2 |
1962 |
1023 |
|
185 |
Compact round |
16.3 |
3.4 |
0.12 |
1.8 |
28.9 |
2326 |
1168 |
|
240 |
Compact round |
18.5 |
3.4 |
0.12 |
1.9 |
31.3 |
2900 |
1397 |
|
300 |
Compact round |
20.7 |
3.4 |
0.12 |
2.0 |
33.7 |
3523 |
1643 |
|
400 |
Compact round |
23.8 |
3.4 |
0.12 |
2.1 |
37.0 |
4534 |
2027 |
|
500 |
Compact round |
26.6 |
3.4 |
0.12 |
2.2 |
40.0 |
5538 |
2404 |
|
630 |
Compact round |
30.1 |
3.4 |
0.12 |
2.3 |
43.7 |
6837 |
2889 |
|
800 |
Compact round |
35.0 |
3.4 |
0.12 |
2.4 |
48.8 |
8545 |
3531 |
|
1000 |
Milliken conductor |
39.5 |
3.4 |
0.12 |
2.6 |
53.7 |
10539 |
4271 |
3.6/6 (7.2) KV XLPE/PVC 3 cores (non-armored) YJV, YJLV
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core cableweight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectiona area (mm2) |
Structure |
Outer diameter (mm) |
||||||
|
25 |
Compact round |
6.0 |
2.5 |
0.12 |
2.1 |
34.7 |
1521 |
1049 |
|
35 |
Compact round |
7.2 |
2.5 |
0.12 |
2.2 |
37.5 |
1891 |
1230 |
|
50 |
Compact round |
8.4 |
2.5 |
0.12 |
2.3 |
40.2 |
2402 |
1458 |
|
70 |
Compact round |
10.0 |
2.5 |
0.12 |
2.4 |
43.9 |
3082 |
1760 |
|
95 |
Compact round |
11.7 |
2.5 |
0.12 |
2.5 |
47.8 |
3914 |
2121 |
|
120 |
Compact round |
13.1 |
2.5 |
0.12 |
2.6 |
51.1 |
4722 |
2456 |
|
150 |
Compact round |
14.6 |
2.5 |
0.12 |
2.7 |
54.5 |
5676 |
2844 |
|
185 |
Compact round |
16.3 |
2.5 |
0.12 |
2.8 |
58.4 |
6786 |
3293 |
|
240 |
Compact round |
18.5 |
2.6 |
0.12 |
3.0 |
63.9 |
8535 |
4004 |
|
300 |
Compact round |
20.7 |
2.8 |
0.12 |
3.2 |
70.3 |
10512 |
4849 |
|
400 |
Compact round |
23.8 |
3.0 |
0.12 |
3.5 |
78.4 |
13664 |
6113 |
|
500 |
Compact round |
26.6 |
3.2 |
0.12 |
3.7 |
87.0 |
16918 |
7479 |
3.6/6 (7.2) KV PVC/PVC 3 cores (non-armored)VV, VLV
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core cableweight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||
|
10 |
Compact round |
3.9 |
3.4 |
0.1 |
1.8 |
28.8 |
1003 |
815 |
|
16 |
Compact round |
5.0 |
3.4 |
0.1 |
1.9 |
31.4 |
1311 |
1009 |
|
25 |
Compact round |
6.0 |
3.4 |
0.1 |
2.0 |
33.8 |
1647 |
1175 |
|
35 |
Compact round |
7.2 |
3.4 |
0.1 |
2.1 |
36.6 |
2052 |
1392 |
|
50 |
Compact round |
8.4 |
3.4 |
0.1 |
2.2 |
39.3 |
2481 |
1537 |
|
70 |
Compact round |
10.0 |
3.4 |
0.1 |
2.3 |
43.0 |
3174 |
1850 |
|
95 |
Compact round |
11.7 |
3.4 |
0.1 |
2.4 |
46.8 |
4010 |
2213 |
|
120 |
Compact round |
13.1 |
3.4 |
0.1 |
2.5 |
50.1 |
4827 |
2557 |
|
150 |
Compact round |
14.6 |
3.4 |
0.1 |
2.6 |
53.5 |
5797 |
2960 |
|
185 |
Compact round |
16.3 |
3.4 |
0.1 |
2.7 |
57.4 |
6916 |
3417 |
|
240 |
Compact round |
18.5 |
3.4 |
0.1 |
2.9 |
62.5 |
8651 |
4112 |
|
300 |
Compact round |
20.7 |
3.4 |
0.1 |
3.1 |
67.6 |
10540 |
4859 |
|
400 |
Compact round |
23.8 |
3.4 |
0.1 |
3.3 |
74.7 |
13601 |
6027 |
|
500 |
Compact round |
26.6 |
3.4 |
0.1 |
3.5 |
81.1 |
16645 |
7178 |
3.6/6 (7.2) KV XLPE/PVC 3 cores (steel wire armored) YJV32, YJLV32
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
PVC bedding thickness (mm) |
Armored wire outer diameter (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core cable weight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||||
|
25 |
Compact round |
6.0 |
2.5 |
0.1 |
1.2 |
2.0 |
2.3 |
42.1 |
3317 |
2845 |
|
35 |
Compact round |
7.2 |
2.5 |
0.1 |
1.3 |
2.5 |
2.5 |
46.7 |
4312 |
3651 |
|
50 |
Compact round |
8.4 |
2.5 |
0.1 |
1.3 |
2.5 |
2.5 |
49.3 |
4972 |
4028 |
|
70 |
Compact round |
10.0 |
2.5 |
0.1 |
1.4 |
2.5 |
2.7 |
53.3 |
5968 |
4646 |
|
95 |
Compact round |
11.7 |
2.5 |
0.1 |
1.4 |
2.5 |
2.8 |
57.2 |
7033 |
5239 |
|
120 |
Compact round |
13.1 |
2.5 |
0.1 |
1.5 |
2.5 |
2.9 |
60.6 |
8072 |
5807 |
|
150 |
Compact round |
14.6 |
2.5 |
0.1 |
1.6 |
2.5 |
3.0 |
64.2 |
9288 |
6456 |
|
185 |
Compact round |
16.3 |
2.5 |
0.1 |
1.6 |
2.5 |
3.1 |
68.1 |
10737 |
7245 |
|
240 |
Compact round |
18.5 |
2.6 |
0.1 |
1.7 |
2.5 |
3.3 |
73.9 |
12869 |
8339 |
|
300 |
Compact round |
20.7 |
2.8 |
0.1 |
1.8 |
3.15 |
3.5 |
81.8 |
16183 |
10520 |
|
400 |
Compact round |
23.8 |
3.0 |
0.1 |
2.0 |
3.15 |
3.8 |
90.4 |
20070 |
12519 |
|
500 |
Compact round |
26.6 |
3.2 |
0.1 |
2.1 |
3.15 |
4.1 |
99.3 |
24131 |
14692 |
3.6/6 (7.2) KV PVC/PVC 3 cores (steel wire armored) VV32, VLV32
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
PVC bedding thickness (mm) |
Armored wire outer diameter (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core cable weight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||||
|
10 |
Compact round |
3.9 |
3.4 |
0.1 |
1.2 |
2.0 |
2.1 |
36.4 |
2385 |
2196 |
|
16 |
Compact round |
5.0 |
3.4 |
0.1 |
1.2 |
2.0 |
2.1 |
38.8 |
2802 |
2500 |
|
25 |
Compact round |
6.0 |
3.4 |
0.1 |
1.2 |
2.0 |
2.2 |
41.2 |
3236 |
2764 |
|
35 |
Compact round |
7.2 |
3.4 |
0.1 |
1.2 |
2.0 |
2.3 |
44.0 |
3768 |
3107 |
|
50 |
Compact round |
8.4 |
3.4 |
0.1 |
1.3 |
2.5 |
2.5 |
48.5 |
4890 |
3946 |
|
70 |
Compact round |
10.0 |
3.4 |
0.1 |
1.3 |
2.5 |
2.6 |
52.2 |
5789 |
4465 |
|
95 |
Compact round |
11.7 |
3.4 |
0.1 |
1.4 |
2.5 |
2.7 |
56.2 |
6856 |
5059 |
|
120 |
Compact round |
13.1 |
3.4 |
0.1 |
1.5 |
2.5 |
2.8 |
59.7 |
7901 |
5631 |
|
150 |
Compact round |
14.6 |
3.4 |
0.1 |
1.5 |
2.5 |
2.9 |
63.1 |
9076 |
6239 |
|
185 |
Compact round |
16.3 |
3.4 |
0.1 |
1.6 |
2.5 |
3.1 |
67.4 |
10467 |
6968 |
|
240 |
Compact round |
18.5 |
3.4 |
0.1 |
1.7 |
2.5 |
3.2 |
72.5 |
12514 |
7975 |
|
300 |
Compact round |
20.7 |
3.4 |
0.1 |
1.8 |
3.15 |
3.4 |
79.1 |
15590 |
9910 |
|
400 |
Compact round |
23.8 |
3.4 |
0.1 |
1.9 |
3.15 |
3.7 |
86.6 |
19214 |
11641 |
|
500 |
Compact round |
26.6 |
3.4 |
0.1 |
2.0 |
3.15 |
3.9 |
93.2 |
22781 |
13314 |
3.6/6 (7.2) KV XLPE/PVC 3 cores (steel tape armored) YJV22, YJLV22
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
PVC bedding thickness (mm) |
Armored wire outer diameter (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core cable weight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||||
|
25 |
Compact round |
6.0 |
2.5 |
0.1 |
1.2 |
0.5 |
2.2 |
39.3 |
2474 |
2002 |
|
35 |
Compact round |
7.2 |
2.5 |
0.1 |
1.3 |
0.5 |
2.3 |
42.3 |
2947 |
2286 |
|
50 |
Compact round |
8.4 |
2.5 |
0.1 |
1.3 |
0.5 |
2.4 |
45.1 |
3537 |
2593 |
|
70 |
Compact round |
10.0 |
2.5 |
0.1 |
1.4 |
0.5 |
2.5 |
48.9 |
4351 |
3030 |
|
95 |
Compact round |
11.7 |
2.5 |
0.1 |
1.4 |
0.5 |
2.6 |
52.8 |
5297 |
3504 |
|
120 |
Compact round |
13.1 |
2.5 |
0.1 |
1.5 |
0.5 |
2.8 |
56.4 |
6277 |
4012 |
|
150 |
Compact round |
14.6 |
2.5 |
0.1 |
1.6 |
0.5 |
2.9 |
60.0 |
7373 |
4541 |
|
185 |
Compact round |
16.3 |
2.5 |
0.1 |
1.6 |
0.5 |
3.0 |
63.9 |
8665 |
5172 |
|
240 |
Compact round |
18.5 |
2.6 |
0.1 |
1.7 |
0.5 |
3.2 |
69.7 |
10618 |
6087 |
|
300 |
Compact round |
20.7 |
2.8 |
0.1 |
1.8 |
0.5 |
3.4 |
76.3 |
12836 |
7173 |
|
400 |
Compact round |
23.8 |
3.0 |
0.1 |
2.0 |
0.8 |
3.7 |
86.1 |
17195 |
9644 |
|
500 |
Compact round |
26.6 |
3.2 |
0.1 |
2.1 |
0.8 |
3.9 |
94.8 |
20887 |
11448 |
3.6/6 (7.2) KV PVC/PVC 3 cores (steel tape armored) VV22, VLV22
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
PVC bedding thickness (mm) |
Armored wire outer diameter (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core cable weight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||||
|
10 |
Compact round |
3.9 |
3.4 |
0.1 |
1.2 |
0.2 |
1.9 |
32.2 |
1382 |
1193 |
|
16 |
Compact round |
5.0 |
3.4 |
0.1 |
1.2 |
0.2 |
2.0 |
34.8 |
1722 |
1420 |
|
25 |
Compact round |
6.0 |
3.4 |
0.1 |
1.2 |
0.5 |
2.1 |
38.4 |
2447 |
1975 |
|
35 |
Compact round |
7.2 |
3.4 |
0.1 |
1.2 |
0.5 |
2.2 |
41.2 |
2914 |
2253 |
|
50 |
Compact round |
8.4 |
3.4 |
0.1 |
1.3 |
0.5 |
2.3 |
44.1 |
3426 |
2482 |
|
70 |
Compact round |
10.0 |
3.4 |
0.1 |
1.3 |
0.5 |
2.4 |
47.8 |
4204 |
2879 |
|
95 |
Compact round |
11.7 |
3.4 |
0.1 |
1.4 |
0.5 |
2.6 |
52.0 |
5176 |
3379 |
|
120 |
Compact round |
13.1 |
3.4 |
0.1 |
1.5 |
0.5 |
2.7 |
55.5 |
6099 |
3829 |
|
150 |
Compact round |
14.6 |
3.4 |
0.1 |
1.5 |
0.5 |
2.8 |
58.9 |
7152 |
4315 |
|
185 |
Compact round |
16.3 |
3.4 |
0.1 |
1.6 |
0.5 |
2.9 |
63.0 |
8397 |
4897 |
|
240 |
Compact round |
18.5 |
3.4 |
0.1 |
1.7 |
0.5 |
3.1 |
68.3 |
10290 |
5751 |
|
300 |
Compact round |
20.7 |
3.4 |
0.1 |
1.8 |
0.5 |
3.2 |
73.4 |
12308 |
6628 |
|
400 |
Compact round |
23.8 |
3.4 |
0.1 |
1.9 |
0.5 |
3.5 |
80.9 |
15624 |
8051 |
|
500 |
Compact round |
26.6 |
3.4 |
0.1 |
2.0 |
0.8 |
3.7 |
88.7 |
19733 |
10266 |
6/6 (7.2), 6/10 (12) KV XLPE/PVC single core (non-armored) YJV, YJLV
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core cableweight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||
|
25 |
Compact round |
6.0 |
3.4 |
0.12 |
1.6 |
19.4 |
580 |
423 |
|
35 |
Compact round |
7.2 |
3.4 |
0.12 |
1.6 |
20.6 |
702 |
483 |
|
50 |
Compact round |
8.4 |
3.4 |
0.12 |
1.7 |
22.0 |
878 |
566 |
|
70 |
Compact round |
10.0 |
3.4 |
0.12 |
1.7 |
23.6 |
1103 |
665 |
|
95 |
Compact round |
11.7 |
3.4 |
0.12 |
1.8 |
25.5 |
1386 |
791 |
|
120 |
Compact round |
13.1 |
3.4 |
0.12 |
1.8 |
26.9 |
1649 |
898 |
|
150 |
Compact round |
14.6 |
3.4 |
0.12 |
1.9 |
28.6 |
1974 |
1035 |
|
185 |
Compact round |
16.3 |
3.4 |
0.12 |
1.9 |
30.3 |
2337 |
1178 |
|
240 |
Compact round |
18.5 |
3.4 |
0.12 |
2.0 |
32.7 |
2908 |
1406 |
|
300 |
Compact round |
20.7 |
3.4 |
0.12 |
2.1 |
35.3 |
3544 |
1664 |
|
400 |
Compact round |
23.8 |
3.4 |
0.12 |
2.2 |
38.6 |
4554 |
2047 |
|
500 |
Compact round |
26.6 |
3.4 |
0.12 |
2.3 |
42.2 |
5574 |
2440 |
|
630 |
Compact round |
30.1 |
3.4 |
0.12 |
2.4 |
45.9 |
6884 |
2936 |
|
800 |
Compact round |
35.0 |
3.4 |
0.12 |
2.5 |
51.2 |
8611 |
3597 |
|
1000 |
Milliken conductor |
39.5 |
3.4 |
0.12 |
2.7 |
56.3 |
10655 |
4369 |
6 (7.2), 6/10 (12) KV XLPE/PVC 3 cores (non-armored) YJV, YJLV
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core cableweight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||
|
25 |
Compact round |
6.0 |
3.4 |
0.12 |
2.2 |
38.9 |
1728 |
1256 |
|
35 |
Compact round |
7.2 |
3.4 |
0.12 |
2.3 |
41.6 |
2111 |
1451 |
|
50 |
Compact round |
8.4 |
3.4 |
0.12 |
2.4 |
44.4 |
2636 |
1692 |
|
70 |
Compact round |
10.0 |
3.4 |
0.12 |
2.5 |
48.1 |
3336 |
2015 |
|
95 |
Compact round |
11.7 |
3.4 |
0.12 |
2.7 |
52.0 |
4185 |
2392 |
|
120 |
Compact round |
13.1 |
3.4 |
0.12 |
2.8 |
55.2 |
5009 |
2743 |
|
150 |
Compact round |
14.6 |
3.4 |
0.12 |
2.9 |
58.7 |
5979 |
3148 |
|
185 |
Compact round |
16.3 |
3.4 |
0.12 |
3.0 |
62.5 |
7109 |
3616 |
|
240 |
Compact round |
18.5 |
3.4 |
0.12 |
3.1 |
67.6 |
8845 |
4314 |
|
300 |
Compact round |
20.7 |
3.4 |
0.12 |
3.3 |
73.1 |
10764 |
5101 |
|
400 |
Compact round |
23.8 |
3.4 |
0.12 |
3.5 |
80.2 |
13848 |
6297 |
|
500 |
Compact round |
26.6 |
3.4 |
0.12 |
3.7 |
87.9 |
17019 |
7580 |
6/6 (7.2), 6/10 (12) KV XLPE/PVC 3 cores (steel wire armored) YJV32, YJLV32
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
PVC bedding thickness (mm) |
Armored wire outer diameter (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core cable weight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||||
|
25 |
Compact round |
6.0 |
3.4 |
0.1 |
1.3 |
2.5 |
2.5 |
48.0 |
4175 |
3703 |
|
35 |
Compact round |
7.2 |
3.4 |
0.1 |
1.3 |
2.5 |
2.6 |
50.8 |
4733 |
4072 |
|
50 |
Compact round |
8.4 |
3.4 |
0.1 |
1.4 |
2.5 |
2.7 |
53.8 |
5491 |
4547 |
|
70 |
Compact round |
10.0 |
3.4 |
0.1 |
1.5 |
2.5 |
2.8 |
57.6 |
6446 |
5124 |
|
95 |
Compact round |
11.7 |
3.4 |
0.1 |
1.5 |
2.5 |
2.9 |
61.5 |
7530 |
5737 |
|
120 |
Compact round |
13.1 |
3.4 |
0.1 |
1.6 |
2.5 |
3.0 |
64.9 |
8628 |
6363 |
|
150 |
Compact round |
14.6 |
3.4 |
0.1 |
1.6 |
2.5 |
3.1 |
68.3 |
9794 |
6963 |
|
185 |
Compact round |
16.3 |
3.4 |
0.1 |
1.7 |
2.5 |
3.3 |
72.6 |
11326 |
7834 |
|
240 |
Compact round |
18.5 |
3.4 |
0.1 |
1.8 |
3.15 |
3.5 |
79.2 |
14268 |
9737 |
|
300 |
Compact round |
20.7 |
3.4 |
0.1 |
1.9 |
3.15 |
3.6 |
84.8 |
16641 |
10978 |
|
400 |
Compact round |
23.8 |
3.4 |
0.1 |
2.0 |
3.15 |
3.9 |
92.3 |
20362 |
12811 |
|
500 |
Compact round |
26.6 |
3.4 |
0.1 |
2.1 |
3.15 |
4.1 |
99.3 |
24203 |
14764 |
6/6 (7.2), 6/10 (12) KV XLPE/PVC 3 cores (steel tape armored) YJV22, YJLV22
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
PVC bedding thickness (mm) |
Armored tape outer diameter (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core cable weight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||||
|
25 |
Compact round |
6.0 |
3.4 |
0.1 |
1.3 |
0.5 |
2.4 |
43.8 |
2805 |
2333 |
|
35 |
Compact round |
7.2 |
3.4 |
0.1 |
1.3 |
0.5 |
2.4 |
46.4 |
3251 |
2590 |
|
50 |
Compact round |
8.4 |
3.4 |
0.1 |
1.4 |
0.5 |
2.6 |
49.6 |
3902 |
2958 |
|
70 |
Compact round |
10.0 |
3.4 |
0.1 |
1.5 |
0.5 |
2.7 |
53.4 |
4739 |
3417 |
|
95 |
Compact round |
11.7 |
3.4 |
0.1 |
1.5 |
0.5 |
2.8 |
57.3 |
5706 |
3913 |
|
120 |
Compact round |
13.1 |
3.4 |
0.1 |
1.6 |
0.5 |
2.9 |
60.7 |
6681 |
4415 |
|
150 |
Compact round |
14.6 |
3.4 |
0.1 |
1.6 |
0.5 |
3.0 |
64.1 |
7764 |
4932 |
|
185 |
Compact round |
16.3 |
3.4 |
0.1 |
1.7 |
0.5 |
3.1 |
68.2 |
9108 |
5615 |
|
240 |
Compact round |
18.5 |
3.4 |
0.1 |
1.8 |
0.5 |
3.3 |
73.5 |
11046 |
6515 |
|
300 |
Compact round |
20.7 |
3.4 |
0.1 |
1.9 |
0.5 |
3.5 |
79.3 |
13198 |
7534 |
|
400 |
Compact round |
23.8 |
3.4 |
0.1 |
2.0 |
0.8 |
3.7 |
87.8 |
17420 |
9869 |
|
500 |
Compact round |
26.6 |
3.4 |
0.1 |
2.1 |
0.8 |
3.9 |
94.8 |
20958 |
11520 |
8.7/10 (12), 8.7/15 (17.5) KV XLPE/PVC single core (non-armored) YJV, YJLV
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core cableweight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||
|
25 |
Compact round |
6.0 |
4.5 |
0.12 |
1.7 |
21.8 |
672 |
515 |
|
35 |
Compact round |
7.2 |
4.5 |
0.12 |
1.7 |
23.0 |
798 |
580 |
|
50 |
Compact round |
8.4 |
4.5 |
0.12 |
1.7 |
24.2 |
970 |
657 |
|
70 |
Compact round |
10.0 |
4.5 |
0.12 |
1.8 |
26.0 |
1212 |
773 |
|
95 |
Compact round |
11.7 |
4.5 |
0.12 |
1.9 |
27.9 |
1502 |
907 |
|
120 |
Compact round |
13.1 |
4.5 |
0.12 |
1.9 |
29.3 |
1771 |
1020 |
|
150 |
Compact round |
14.6 |
4.5 |
0.12 |
2.0 |
31.0 |
2103 |
1164 |
|
185 |
Compact round |
16.3 |
4.5 |
0.12 |
2.0 |
32.7 |
2472 |
1314 |
|
240 |
Compact round |
18.5 |
4.5 |
0.12 |
2.1 |
35.1 |
3054 |
1551 |
|
300 |
Compact round |
20.7 |
4.5 |
0.12 |
2.2 |
37.7 |
3700 |
1820 |
|
400 |
Compact round |
23.8 |
4.5 |
0.12 |
2.3 |
41.0 |
4723 |
2216 |
|
500 |
Compact round |
26.6 |
4.5 |
0.12 |
2.4 |
44.6 |
5752 |
2618 |
|
630 |
Compact round |
30.1 |
4.5 |
0.12 |
2.5 |
48.3 |
7082 |
3134 |
|
800 |
Compact round |
35.0 |
4.5 |
0.12 |
2.6 |
53.6 |
8830 |
3816 |
|
1000 |
Milliken conductor |
39.5 |
4.5 |
0.12 |
2.7 |
58.5 |
10868 |
4582 |
8.7/10 (12), 8.7/15 (17.5) KV XLPE/PVC 3 cores (non-armored) YJV, YJLV
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core cableweight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||
|
25 |
Compact round |
6.0 |
4.5 |
0.12 |
2.4 |
43.9 |
2008 |
1536 |
|
35 |
Compact round |
7.2 |
4.5 |
0.12 |
2.5 |
46.7 |
2411 |
1750 |
|
50 |
Compact round |
8.4 |
4.5 |
0.12 |
2.6 |
49.5 |
2953 |
2009 |
|
70 |
Compact round |
10.0 |
4.5 |
0.12 |
2.7 |
53.2 |
3672 |
2351 |
|
95 |
Compact round |
11.7 |
4.5 |
0.12 |
2.8 |
57.1 |
4544 |
2751 |
|
120 |
Compact round |
13.1 |
4.5 |
0.12 |
2.9 |
60.3 |
5387 |
3122 |
|
150 |
Compact round |
14.6 |
4.5 |
0.12 |
3.0 |
63.7 |
6378 |
3546 |
|
185 |
Compact round |
16.3 |
4.5 |
0.12 |
3.1 |
67.6 |
7531 |
4038 |
|
240 |
Compact round |
18.5 |
4.5 |
0.12 |
3.3 |
72.7 |
9297 |
4767 |
|
300 |
Compact round |
20.7 |
4.5 |
0.12 |
3.5 |
78.2 |
11249 |
5586 |
|
400 |
Compact round |
23.8 |
4.5 |
0.12 |
3.7 |
85.3 |
14376 |
6825 |
|
500 |
Compact round |
26.6 |
4.5 |
0.12 |
3.9 |
93.0 |
17592 |
8153 |
8.7/10 (12), 8.7/15 (17.5) KV XLPE/PVC 3 cores (steel wire armored) YJV32, YJLV32
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
PVC bedding thickness (mm) |
Armored wire outer diameter (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core cable weight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||||
|
25 |
Compact round |
6.0 |
4.5 |
0.1 |
1.4 |
2.5 |
2.7 |
53.3 |
4803 |
4331 |
|
35 |
Compact round |
7.2 |
4.5 |
0.1 |
1.4 |
2.5 |
2.8 |
56.1 |
5379 |
4719 |
|
50 |
Compact round |
8.4 |
4.5 |
0.1 |
1.5 |
2.5 |
2.9 |
59.1 |
6091 |
5147 |
|
70 |
Compact round |
10.0 |
4.5 |
0.1 |
1.5 |
2.5 |
3.0 |
62.8 |
7088 |
5766 |
|
95 |
Compact round |
11.7 |
4.5 |
0.1 |
1.6 |
2.5 |
3.1 |
66.8 |
8239 |
6446 |
|
120 |
Compact round |
13.1 |
4.5 |
0.1 |
1.7 |
2.5 |
3.2 |
70.2 |
9346 |
7080 |
|
150 |
Compact round |
14.6 |
4.5 |
0.1 |
1.7 |
3.15 |
3.4 |
75.2 |
11431 |
8599 |
|
185 |
Compact round |
16.3 |
4.5 |
0.1 |
1.8 |
3.15 |
3.5 |
79.2 |
12953 |
9461 |
|
240 |
Compact round |
18.5 |
4.5 |
0.1 |
1.9 |
3.15 |
3.7 |
84.6 |
15139 |
10608 |
|
300 |
Compact round |
20.7 |
4.5 |
0.1 |
2.0 |
3.15 |
3.8 |
90.1 |
17591 |
11928 |
|
400 |
Compact round |
23.8 |
4.5 |
0.1 |
2.1 |
3.15 |
4.1 |
97.6 |
21504 |
13953 |
|
500 |
Compact round |
26.6 |
4.5 |
0.1 |
2.2 |
3.15 |
4.3 |
105.5 |
25364 |
15925 |
8.7/10 (12), 8.7/15 (17.5) KV XLPE/PVC 3 cores (steel tape armored) YJV22, YJLV22
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
PVC bedding thickness (mm) |
Armored tape outer diameter (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core cable weight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||||
|
25 |
Compact round |
6.0 |
4.5 |
0.1 |
1.4 |
0.5 |
2.5 |
48.9 |
3227 |
2755 |
|
35 |
Compact round |
7.2 |
4.5 |
0.1 |
1.4 |
0.5 |
2.6 |
51.7 |
3711 |
3050 |
|
50 |
Compact round |
8.4 |
4.5 |
0.1 |
1.5 |
0.5 |
2.7 |
54.7 |
4372 |
3428 |
|
70 |
Compact round |
10.0 |
4.5 |
0.1 |
1.5 |
0.5 |
2.8 |
58.4 |
5208 |
3886 |
|
95 |
Compact round |
11.7 |
4.5 |
0.1 |
1.6 |
0.5 |
3.0 |
62.6 |
6271 |
4477 |
|
120 |
Compact round |
13.1 |
4.5 |
0.1 |
1.7 |
0.5 |
3.1 |
66.0 |
7254 |
4989 |
|
150 |
Compact round |
14.6 |
4.5 |
0.1 |
1.7 |
0.5 |
3.2 |
69.5 |
8420 |
5588 |
|
185 |
Compact round |
16.3 |
4.5 |
0.1 |
1.8 |
0.5 |
3.3 |
73.5 |
9731 |
6239 |
|
240 |
Compact round |
18.5 |
4.5 |
0.1 |
1.9 |
0.5 |
3.5 |
78.9 |
11715 |
7184 |
|
300 |
Compact round |
20.7 |
4.5 |
0.1 |
2.0 |
0.8 |
3.7 |
85.8 |
14774 |
9111 |
|
400 |
Compact round |
23.8 |
4.5 |
0.1 |
2.1 |
0.8 |
3.9 |
93.1 |
18350 |
10798 |
|
500 |
Compact round |
26.6 |
4.5 |
0.1 |
2.2 |
0.8 |
4.1 |
101.0 |
21990 |
12551 |
12/20 (24) XLPE/PVC single core (non-armored) YJV, YJLV
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core cableweight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||
|
35 |
Compact round |
7.2 |
5.5 |
0.12 |
1.8 |
25.2 |
896 |
677 |
|
50 |
Compact round |
8.4 |
5.5 |
0.12 |
1.8 |
26.4 |
1071 |
759 |
|
70 |
Compact round |
10.0 |
5.5 |
0.12 |
1.9 |
28.2 |
1320 |
882 |
|
95 |
Compact round |
11.7 |
5.5 |
0.12 |
1.9 |
29.9 |
1604 |
1009 |
|
120 |
Compact round |
13.1 |
5.5 |
0.12 |
2.0 |
31.5 |
1892 |
1141 |
|
150 |
Compact round |
14.6 |
5.5 |
0.12 |
2.0 |
33.0 |
2215 |
1275 |
|
185 |
Compact round |
16.3 |
5.5 |
0.12 |
2.1 |
34.9 |
2605 |
1447 |
|
240 |
Compact round |
18.5 |
5.5 |
0.12 |
2.2 |
37.3 |
3196 |
1693 |
|
300 |
Compact round |
20.7 |
5.5 |
0.12 |
2.2 |
39.7 |
3833 |
1953 |
|
400 |
Compact round |
23.8 |
5.5 |
0.12 |
2.3 |
43.0 |
4867 |
2360 |
|
500 |
Compact round |
26.6 |
5.5 |
0.12 |
2.4 |
46.6 |
5902 |
2769 |
|
630 |
Compact round |
30.1 |
5.5 |
0.12 |
2.5 |
50.3 |
7250 |
3302 |
|
800 |
Compact round |
35.0 |
5.5 |
0.12 |
2.7 |
55.8 |
9040 |
4026 |
|
1000 |
Milliken conductor |
39.5 |
5.5 |
0.12 |
2.8 |
60.7 |
11096 |
4810 |
12/20 (24) XLPE/PVC 3 cores (non-armored) YJV, YJLV
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core cableweight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||
|
35 |
Compact round |
7.2 |
5.5 |
0.12 |
2.6 |
51.3 |
2708 |
2047 |
|
50 |
Compact round |
8.4 |
5.5 |
0.12 |
2.7 |
54.1 |
3264 |
2320 |
|
70 |
Compact round |
10.0 |
5.5 |
0.12 |
2.8 |
57.8 |
4004 |
2682 |
|
95 |
Compact round |
11.7 |
5.5 |
0.12 |
3.0 |
61.7 |
4897 |
3103 |
|
120 |
Compact round |
13.1 |
5.5 |
0.12 |
3.1 |
64.9 |
5757 |
3492 |
|
150 |
Compact round |
14.6 |
5.5 |
0.12 |
3.2 |
68.3 |
6767 |
3935 |
|
185 |
Compact round |
16.3 |
5.5 |
0.12 |
3.3 |
72.2 |
7941 |
4448 |
|
240 |
Compact round |
18.5 |
5.5 |
0.12 |
3.5 |
77.3 |
9735 |
5204 |
|
300 |
Compact round |
20.7 |
5.5 |
0.12 |
3.6 |
82.8 |
11716 |
6053 |
|
400 |
Compact round |
23.8 |
5.5 |
0.12 |
3.8 |
89.9 |
14882 |
7331 |
|
500 |
Compact round |
26.6 |
5.5 |
0.12 |
4.0 |
97.6 |
18140 |
8701 |
12/20 (24) XLPE/PVC 3 cores (steel wire armored) YJV32, YJLV32
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
PVC bedding thickness (mm) |
Armored tape outer diameter (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core cable weight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||||
|
35 |
Compact round |
7.2 |
5.5 |
0.1 |
1.5 |
2.5 |
2.9 |
60.8 |
5934 |
5273 |
|
50 |
Compact round |
8.4 |
5.5 |
0.1 |
1.6 |
2.5 |
3.0 |
63.8 |
6706 |
5763 |
|
70 |
Compact round |
10.0 |
5.5 |
0.1 |
1.6 |
2.5 |
3.1 |
67.5 |
7699 |
6378 |
|
95 |
Compact round |
11.7 |
5.5 |
0.1 |
1.7 |
2.5 |
3.3 |
71.7 |
8932 |
7139 |
|
120 |
Compact round |
13.1 |
5.5 |
0.1 |
1.8 |
3.15 |
3.4 |
76.4 |
10907 |
8641 |
|
150 |
Compact round |
14.6 |
5.5 |
0.1 |
1.8 |
3.15 |
3.5 |
79.9 |
12187 |
9355 |
|
185 |
Compact round |
16.3 |
5.5 |
0.1 |
1.9 |
3.15 |
3.6 |
83.9 |
13742 |
10250 |
|
240 |
Compact round |
18.5 |
5.5 |
0.1 |
2.0 |
3.15 |
3.8 |
89.3 |
16001 |
11471 |
|
300 |
Compact round |
20.7 |
5.5 |
0.1 |
2.1 |
3.15 |
4.0 |
95.0 |
18538 |
12875 |
|
400 |
Compact round |
23.8 |
5.5 |
0.1 |
2.2 |
3.15 |
4.2 |
102.3 |
22314 |
14762 |
|
500 |
Compact round |
26.6 |
5.5 |
0.1 |
2.3 |
3.15 |
4.4 |
110.2 |
26392 |
16953 |
12/20 (24) XLPE/PVC 3 cores (steel tape armored) YJV22, YJLV22
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
PVC bedding thickness (mm) |
Armored tape outer diameter (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core cable weight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||||
|
35 |
Compact round |
7.2 |
5.5 |
0.1 |
1.5 |
0.5 |
2.8 |
56.6 |
4182 |
3521 |
|
50 |
Compact round |
8.4 |
5.5 |
0.1 |
1.6 |
0.5 |
2.9 |
59.6 |
4866 |
3922 |
|
70 |
Compact round |
10.0 |
5.5 |
0.1 |
1.6 |
0.5 |
3.0 |
63.3 |
5738 |
4417 |
|
95 |
Compact round |
11.7 |
5.5 |
0.1 |
1.7 |
0.5 |
3.1 |
67.3 |
6783 |
4990 |
|
120 |
Compact round |
13.1 |
5.5 |
0.1 |
1.8 |
0.5 |
3.2 |
70.7 |
7847 |
5582 |
|
150 |
Compact round |
14.6 |
5.5 |
0.1 |
1.8 |
0.5 |
3.3 |
74.2 |
8972 |
6141 |
|
185 |
Compact round |
16.3 |
5.5 |
0.1 |
1.9 |
0.5 |
3.5 |
78.4 |
10352 |
6859 |
|
240 |
Compact round |
18.5 |
5.5 |
0.1 |
2.0 |
0.8 |
3.7 |
85.0 |
13229 |
8698 |
|
300 |
Compact round |
20.7 |
5.5 |
0.1 |
2.1 |
0.8 |
3.8 |
90.5 |
15523 |
9860 |
|
400 |
Compact round |
23.8 |
5.5 |
0.1 |
2.2 |
0.8 |
4.1 |
98.0 |
19110 |
11559 |
|
500 |
Compact round |
26.6 |
5.5 |
0.1 |
2.3 |
0.8 |
4.3 |
105.9 |
22909 |
13470 |
18/30 (36) XLPE/PVC single core (non-armored) YJV, YJLV
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core cableweight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||
|
50 |
Compact round |
8.4 |
8.0 |
0.12 |
2.0 |
31.8 |
1354 |
1042 |
|
70 |
Compact round |
10.0 |
8.0 |
0.12 |
2.0 |
33.4 |
1604 |
1166 |
|
95 |
Compact round |
11.7 |
8.0 |
0.12 |
2.1 |
35.3 |
1918 |
1323 |
|
120 |
Compact round |
13.1 |
8.0 |
0.12 |
2.1 |
36.7 |
2204 |
1453 |
|
150 |
Compact round |
14.6 |
8.0 |
0.12 |
2.2 |
38.4 |
2557 |
1617 |
|
185 |
Compact round |
16.3 |
8.0 |
0.12 |
2.2 |
40.1 |
2946 |
1788 |
|
240 |
Compact round |
18.5 |
8.0 |
0.12 |
2.3 |
42.5 |
3557 |
2055 |
|
300 |
Compact round |
20.7 |
8.0 |
0.12 |
2.4 |
45.1 |
4236 |
2355 |
|
400 |
Compact round |
23.8 |
8.0 |
0.12 |
2.5 |
48.4 |
5299 |
2792 |
|
500 |
Compact round |
26.6 |
8.0 |
0.12 |
2.6 |
52.0 |
6354 |
3220 |
|
630 |
Compact round |
30.1 |
8.0 |
0.12 |
2.7 |
55.7 |
7748 |
3799 |
|
800 |
Compact round |
35.0 |
8.0 |
0.12 |
2.8 |
61.0 |
9560 |
4546 |
|
1000 |
Milliken conductor |
39.5 |
8.0 |
0.12 |
3.0 |
66.1 |
11687 |
5401 |
18/30 (36) XLPE/PVC 3 cores (non-armored) YJV, YJLV
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core cableweight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||
|
50 |
Compact round |
8.4 |
8.0 |
0.12 |
3.1 |
65.6 |
4154 |
3210 |
|
70 |
Compact round |
10.0 |
8.0 |
0.12 |
3.2 |
69.3 |
4942 |
3621 |
|
95 |
Compact round |
11.7 |
8.0 |
0.12 |
3.3 |
73.2 |
5889 |
4095 |
|
120 |
Compact round |
13.1 |
8.0 |
0.12 |
3.5 |
76.4 |
6793 |
4527 |
|
150 |
Compact round |
14.6 |
8.0 |
0.12 |
3.6 |
79.9 |
7849 |
5018 |
|
185 |
Compact round |
16.3 |
8.0 |
0.12 |
3.7 |
83.8 |
9075 |
5583 |
|
240 |
Compact round |
18.5 |
8.0 |
0.12 |
3.8 |
88.8 |
10939 |
6408 |
|
300 |
Compact round |
20.7 |
8.0 |
0.12 |
4.0 |
94.3 |
12994 |
7330 |
|
400 |
Compact round |
23.8 |
8.0 |
0.12 |
4.2 |
101.4 |
16257 |
8706 |
|
500 |
Compact round |
26.6 |
8.0 |
0.12 |
4.4 |
109.2 |
19619 |
10180 |
18/30 (36) XLPE/PVC 3 cores (steel wire armored) YJV32, YJLV32
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
PVC bedding thickness (mm) |
Armored tape outer diameter (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core cable weight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||||
|
50 |
Compact round |
8.4 |
8.0 |
0.1 |
1.8 |
3.15 |
3.5 |
77.3 |
9333 |
8390 |
|
70 |
Compact round |
10.0 |
8.0 |
0.1 |
1.8 |
3.15 |
3.6 |
80.9 |
10396 |
9075 |
|
95 |
Compact round |
11.7 |
8.0 |
0.1 |
1.9 |
3.15 |
3.7 |
85.0 |
11723 |
9930 |
|
120 |
Compact round |
13.1 |
8.0 |
0.1 |
2.0 |
3.15 |
3.8 |
88.4 |
12986 |
10720 |
|
150 |
Compact round |
14.6 |
8.0 |
0.1 |
2.0 |
3.15 |
3.9 |
91.8 |
14220 |
11388 |
|
185 |
Compact round |
16.3 |
8.0 |
0.1 |
2.1 |
3.15 |
4.0 |
95.9 |
15887 |
12395 |
|
240 |
Compact round |
18.5 |
8.0 |
0.1 |
2.2 |
3.15 |
4.2 |
101.2 |
18144 |
13613 |
|
300 |
Compact round |
20.7 |
8.0 |
0.1 |
2.3 |
3.15 |
4.4 |
107.0 |
20761 |
15097 |
|
400 |
Compact round |
23.8 |
8.0 |
0.1 |
2.4 |
3.15 |
4.6 |
114.3 |
24824 |
17273 |
|
500 |
Compact round |
26.6 |
8.0 |
0.1 |
2.5 |
3.15 |
4.8 |
122.2 |
29019 |
19580 |
18/30 (36) XLPE/PVC 3 cores (steel tape armored) YJV22, YJLV22
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
PVC bedding thickness (mm) |
Armored tape outer diameter (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core cable weight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||||
|
50 |
Compact round |
8.4 |
8.0 |
0.1 |
1.8 |
0.5 |
3.3 |
71.6 |
6279 |
5335 |
|
70 |
Compact round |
10.0 |
8.0 |
0.1 |
1.8 |
0.5 |
3.4 |
75.2 |
7189 |
5868 |
|
95 |
Compact round |
11.7 |
8.0 |
0.1 |
1.9 |
0.5 |
3.5 |
79.3 |
8305 |
6511 |
|
120 |
Compact round |
13.1 |
8.0 |
0.1 |
2.0 |
0.8 |
3.7 |
84.1 |
10257 |
7992 |
|
150 |
Compact round |
14.6 |
8.0 |
0.1 |
2.0 |
0.8 |
3.8 |
87.5 |
11435 |
8603 |
|
185 |
Compact round |
16.3 |
8.0 |
0.1 |
2.1 |
0.8 |
3.9 |
91.6 |
12933 |
9441 |
|
240 |
Compact round |
18.5 |
8.0 |
0.1 |
2.2 |
0.8 |
4.1 |
96.9 |
15043 |
10512 |
|
300 |
Compact round |
20.7 |
8.0 |
0.1 |
2.3 |
0.8 |
4.2 |
102.5 |
17412 |
11749 |
|
400 |
Compact round |
23.8 |
8.0 |
0.1 |
2.4 |
0.8 |
4.5 |
110.0 |
21229 |
13678 |
|
500 |
Compact round |
26.6 |
8.0 |
0.1 |
2.5 |
0.8 |
4.7 |
117.9 |
25145 |
15706 |
21/35 (40.5) XLPE/PVC single core (non-armored) YJV, YJLV
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core cableweight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||
|
50 |
Compact round |
8.4 |
9.3 |
0.12 |
2.1 |
34.8 |
1533 |
1221 |
|
70 |
Compact round |
10.0 |
9.3 |
0.12 |
2.1 |
36.4 |
1791 |
1353 |
|
95 |
Compact round |
11.7 |
9.3 |
0.12 |
2.2 |
38.3 |
2115 |
1520 |
|
120 |
Compact round |
13.1 |
9.3 |
0.12 |
2.2 |
39.7 |
2408 |
1656 |
|
150 |
Compact round |
14.6 |
9.3 |
0.12 |
2.3 |
41.4 |
2769 |
1830 |
|
185 |
Compact round |
16.3 |
9.3 |
0.12 |
2.3 |
43.1 |
3167 |
2009 |
|
240 |
Compact round |
18.5 |
9.3 |
0.12 |
2.4 |
45.5 |
3790 |
2287 |
|
300 |
Compact round |
20.7 |
9.3 |
0.12 |
2.5 |
48.1 |
4481 |
2601 |
|
400 |
Compact round |
23.8 |
9.3 |
0.12 |
2.6 |
51.4 |
5561 |
3054 |
|
500 |
Compact round |
26.6 |
9.3 |
0.12 |
2.7 |
57.1 |
6894 |
3760 |
|
630 |
Compact round |
30.1 |
9.3 |
0.12 |
2.8 |
60.8 |
8263 |
4314 |
|
800 |
Compact round |
35.0 |
9.3 |
0.12 |
3.0 |
66.3 |
10257 |
5243 |
|
1000 |
Milliken conductor |
39.5 |
9.3 |
0.12 |
3.1 |
71.2 |
12369 |
6083 |
21/35 (40.5) XLPE/PVC 3 cores (non-armored) YJV, YJLV
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core cableweight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||
|
50 |
Compact round |
8.4 |
9.3 |
0.12 |
3.3 |
72.1 |
4719 |
3776 |
|
70 |
Compact round |
10.0 |
9.3 |
0.12 |
3.4 |
75.7 |
5536 |
4214 |
|
95 |
Compact round |
11.7 |
9.3 |
0.12 |
3.5 |
79.6 |
6512 |
4718 |
|
120 |
Compact round |
13.1 |
9.3 |
0.12 |
3.7 |
82.8 |
7441 |
5175 |
|
150 |
Compact round |
14.6 |
9.3 |
0.12 |
3.8 |
86.3 |
8523 |
5692 |
|
185 |
Compact round |
16.3 |
9.3 |
0.12 |
3.9 |
90.2 |
9779 |
6286 |
|
240 |
Compact round |
18.5 |
9.3 |
0.12 |
4.0 |
95.2 |
11681 |
7150 |
|
300 |
Compact round |
20.7 |
9.3 |
0.12 |
4.2 |
100.7 |
13777 |
8114 |
|
400 |
Compact round |
23.8 |
9.3 |
0.12 |
4.4 |
107.9 |
17095 |
9544 |
21/35 (40.5) XLPE/PVC 3 cores (steel wire armored) YJV32, YJLV32
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
PVC bedding thickness (mm) |
Armored tape outer diameter (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core cable weight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||||
|
50 |
Compact round |
8.4 |
9.3 |
0.1 |
1.9 |
3.15 |
3.7 |
83.9 |
10380 |
9436 |
|
70 |
Compact round |
10.0 |
9.3 |
0.1 |
2.0 |
3.15 |
3.8 |
87.8 |
11519 |
10197 |
|
95 |
Compact round |
11.7 |
9.3 |
0.1 |
2.0 |
3.15 |
3.9 |
91.6 |
12821 |
11028 |
|
120 |
Compact round |
13.1 |
9.3 |
0.1 |
2.1 |
3.15 |
4.0 |
95.0 |
14037 |
11772 |
|
150 |
Compact round |
14.6 |
9.3 |
0.1 |
2.2 |
3.15 |
4.1 |
98.7 |
15552 |
12720 |
|
185 |
Compact round |
16.3 |
9.3 |
0.1 |
2.2 |
3.15 |
4.2 |
102.5 |
17139 |
13646 |
|
240 |
Compact round |
18.5 |
9.3 |
0.1 |
2.3 |
3.15 |
4.4 |
107.9 |
19442 |
14912 |
|
300 |
Compact round |
20.7 |
9.3 |
0.1 |
2.4 |
3.15 |
4.6 |
113.6 |
22224 |
16561 |
|
400 |
Compact round |
23.8 |
9.3 |
0.1 |
2.5 |
3.15 |
4.8 |
120.9 |
26222 |
18671 |
21/35 (40.5) XLPE/PVC 3 cores (steel tape armored) YJV22, YJLV22
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
PVC bedding thickness (mm) |
Armored tape outer diameter (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core cable weight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||||
|
50 |
Compact round |
8.4 |
9.3 |
0.1 |
1.9 |
0.5 |
3.5 |
78.2 |
7076 |
6132 |
|
70 |
Compact round |
10.0 |
9.3 |
0.1 |
2.0 |
0.8 |
3.6 |
83.3 |
8864 |
7543 |
|
95 |
Compact round |
11.7 |
9.3 |
0.1 |
2.0 |
0.8 |
3.8 |
87.3 |
10094 |
8301 |
|
120 |
Compact round |
13.1 |
9.3 |
0.1 |
2.1 |
0.8 |
3.9 |
90.7 |
11190 |
8925 |
|
150 |
Compact round |
14.6 |
9.3 |
0.1 |
2.2 |
0.8 |
4.0 |
94.4 |
12527 |
9695 |
|
185 |
Compact round |
16.3 |
9.3 |
0.1 |
2.2 |
0.8 |
4.1 |
98.2 |
14003 |
10511 |
|
240 |
Compact round |
18.5 |
9.3 |
0.1 |
2.3 |
0.8 |
4.3 |
103.6 |
16160 |
11629 |
|
300 |
Compact round |
20.7 |
9.3 |
0.1 |
2.4 |
0.8 |
4.4 |
109.1 |
18691 |
13028 |
|
400 |
Compact round |
23.8 |
9.3 |
0.1 |
2.5 |
0.8 |
4.7 |
116.6 |
22446 |
14895 |
26/35 (40.5) XLPE/PVC single core (non-armored) YJV, YJLV
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core cableweight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||
|
50 |
Compact round |
8.4 |
10.5 |
0.12 |
2.2 |
37.6 |
1715 |
1402 |
|
70 |
Compact round |
10.0 |
10.5 |
0.12 |
2.2 |
39.2 |
1980 |
1541 |
|
95 |
Compact round |
11.7 |
10.5 |
0.12 |
2.3 |
41.1 |
2313 |
1718 |
|
120 |
Compact round |
13.1 |
10.5 |
0.12 |
2.3 |
42.5 |
2612 |
1860 |
|
150 |
Compact round |
14.6 |
10.5 |
0.12 |
2.4 |
44.2 |
2981 |
2042 |
|
185 |
Compact round |
16.3 |
10.5 |
0.12 |
2.4 |
45.9 |
3387 |
2229 |
|
240 |
Compact round |
18.5 |
10.5 |
0.12 |
2.5 |
48.3 |
4021 |
2519 |
|
300 |
Compact round |
20.7 |
10.5 |
0.12 |
2.6 |
50.9 |
4725 |
2845 |
|
400 |
Compact round |
23.8 |
10.5 |
0.12 |
2.7 |
54.2 |
5820 |
3313 |
|
500 |
Compact round |
26.6 |
10.5 |
0.12 |
2.8 |
59.7 |
7142 |
4009 |
|
630 |
Compact round |
30.1 |
10.5 |
0.12 |
2.9 |
63.4 |
8528 |
4579 |
|
800 |
Compact round |
35.0 |
10.5 |
0.12 |
3.1 |
68.7 |
10521 |
5507 |
|
1000 |
Milliken conductor |
39.5 |
10.5 |
0.12 |
3.2 |
73.6 |
12652 |
6366 |
26/35 (40.5) XLPE/PVC 3 cores (non-armored) YJV, YJLV
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core cableweight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||
|
50 |
Compact round |
8.4 |
10.5 |
0.1 |
3.5 |
78.0 |
5289 |
4345 |
|
70 |
Compact round |
10.0 |
10.5 |
0.1 |
3.6 |
81.7 |
6131 |
4809 |
|
95 |
Compact round |
11.7 |
10.5 |
0.1 |
3.7 |
85.6 |
7134 |
5341 |
|
120 |
Compact round |
13.1 |
10.5 |
0.1 |
3.8 |
88.8 |
8086 |
5821 |
|
150 |
Compact round |
14.6 |
10.5 |
0.1 |
3.9 |
92.3 |
9193 |
6361 |
|
185 |
Compact round |
16.3 |
10.5 |
0.1 |
4.1 |
96.1 |
10476 |
6983 |
|
240 |
Compact round |
18.5 |
10.5 |
0.1 |
4.2 |
101.2 |
12414 |
7883 |
|
300 |
Compact round |
20.7 |
10.5 |
0.1 |
4.4 |
106.7 |
14548 |
8885 |
|
400 |
Compact round |
23.8 |
10.5 |
0.1 |
4.6 |
113.8 |
17917 |
10365 |
26/35 (40.5) XLPE/PVC 3 cores (steel wire armored) YJV32, YJLV32
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
PVC bedding thickness (mm) |
Armored tape outer diameter (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core cable weight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||||
|
50 |
Compact round |
8.4 |
10.5 |
0.1 |
2.0 |
3.15 |
3.9 |
90.1 |
11529 |
10585 |
|
70 |
Compact round |
10.0 |
10.5 |
0.1 |
2.1 |
3.15 |
4.0 |
94.0 |
12665 |
11343 |
|
95 |
Compact round |
11.7 |
10.5 |
0.1 |
2.1 |
3.15 |
4.1 |
97.8 |
13996 |
12203 |
|
120 |
Compact round |
13.1 |
10.5 |
0.1 |
2.2 |
3.15 |
4.2 |
101.2 |
15279 |
13013 |
|
150 |
Compact round |
14.6 |
10.5 |
0.1 |
2.3 |
3.15 |
4.3 |
104.9 |
16711 |
13879 |
|
185 |
Compact round |
16.3 |
10.5 |
0.1 |
2.3 |
3.15 |
4.4 |
108.7 |
18411 |
14919 |
|
240 |
Compact round |
18.5 |
10.5 |
0.1 |
2.4 |
3.15 |
4.6 |
114.1 |
20854 |
16323 |
|
300 |
Compact round |
20.7 |
10.5 |
0.1 |
2.5 |
3.15 |
4.8 |
119.8 |
23557 |
17893 |
|
400 |
Compact round |
23.8 |
10.5 |
0.1 |
2.6 |
3.15 |
5.0 |
127.1 |
27594 |
20042 |
26/35 (40.5) XLPE/PVC 3 cores (steel tape armored) YJV22, YJLV22
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
PVC bedding thickness (mm) |
Armored tape outer diameter (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core cable weight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||||
|
50 |
Compact round |
8.4 |
10.5 |
0.1 |
1.9 |
0.8 |
3.7 |
85.6 |
8793 |
7849 |
|
70 |
Compact round |
10.0 |
10.5 |
0.1 |
2.0 |
0.8 |
3.8 |
89.5 |
9817 |
8495 |
|
95 |
Compact round |
11.7 |
10.5 |
0.1 |
2.0 |
0.8 |
3.9 |
93.3 |
11036 |
9243 |
|
120 |
Compact round |
13.1 |
10.5 |
0.1 |
2.1 |
0.8 |
4.1 |
96.9 |
12241 |
9976 |
|
150 |
Compact round |
14.6 |
10.5 |
0.1 |
2.2 |
0.8 |
4.2 |
100.6 |
13558 |
10726 |
|
185 |
Compact round |
16.3 |
10.5 |
0.1 |
2.2 |
0.8 |
4.3 |
104.4 |
15085 |
11592 |
|
240 |
Compact round |
18.5 |
10.5 |
0.1 |
2.3 |
0.8 |
4.5 |
109.8 |
17381 |
12850 |
|
300 |
Compact round |
20.7 |
10.5 |
0.1 |
2.4 |
0.8 |
4.6 |
115.3 |
19830 |
14167 |
|
400 |
Compact round |
23.8 |
10.5 |
0.1 |
2.5 |
0.8 |
4.9 |
122.8 |
23689 |
16138 |
|
500 |
Compact round |
26.6 |
10.5 |
0.1 |
2.9 |
0.8 |
5.2 |
131.6 |
26584 |
17145 |
