OPPC OPTICAL PHASE CONDUCTOR
Description:

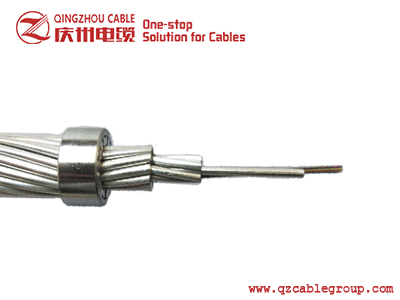

The Aluminum tube is surrounded by single or double layers of aluminum clad steel wires(ACS) or mix ACS wires and aluminum alloy wires Aluminum wires / Aluminum alloy wires Optical fibers. Aluminum. OPPC cables have the dual functions performance functions of phase conductors with communication capabilities.
Typical Design:
|
Specification |
Fiber Count |
Diameter(mm) |
Weight (kg/km) |
RTS(KN) |
Ampacity (40℃-70℃) |
Ampacity (40℃-90℃) |
Ampacity (40℃-90℃) |
|
OPPC-240/30 |
16 |
21.7 |
890 |
76.6 |
445A |
639A |
639A |
|
OPPC-70/10 |
16 |
17.4 |
598 |
52.8 |
351A |
495A |
495A |
|
OPPC-120/25 |
24 |
15.9 |
523 |
49 |
308 |
432A |
432A |
|
OPPC-150/35 |
24 |
17.6 |
641 |
64.5 |
348 |
492A |
492A |
Note:
1. Only a part of OPPC cables are listed in the table. Cables with other specifications can be inquired.
2. Cables can be supplied with a range of single mode or multimode fibers.
3. Specially designed Cable structure is available on request.
