XLPE INSULATED ELECTRICAL ARMOURED and NON-ARMOURED POWER CABLE
Application:
XLPE Insulated armoured power cable is used to transmit and distribute power in power transmission and distribution system of 600~1000v 3.6kv~35kV . It is generally applied to the fields including power, construction, mines, metallurgy, petrochemical industry and communication in complete replace of oil immersed paper insulated power cable.
The range of hard-wearing steel wire armour (SWA) and aluminium wire armour (AWA) XLPE insulated cables is manufactured in accordance with IEC 60502-1 and is designed for use in applications where there is a risk of mechanical stress and where protection is required against mechanical damage. It is commonly used for the supply of mains electricity and for auxiliary control cables in diverse environments including aerial power networks, outdoors, indoors, underground systems and in cable ducting. The SWA armour means these are direct burial cables – suitable for installation directly into free draining soil as they are protected from damage should be they accidentally hit. These cables are suitable for use clipped directly onto a surface, on a tray, in a basket or in free air.
Product Range

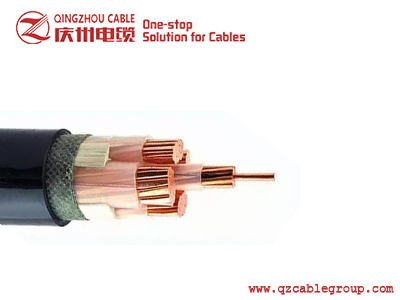

Low Voltage XLPE Insulated Power Cable
|
0.6/1kV XLPE Insulated Un-armoured/Armoured Cable |
Core |
Armor |
|
Cu or Al/XLPE/PVC Power Cable |
Single Core |
No |
|
Cu or Al/XLPE/AWA/PVC Power Cable |
Single Core |
AWA |
|
Cu or Al/XLPE/PVC Power Cable |
Two Cores |
No |
|
Cu or Al/XLPE/STA/PVC Power Cable |
Two Cores |
STA |
|
Cu or Al/XLPE/SWA/PVC Power Cable |
Two Cores |
SWA |
|
Cu or Al/XLPE/PVC Power Cable |
Three Cores |
No |
|
Cu or Al/XLPE/PVC Power Cable |
Three Cores |
STA |
|
Cu or Al/XLPE/SWA/PVC Power Cable |
Three Cores |
SWA |
|
Cu or Al/XLPE/PVC Power Cable |
3+1 Cores |
No |
|
Cu or Al/XLPE/STA/PVC Power Cable |
3+1 Cores |
STA |
|
Cu or Al/XLPE/SWA/PVC Power Cable |
3+1 Cores |
SWA |
|
Cu or Al/XLPE/PVC Power Cable |
Four Cores |
No |
|
Cu or Al/XLPE/STA/PVC Power Cable |
Four Cores |
STA |
|
Cu or Al/XLPE/SWA/PVC Power Cable |
Four Cores |
SWA |
|
Cu or Al/XLPE/PVC Power Cable |
4+1 Cores |
No |
|
Cu or Al/XLPE/STA/PVC Power Cable |
4+1 Cores |
STA |
|
Cu or Al/XLPE/SWA/PVC Power Cable |
4+1 Cores |
SWA |
|
Cu or Al/XLPE/PVC Power Cable |
Five Cores |
No |
|
Cu or Al/XLPE/STA/PVC Power Cable |
Five Cores |
STA |
|
Cu or Al/XLPE/SWA/PVC Power Cable |
Five Cores |
SWA |
|
Cu or Al/XLPE/PVC Power Cable |
3+2 Cores |
No |
|
Cu or Al/XLPE/STA/PVC Power Cable |
3+2 Cores |
STA |
|
Cu or Al/XLPE/SWA/PVC Power Cable |
3+2 Cores |
SWA |

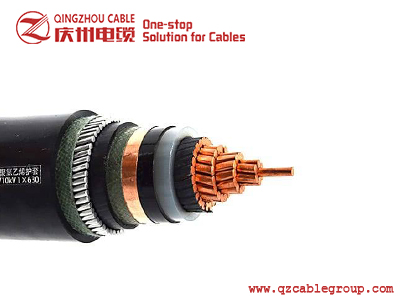

Medium Voltage XLPE Insulated Power Cable
|
3.6/6(7.2)kV, 3.8/6.6(7.2)kV, |
Conductor |
Insulation |
Armor |
Outer Sheath |
|||||
|
Aluminum |
Copper |
XLPE |
SW |
ST |
DST |
AW |
PVC |
PE |
|
|
Cu/XLPE/PVC |
|
P |
P |
— |
— |
— |
— |
P |
|
|
Cu/ XLPE /PE |
|
P |
P |
— |
— |
— |
— |
|
P |
|
Al/ XLPE /PVC |
P |
|
P |
— |
— |
— |
— |
P |
|
|
Al/ XLPE /PE |
P |
|
P |
— |
— |
— |
— |
|
P |
|
Cu/ XLPE /STA/PVC |
|
P |
P |
— |
P |
— |
— |
P |
|
|
Cu/ XLPE /STA/PE |
|
P |
P |
— |
P |
— |
— |
|
P |
|
Al/ XLPE /STA/PVC |
P |
|
P |
— |
P |
— |
— |
P |
|
|
Al/ XLPE /STA/PE |
P |
|
P |
— |
P |
— |
— |
|
P |
|
Cu/ XLPE /DSTA/PVC |
|
P |
P |
— |
— |
P |
— |
P |
|
|
Cu/ XLPE /DSTA/PE |
|
P |
P |
— |
— |
P |
— |
|
P |
|
Al/ XLPE /DSTA/PVC |
P |
|
P |
— |
— |
P |
— |
P |
|
|
Al/ XLPE /DSTA/PE |
P |
|
P |
— |
— |
P |
— |
|
P |
|
Cu/ XLPE /SWA/PVC |
|
P |
P |
P |
— |
— |
— |
P |
|
|
Cu/ XLPE /SWA/PE |
|
P |
P |
P |
— |
— |
— |
|
P |
|
Al/PVC/SWA/PVC |
P |
|
P |
P |
— |
— |
— |
P |
|
|
Al/PVC/SWA/PE |
P |
|
P |
P |
— |
— |
— |
|
P |
|
Cu/PVC/AWA/PVC |
|
P |
P |
— |
— |
— |
P |
P |
|
|
Cu/PVC/AWA/PE |
|
P |
P |
— |
— |
— |
P |
|
P |
|
Al/PVC/AWA/PVC |
P |
|
P |
— |
— |
— |
P |
P |
|
|
Al/PVC/AWA/PE |
P |
|
P |
— |
— |
— |
P |
|
P |
|
Armor material : SW=steel wire, ST=steel tape, DST=double steel tape, AW=aluminum wire |
|||||||||
XLPE INSULATED UNARMOURED PVC SHEATHED CABLE 0.6 / 1 ( 1.2 ) kV
DESCRIPTION
Single core and multicore cables with copper or aluminium conductor, XLPE insulated and PVC sheathed. Cables are rated at 0.6 / 1 (1.2) kV and conformed to IEC 60502, MS 2104 & MS 2106.
CONSTRUCTION
Conductor
Plain circular, compacted or shaped stranded copper or aluminium conductor, conform to IEC 60228 class 2.
Insulation
XLPE ( cross-linked polyethylene ) rated at 90ºC.
Colours for core identification
Single core – natural (black on request) Two cores -red, black
Three cores – red, yellow and blue OR
Four cores – red, yellow, blue and black
Five cores – red, yellow, blue, black and green/yellow
Optional colours
Single core – natural (brown or blue on request)
Two cores – brown, blue
Three cores – brown, black, grey
Four cores – brown, black, grey, blue
Five cores – brown, black, grey, blue and green/yellow
Assembly
Two, three, four or five insulated conductors are laid up together if necessary filled with non- hygroscopic material compatible with the insulation. The filling may be omitted provided the outer shape of the cables remains practically circular and no adhesion occurs between cores and sheath.
Sheath
PVC type ST2 to IEC 60502, colour black.
APPLICATION
These cables are designated for general use including underground burial, where they are not likely to suffer mechanical damage.
Note: Cables complying with BS5467 and customer’s specification are available upon request.
0.6 /1 (1.2) kV XLPE INSULATED UNARMOURED PVC SHEATHED CABLE – SINGLE CORE
CU/XLPE/PVC CABLE
AL/XLPE/PVC CABLE
|
Nominal cross- sectional area |
Conductor Shape |
Nominal thickness of insulation |
Nominal thickness of sheath |
Approximate overall diameter |
Approximate weight of cable |
|
|
Copper |
Aluminium |
|||||
|
mm2 |
mm |
mm |
mm |
Kg / Km |
Kg / Km |
|
|
1.5 |
r.m. |
0.7 |
1.4 |
5.8 |
45 |
– |
|
2.5 |
r.m. |
0.7 |
1.4 |
6.2 |
60 |
– |
|
4 |
r.m. |
0.7 |
1.4 |
6.8 |
80 |
– |
|
6 |
r.m. |
0.7 |
1.4 |
7.3 |
100 |
65 |
|
10 |
r.m. |
0.7 |
1.4 |
8.3 |
140 |
85 |
|
16 |
c.c. |
0.7 |
1.4 |
9.0 |
200 |
100 |
|
25 |
c.c. |
0.9 |
1.4 |
10.6 |
310 |
150 |
|
35 |
c.c. |
0.9 |
1.4 |
11.8 |
400 |
190 |
|
50 |
c.c. |
1.0 |
1.4 |
13.2 |
530 |
230 |
|
70 |
c.c. |
1.1 |
1.4 |
15.1 |
740 |
320 |
|
95 |
c.c. |
1.1 |
1.5 |
17.0 |
1000 |
420 |
|
120 |
c.c. |
1.2 |
1.5 |
18.8 |
1250 |
510 |
|
150 |
c.c. |
1.4 |
1.6 |
20.8 |
1560 |
620 |
|
185 |
c.c. |
1.6 |
1.6 |
23.0 |
1900 |
750 |
|
240 |
c.c. |
1.7 |
1.7 |
25.8 |
2470 |
960 |
|
300 |
c.c. |
1.8 |
1.8 |
28.5 |
3090 |
1190 |
|
400 |
c.c. |
2.0 |
1.9 |
31.9 |
3910 |
1490 |
|
500 |
c.c. |
2.2 |
2.0 |
35.5 |
4900 |
1850 |
|
630 |
c.c. |
2.4 |
2.2 |
40.0 |
6270 |
2350 |
|
800 |
c.c. |
2.6 |
2.3 |
43.5 |
7890 |
2940 |
|
1000 |
r.m. |
2.8 |
2.4 |
52.0 |
9880 |
3690 |
0.6 / 1 (1.2) kV XLPE INSULATED UNARMOURED PVC SHEATHED CABLE – TWO CORES
CU/XLPE/PVC CABLE
AL/XLPE/PVC CABLE
|
Nominal cross- sectional area |
Conductor Shape |
Nominal thickness of insulation |
Nominal thickness of sheath |
Approximate overall diameter |
Approximate weight of cable |
|
|
Copper |
Aluminium |
|||||
|
mm2 |
mm |
mm |
mm |
Kg / Km |
Kg / Km |
|
|
1.5 |
r.m. |
0.7 |
1.8 |
9.7 |
110 |
– |
|
2.5 |
r.m. |
0.7 |
1.8 |
10.5 |
140 |
– |
|
4 |
r.m. |
0.7 |
1.8 |
11.6 |
180 |
– |
|
6 |
r.m. |
0.7 |
1.8 |
12.7 |
240 |
160 |
|
10 |
r.m. |
0.7 |
1.8 |
14.6 |
340 |
220 |
|
16 |
c.c. |
0.7 |
1.8 |
16.5 |
480 |
280 |
|
25 |
c.c. |
0.9 |
1.8 |
19.8 |
710 |
400 |
|
35 |
c.c. |
0.9 |
1.8 |
22.1 |
930 |
500 |
|
50 |
c.c. |
1.0 |
1.8 |
24.8 |
1220 |
630 |
|
70 |
c.c. |
1.1 |
1.8 |
28.6 |
1680 |
840 |
|
95 |
c.c. |
1.1 |
1.9 |
32.4 |
2260 |
1090 |
|
120 |
c.c. |
1.2 |
2.0 |
36.0 |
2830 |
1340 |
|
150 |
c.c. |
1.4 |
2.2 |
40.1 |
3530 |
1640 |
|
185 |
c.c. |
1.6 |
2.3 |
44.7 |
4330 |
2050 |
|
240 |
c.c. |
1.7 |
2.5 |
50.3 |
5620 |
2620 |
|
300 |
c.c. |
1.8 |
2.6 |
55.5 |
6970 |
3200 |
|
400 |
c.c. |
2.0 |
2.9 |
62.5 |
8860 |
4040 |
Note : r.m. – circular stranded, c.c. – compacted circular stranded, s.m. – shaped stranded
0.6 / 1 (1.2) kV XLPE INSULATED UNARMOURED PVC SHEATHED CABLE – THREE CORES
CU/XLPE/PVC CABLE
AL/XLPE/PVC CABLE
|
Nominal cross- sectional area |
Conductor Shape |
Nominal thickness of insulation |
Nominal thickness of sheath |
Approximate overall diameter |
Approximate weight of cable |
|
|
Copper |
Aluminium |
|||||
|
mm2 |
mm |
mm |
mm |
Kg / Km |
Kg / Km |
|
|
1.5 |
r.m. |
0.7 |
1.8 |
10.1 |
130 |
– |
|
2.5 |
r.m. |
0.7 |
1.8 |
11.0 |
170 |
– |
|
4 |
r.m. |
0.7 |
1.8 |
12.2 |
230 |
– |
|
6 |
r.m. |
0.7 |
1.8 |
13.4 |
300 |
190 |
|
10 |
r.m. |
0.7 |
1.8 |
15.4 |
450 |
260 |
|
16 |
c.c. |
0.7 |
1.8 |
17.4 |
630 |
340 |
|
25 |
c.c. |
0.9 |
1.8 |
21.0 |
960 |
490 |
|
35 |
c.c. |
0.9 |
1.8 |
23.5 |
1270 |
620 |
|
50 |
s.m. |
1.0 |
1.8 |
24.1 |
1580 |
700 |
|
70 |
s.m. |
1.1 |
1.9 |
27.9 |
2220 |
950 |
|
95 |
s.m. |
1.1 |
2.0 |
31.4 |
3000 |
1240 |
|
120 |
s.m. |
1.2 |
2.1 |
34.8 |
3750 |
1530 |
|
150 |
s.m. |
1.4 |
2.3 |
38.8 |
4680 |
1890 |
|
185 |
s.m. |
1.6 |
2.4 |
43.2 |
5760 |
2340 |
|
240 |
s.m. |
1.7 |
2.6 |
48.6 |
7490 |
2990 |
|
300 |
s.m. |
1.8 |
2.7 |
53.4 |
9320 |
3650 |
|
400 |
s.m. |
2.0 |
3.0 |
60.1 |
11860 |
4630 |
0.6 / 1 (1.2) kV XLPE INSULATED UNARMOURED PVC SHEATHED CABLE – FOUR CORES
CU/XLPE/PVC CABLE
AL/XLPE/PVC CABLE
|
Nominal cross- sectional area |
Conductor Shape |
Nominal thickness of insulation |
Nominal thickness of sheath |
Approximate overall diameter |
Approximate weight of cable |
|
|
Copper |
Aluminium |
|||||
|
mm2 |
mm |
mm |
mm |
Kg / Km |
Kg / Km |
|
|
1.5 |
r.m. |
0.7 |
1.8 |
10.9 |
160 |
– |
|
2.5 |
r.m. |
0.7 |
1.8 |
11.9 |
210 |
– |
|
4 |
r.m. |
0.7 |
1.8 |
13.2 |
280 |
– |
|
6 |
r.m. |
0.7 |
1.8 |
14.6 |
380 |
230 |
|
10 |
r.m. |
0.7 |
1.8 |
16.9 |
570 |
320 |
|
16 |
c.c. |
0.7 |
1.8 |
19.0 |
810 |
420 |
|
25 |
c.c. |
0.9 |
1.8 |
23.0 |
1240 |
610 |
|
35 |
c.c. |
0.9 |
1.8 |
25.8 |
1640 |
780 |
|
50 |
s.m. |
1.0 |
1.8 |
27.1 |
2110 |
920 |
|
70 |
s.m. |
1.1 |
2.0 |
31.6 |
2980 |
1280 |
|
95 |
s.m. |
1.1 |
2.1 |
35.7 |
4020 |
1660 |
|
120 |
s.m. |
1.2 |
2.3 |
39.8 |
5050 |
2070 |
|
150 |
s.m. |
1.4 |
2.4 |
44.1 |
6280 |
2540 |
|
185 |
s.m. |
1.6 |
2.6 |
49.3 |
7760 |
3170 |
|
240 |
s.m. |
1.7 |
2.8 |
55.4 |
10080 |
4040 |
|
300 |
s.m. |
1.8 |
3.0 |
61.3 |
12560 |
4980 |
|
400 |
s.m. |
2.0 |
3.3 |
68.9 |
15940 |
6300 |

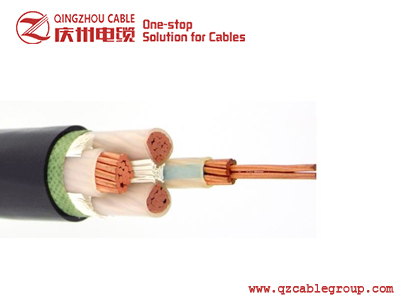

0.6 / 1 (1.2) kV XLPE INSULATED UNARMOURED PVC SHEATHED CABLE- FOUR CORES WITH REDUCED NEUTRAL
CU/XLPE/PVC CABLE
AL/XLPE/PVC CABLE
|
Phase |
Neutral |
Phase |
Neutral |
Nominal thickness of sheath |
Approximate overall diameter |
Approximate weight of cable |
|||
|
Nominal cross- Sectional area |
|
Nominal cross- Sectional area |
|
Nominal Thickness of insulation |
Copper |
Aluminium |
|||
|
mm2 |
mm2 |
mm |
mm |
mm |
mm |
Kg / Km |
Kg / Km |
||
|
25 |
c.c. |
16 |
c.c. |
0.9 |
0.7 |
1.8 |
22.2 |
1130 |
570 |
|
35 |
c.c. |
16 |
c.c. |
0.9 |
0.7 |
1.8 |
24.3 |
1440 |
700 |
|
50 |
s.m. |
25 |
c.c. |
1.0 |
0.9 |
1.8 |
27.1 |
1890 |
870 |
|
70 |
s.m. |
35 |
c.c. |
1.1 |
0.9 |
2.0 |
31.4 |
2640 |
1190 |
|
95 |
s.m. |
50 |
c.c. |
1.1 |
1.0 |
2.1 |
35.7 |
3570 |
1560 |
|
120 |
s.m. |
70 |
c.c. |
1.2 |
1.1 |
2.3 |
39.6 |
4540 |
1940 |
|
150 |
s.m. |
70 |
c.c. |
1.4 |
1.1 |
2.4 |
43.9 |
5480 |
2340 |
|
185 |
s.m. |
95 |
c.c. |
1.6 |
1.1 |
2.6 |
49.1 |
6860 |
2940 |
|
240 |
s.m. |
120 |
c.c. |
1.7 |
1.2 |
2.8 |
55.0 |
8840 |
3720 |
|
300 |
s.m. |
150 |
c.c. |
1.8 |
1.4 |
3.0 |
60.9 |
11020 |
4590 |
|
400 |
s.m. |
185 |
c.c. |
2.0 |
1.6 |
3.3 |
68.5 |
13960 |
5800 |
Note : r.m. – circular stranded, c.c. – compacted circular stranded, s.m. – shaped stranded
0.6 / 1 (1.2) kV XLPE INSULATED UNARMOURED PVC SHEATHED CABLE – FIVE CORES
CU/XLPE/PVC CABLE
AL/XLPE/PVC CABLE
|
Nominal cross- sectional area |
Conductor Shape |
Nominal thickness of insulation |
Nominal thickness of sheath |
Approximate overall diameter |
Approximate weight of cable |
|
|
Copper |
Aluminium |
|||||
|
mm2 |
mm |
mm |
mm |
Kg / Km |
Kg / Km |
|
|
1.5 |
r.m. |
0.7 |
1.8 |
11.8 |
190 |
– |
|
2.5 |
r.m. |
0.7 |
1.8 |
12.9 |
240 |
– |
|
4 |
r.m. |
0.7 |
1.8 |
14.4 |
340 |
– |
|
6 |
r.m. |
0.7 |
1.8 |
15.9 |
450 |
260 |
|
10 |
r.m. |
0.7 |
1.8 |
18.4 |
670 |
360 |
|
16 |
c.c. |
0.7 |
1.8 |
20.8 |
1000 |
510 |
|
25 |
c.c. |
0.9 |
1.8 |
25.2 |
1530 |
750 |
|
35 |
c.c. |
0.9 |
1.8 |
28.4 |
2040 |
960 |
|
50 |
c.c. |
1.0 |
1.9 |
32.3 |
2710 |
1230 |
|
70 |
c.c. |
1.1 |
2.1 |
37.8 |
3800 |
1690 |
|
95 |
c.c. |
1.1 |
2.2 |
42.8 |
5140 |
2210 |
Note : r.m. – circular stranded, c.c. – compacted circular stranded, s.m. – shaped stranded
XLPE INSULATED ARMOURED PVC SHEATHED CABLE 0.6 / 1 (1.2) kV
DESCRIPTION
Single core and multicore cables with copper or aluminium conductor, XLPE insulated, armoured and PVC sheathed. Cables are rated at 0.6 / 1 (1.2) kV and conformed to IEC 60502, MS 2105 & MS 2107.
CONSTRUCTION
Conductor
Plain circular, compacted or shaped stranded copper or aluminium conductor, conform to IEC 60228 class 2.
Insulation
XLPE ( cross-linked polyethylene ) rated at 90 oC.
Colours for core identification
Single core – natural (black on request)
Two cores – red, black OR
Three cores – red, yellow and blue
Four cores – red, yellow, blue and black
Five cores – red, yellow, blue, black and green/yellow
Optional colours
Single core – natural (brown or blue on request) Two cores – brown, blue
Three cores – brown, black, grey
Four cores – brown, black, grey, blue
Five cores – brown, black, grey, blue and green/yellow
Assembly
Two, three, four or five insulated conductors are laid up together, if necessary filled with non- hygroscopic material compatible with the insulation and covered with a layer of PVC bedding which may be an integral part of the filling.
Armour
Single Core – Aluminium wire shall be applied over the PVC bedding. Multicore – Galvanized steel wire shall be applied over the PVC bedding.
Sheath
PVC type ST2 to IEC 60502 colour black.
APPLICATION
These cables are most suitable for underground burial where there is a risk of mechanical damage.
Note : Cables complying with BS5467 and customer’s specification are available upon request.
0.6 / 1 (1.2) kV XLPE INSULATED ARMOURED PVC SHEATHED CABLE – SINGLE CORE
CU/XLPE/PVC/AWA/PVC CABLE
AL/XLPE/PVC/AWA/PVC CABLE
|
Nominal cross- sectional area |
Conductor Shape |
Nominal thickness of insulation |
Nominal diameter of aluminium wire |
Nominal thickness of sheath |
Approximate overall diameter |
Approximate weight of cable |
|
|
Copper |
Aluminium |
||||||
|
mm2 |
mm |
mm |
mm |
mm |
Kg / Km |
Kg / Km |
|
|
16 |
c.c. |
0.7 |
0.9 |
1.8 |
13.6 |
350 |
250 |
|
25 |
c.c. |
0.9 |
0.9 |
1.8 |
15.2 |
470 |
310 |
|
35 |
c.c. |
0.9 |
0.9 |
1.8 |
16.4 |
590 |
370 |
|
50 |
c.c. |
1.0 |
1.25 |
1.8 |
18.5 |
770 |
480 |
|
70 |
c.c. |
1.1 |
1.25 |
1.8 |
20.4 |
1010 |
580 |
|
95 |
c.c. |
1.1 |
1.25 |
1.8 |
22.1 |
1290 |
700 |
|
120 |
c.c. |
1.2 |
1.6 |
1.8 |
24.6 |
1630 |
880 |
|
150 |
c.c. |
1.4 |
1.6 |
1.8 |
26.4 |
1950 |
1010 |
|
185 |
c.c. |
1.6 |
1.6 |
1.8 |
28.6 |
2340 |
1180 |
|
240 |
c.c. |
1.7 |
1.6 |
1.9 |
31.4 |
2950 |
1430 |
|
300 |
c.c. |
1.8 |
1.6 |
1.9 |
33.9 |
3600 |
1690 |
|
400 |
c.c. |
2.0 |
2.0 |
2.1 |
39.2 |
4610 |
2170 |
|
500 |
c.c. |
2.2 |
2.0 |
2.2 |
42.8 |
5670 |
2600 |
|
630 |
c.c. |
2.4 |
2.0 |
2.3 |
47.1 |
7110 |
3180 |
|
800 |
c.c. |
2.6 |
2.5 |
2.5 |
52.2 |
9020 |
4070 |
|
1000 |
r.m. |
2.8 |
2.5 |
2.7 |
60.9 |
11260 |
5070 |
0.6 / 1 (1.2) kV XLPE INSULATED ARMOURED PVC SHEATHED CABLE – TWO CORES
CU/XLPE/PVC/SWA/PVC CABLE
AL/XLPE/PVC/SWA/PVC CABLE
|
Nominal cross- sectional area |
Conductor Shape |
Nominal thickness of insulation |
Nominal diameter of steel wire |
Nominal thickness of sheath |
Approximate overall diameter |
Approximate weight of cable |
|
|
Copper |
Aluminium |
||||||
|
mm2 |
mm |
mm |
mm |
mm |
Kg / Km |
Kg / Km |
|
|
1.5 |
r.m. |
0.7 |
0.9 |
1.8 |
13.5 |
340 |
– |
|
2.5 |
r.m. |
0.7 |
0.9 |
1.8 |
14.3 |
380 |
– |
|
4 |
r.m. |
0.7 |
0.9 |
1.8 |
15.4 |
460 |
– |
|
6 |
r.m. |
0.7 |
0.9 |
1.8 |
16.5 |
530 |
450 |
|
10 |
r.m. |
0.7 |
1.25 |
1.8 |
19.1 |
780 |
660 |
|
16 |
c.c. |
0.7 |
1.25 |
1.8 |
21.0 |
970 |
770 |
|
25 |
c.c. |
0.9 |
1.6 |
1.8 |
25.0 |
1440 |
1120 |
|
35 |
c.c. |
0.9 |
1.6 |
1.8 |
27.3 |
1760 |
1300 |
|
50 |
c.c. |
1.0 |
1.6 |
1.8 |
30.0 |
2120 |
1530 |
|
70 |
c.c. |
1.1 |
1.6 |
2.0 |
34.2 |
2760 |
1910 |
|
95 |
c.c. |
1.1 |
2.0 |
2.1 |
39.2 |
3790 |
2600 |
|
120 |
c.c. |
1.2 |
2.0 |
2.2 |
42.8 |
4510 |
3020 |
|
150 |
c.c. |
1.4 |
2.0 |
2.3 |
46.7 |
5350 |
3430 |
|
185 |
c.c. |
1.6 |
2.5 |
2.5 |
53.7 |
6870 |
4500 |
|
240 |
c.c. |
1.7 |
2.5 |
2.7 |
59.3 |
8450 |
5320 |
|
300 |
c.c. |
1.8 |
2.5 |
2.8 |
64.9 |
10150 |
6220 |
|
400 |
c.c. |
2.0 |
2.5 |
3.1 |
71.9 |
12390 |
7410 |
|
500 |
c.c. |
2.2 |
3.15 |
3.3 |
78.9 |
15730 |
9660 |
Note : r.m. – circular stranded, c.c. – compacted circular stranded, s.m. – shaped stranded
0.6 /1 (1.2) kV XLPE INSULATED ARMOURED PVC SHEATHED CABLE – THREE CORES
CU/XLPE/PVC/SWA/PVC CABLE
AL/XLPE/PVC/SWA/PVC CABLE
|
Nominal cross- sectional area |
Conductor Shape |
Nominal thickness of insulation |
Nominal diameter of steel wire |
Nominal thickness of sheath |
Approximate overall diameter |
Approximate weight of cable |
|
|
Copper |
Aluminium |
||||||
|
mm2 |
mm |
mm |
mm |
mm |
Kg / Km |
Kg / Km |
|
|
1.5 |
r.m. |
0.7 |
0.9 |
1.8 |
13.9 |
370 |
– |
|
2.5 |
r.m. |
0.7 |
0.9 |
1.8 |
14.8 |
430 |
– |
|
4 |
r.m. |
0.7 |
0.9 |
1.8 |
16.0 |
510 |
– |
|
6 |
r.m. |
0.7 |
0.9 |
1.8 |
17.2 |
610 |
500 |
|
10 |
r.m. |
0.7 |
1.25 |
1.8 |
19.9 |
910 |
730 |
|
16 |
c.c. |
0.7 |
1.25 |
1.8 |
21.9 |
1150 |
860 |
|
25 |
c.c. |
0.9 |
1.6 |
1.8 |
26.2 |
1740 |
1260 |
|
35 |
c.c. |
0.9 |
1.6 |
1.8 |
28.7 |
2130 |
1460 |
|
50 |
s.m. |
1.0 |
1.6 |
1.9 |
29.5 |
2480 |
1600 |
|
70 |
s.m. |
1.1 |
2.0 |
2.0 |
34.5 |
3540 |
2270 |
|
95 |
s.m. |
1.1 |
2.0 |
2.2 |
38.2 |
4460 |
2700 |
|
120 |
s.m. |
1.2 |
2.0 |
2.3 |
41.6 |
5380 |
3150 |
|
150 |
s.m. |
1.4 |
2.5 |
2.5 |
48.0 |
6890 |
4100 |
|
185 |
s.m. |
1.6 |
2.5 |
2.6 |
52.4 |
8210 |
4790 |
|
240 |
s.m. |
1.7 |
2.5 |
2.8 |
58.2 |
10290 |
5780 |
|
300 |
s.m. |
1.8 |
2.5 |
3.0 |
63.2 |
12390 |
6720 |
|
400 |
s.m. |
2.0 |
2.5 |
3.2 |
69.7 |
15250 |
8020 |
|
500 |
c.c. |
2.2 |
3.15 |
3.5 |
84.5 |
20660 |
11550 |
0.6 / 1 (1.2) kV XLPE INSULATED ARMOURED PVC SHEATHED CABLE – FOUR CORES
CU/XLPE/PVC/SWA/PVC CABLE
AL/XLPE/PVC/SWA/PVC CABLE
|
Nominal cross- sectional area |
Conductor Shape |
Nominal thickness of insulation |
Nominal diameter of steel wire |
Nominal thickness of sheath |
Approximate overall diameter |
Approximate weight of cable |
|
|
Copper |
Aluminium |
||||||
|
mm2 |
mm |
mm |
mm |
mm |
Kg / Km |
Kg / Km |
|
|
1.5 |
r.m. |
0.7 |
0.9 |
1.8 |
14.7 |
410 |
– |
|
2.5 |
r.m. |
0.7 |
0.9 |
1.8 |
15.7 |
480 |
– |
|
4 |
r.m. |
0.7 |
0.9 |
1.8 |
17.0 |
580 |
– |
|
6 |
r.m. |
0.7 |
1.25 |
1.8 |
19.1 |
820 |
680 |
|
10 |
r.m. |
0.7 |
1.25 |
1.8 |
21.4 |
1070 |
820 |
|
16 |
c.c. |
0.7 |
1.6 |
1.8 |
24.2 |
1520 |
1120 |
|
25 |
c.c. |
0.9 |
1.6 |
1.8 |
28.2 |
2080 |
1460 |
|
35 |
c.c. |
0.9 |
1.6 |
1.9 |
31.2 |
2600 |
1730 |
|
50 |
s.m. |
1.0 |
1.6 |
2.0 |
32.7 |
3130 |
1940 |
|
70 |
s.m. |
1.1 |
2.0 |
2.2 |
38.4 |
4480 |
2770 |
|
95 |
s.m. |
1.1 |
2.0 |
2.3 |
42.5 |
5680 |
3320 |
|
120 |
s.m. |
1.2 |
2.5 |
2.5 |
48.8 |
7310 |
4330 |
|
150 |
s.m. |
1.4 |
2.5 |
2.6 |
53.1 |
8780 |
5040 |
|
185 |
s.m. |
1.6 |
2.5 |
2.8 |
58.3 |
10510 |
5910 |
|
240 |
s.m. |
1.7 |
2.5 |
3.0 |
64.8 |
13220 |
7180 |
|
300 |
s.m. |
1.8 |
2.5 |
3.2 |
70.7 |
16000 |
8420 |
|
400 |
s.m. |
2.0 |
3.15 |
3.5 |
80.3 |
20750 |
11110 |
|
500 |
c.c. |
2.2 |
3.15 |
3.8 |
93.0 |
26130 |
14060 |
Note : r.m. – circular stranded, c.c. – compacted circular stranded, s.m. – shaped stranded
0.6 / 1 (1.2) kV XLPE INSULATED ARMOURED PVC SHEATHED CABLE- FOUR CORES WITH REDUCED NEUTRAL
CU/XLPE/PVC/SWA/PVC CABLE
AL/XLPE/PVC/SWA/PVC CABLE
|
Phase |
Neutral |
Phase |
Neutral |
Nominal diameter of steel wire |
Nominal thickness of sheath |
Approximate overall diameter |
Approximate weight of cable |
||||
|
Nominal cross- sectional area |
Conductor Shape |
Nominal cross- sectional area |
Conductor Shape |
Nominal Thickness of insulation |
Copper |
Aluminium |
|||||
|
mm2 |
|
mm2 |
|
mm |
mm |
mm |
mm |
mm |
Kg / Km |
Kg / Km |
|
|
25 |
c.c. |
16 |
c.c. |
0.9 |
0.7 |
1.6 |
1.8 |
27.4 |
1950 |
1390 |
|
|
35 |
c.c. |
16 |
c.c. |
0.9 |
0.7 |
1.6 |
1.9 |
29.5 |
2320 |
1580 |
|
|
50 |
s.m. |
25 |
c.c. |
1.0 |
0.9 |
1.6 |
2.0 |
32.5 |
2890 |
1850 |
|
|
70 |
s.m. |
35 |
c.c. |
1.1 |
0.9 |
2.0 |
2.2 |
38.2 |
4130 |
2640 |
|
|
95 |
s.m. |
50 |
c.c. |
1.1 |
1.0 |
2.0 |
2.3 |
42.3 |
5200 |
3150 |
|
|
120 |
s.m. |
70 |
c.c. |
1.2 |
1.1 |
2.5 |
2.5 |
46.4 |
6360 |
3720 |
|
|
150 |
s.m. |
70 |
c.c. |
1.4 |
1.1 |
2.5 |
2.6 |
52.9 |
7970 |
4760 |
|
|
185 |
s.m. |
95 |
c.c. |
1.6 |
1.1 |
2.5 |
2.8 |
58.1 |
9600 |
5590 |
|
|
240 |
s.m. |
120 |
c.c. |
1.7 |
1.2 |
2.5 |
3.0 |
64.6 |
12000 |
6750 |
|
|
300 |
s.m. |
150 |
c.c. |
1.8 |
1.4 |
2.5 |
3.2 |
70.3 |
14450 |
7860 |
|
|
400 |
s.m. |
185 |
c.c. |
2.0 |
1.6 |
3.15 |
3.5 |
79.5 |
18690 |
9720 |
|
0.6 / 1 (1.2) kV XLPE INSULATED ARMOURED PVC SHEATHED CABLE – FIVE CORES
CU/XLPE/PVC/SWA/PVC CABLE
AL/XLPE/PVC/SWA/PVC CABLE
|
Nominal cross- sectional area |
Conductor Shape |
Nominal thickness of insulation |
Nominal diameter of steel wire |
Nominal thickness of sheath |
Approximate overall diameter |
Approximate weight of cable |
|
|
Copper |
Aluminium |
||||||
|
mm2 |
mm |
mm |
mm |
mm |
Kg / Km |
Kg / Km |
|
|
1.5 |
r.m. |
0.7 |
0.9 |
1.8 |
15.6 |
450 |
– |
|
2.5 |
r.m. |
0.7 |
0.9 |
1.8 |
16.7 |
540 |
– |
|
4 |
r.m. |
0.7 |
1.25 |
1.8 |
18.9 |
770 |
– |
|
6 |
r.m. |
0.7 |
1.25 |
1.8 |
20.4 |
930 |
740 |
|
10 |
r.m. |
0.7 |
1.25 |
1.8 |
22.9 |
1220 |
910 |
|
16 |
c.c. |
0.7 |
1.6 |
1.8 |
26.0 |
1770 |
1280 |
|
25 |
c.c. |
0.9 |
1.6 |
1.8 |
30.4 |
2450 |
1670 |
|
35 |
c.c. |
0.9 |
1.6 |
1.9 |
33.8 |
3100 |
2020 |
|
50 |
c.c. |
1.0 |
2.0 |
2.1 |
39.1 |
4230 |
2760 |
|
70 |
c.c. |
1.1 |
2.0 |
2.3 |
44.6 |
5550 |
3440 |
|
95 |
c.c. |
1.1 |
2.5 |
2.4 |
51.8 |
7580 |
4650 |
Note : r.m. – circular stranded, c.c. – compacted circular stranded, s.m. – shaped stranded
XLPE INSULATED, PE INNER SHEATH, SCREENED AND PE SHEATHED UNDERGROUND CABLE 0.6 / 1 (1.2) kV
DESCRIPTION
Circular compacted and shaped stranded aluminium conductor, XLPE insulated, four cores assembled together with non- hygroscopic filler, extruded with PE inner sheath, copper tape screened and followed by an extruded PE outer sheath. Cables are rated at 0.6/1 (1.2) kV and conformed to IEC 60502.
CONSTRUCTION
Conductor
Plain compacted or shaped stranded aluminium conductor, conform to IEC 60228 class 2.
Insulation
XLPE (cross-linked polyethylene) rated at 90 oC.
Colours for core identification
Optional colours
OR Four cores – brown, black, grey, blue
Assembly
Four insulated conductors are laid up together, if necessary filled with non-hygroscopic material compatible with the insulation and inner sheath materials.
Inner Sheath
Medium density polyetylene (MDPE).
Metallic Screen
Copper tape screen (SCT).
Sheath
Medium density polyethylene (MDPE).
APPLICATION
These cables are designated for general use including underground burial, where they are not likely to suffer mechanical damage.
Four cores – red, yellow, blue, and black
0.6/1(1.2)kV XLPE INSULATED SCREENED PE SHEATHED CABLE – FOUR CORES AL/XLPE/MDPE/SCT/MDPE CABLE ( WITH COPPER TAPE SCREENED )
|
Nominal cross- sectional area |
Conductor Shape |
Nominal thickness of insulation |
Nominal thickness of PE inner sheath |
Metallic Screening |
Nominal thickness of PE outer sheath |
Approximate overall diameter |
Approximate weight of cable |
|
Approximate thickness of copper tape |
Aluminium |
||||||
|
mm2 |
mm |
mm |
mm |
mm |
mm |
kg/mm |
|
|
16 |
c.c. |
0.7 |
1.0 |
0.2 |
1.8 |
21.4 |
538 |
|
25 |
c.c. |
0.9 |
1.0 |
0.2 |
1.8 |
25.4 |
758 |
|
35 |
c.c. |
0.9 |
1.0 |
0.2 |
1.8 |
28.1 |
943 |
|
50 |
s.m. |
1.0 |
1.0 |
0.2 |
1.9 |
30.2 |
1139 |
|
70 |
s.m. |
1.1 |
1.2 |
0.2 |
2.0 |
34.9 |
1532 |
|
95 |
s.m. |
1.1 |
1.2 |
0.2 |
2.2 |
39.2 |
1960 |
|
120 |
s.m. |
1.2 |
1.4 |
0.2 |
2.3 |
43.5 |
2417 |
|
150 |
s.m. |
1.4 |
1.4 |
0.2 |
2.5 |
48.0 |
2923 |
|
185 |
s.m. |
1.6 |
1.4 |
0.2 |
2.6 |
53.0 |
3575 |
|
240 |
s.m. |
1.7 |
1.6 |
0.2 |
2.8 |
59.5 |
4534 |
|
300 |
s.m. |
1.8 |
1.6 |
0.2 |
3.0 |
65.4 |
5516 |
|
400 |
s.m. |
2.0 |
1.8 |
0.2 |
3.3 |
73.4 |
6945 |
Note : c.c. – compacted circular stranded, s.m. – shaped stranded
XLPE INSULATED ARMOURED PVC SHEATHED CABLE 1.9 / 3.3 (3.6) kV
DESCRIPTION
Single core and multicore cables with copper or aluminium conductor, XLPE insulated, armoured and PVC sheathed. Cables are rated at 1.9 / 3.3 (3.6) kV and conformed to IEC 60502.
CONSTRUCTION
Conductor
Plain circular, compacted stranded copper or aluminium conductor, conform to IEC 60228 class 2.
Insulation
XLPE (cross-linked polyethylene) rated at 90 oC.
Colours for core identification
Single core – natural OR Three cores- red, yellow, and blue
Optional colours
Single core – natural
Three cores – brown, black and grey
Assembly
Three insulated conductors are laid up together, if necessary, filled with non-hygroscopic material compatible with the insulation and covered with layer of PVC bedding which may be an integral part of the filling.
Armour
Single Core – Aluminium wire shall be applied over the PVC bedding. Multicore – Galvanized steel wire shall be applied over the PVC bedding.
Sheath
PVC type ST2 to IEC 60502 colour black.
APPLICATION
These cables are most suitable for underground burial where there is a risk of mechanical damage.
Note : Cables complying with BS5467 and customer’s specification are available upon request.
1.9 / 3.3 (3.6) kV XLPE INSULATED ARMOURED PVC SHEATHED CABLE – SINGLE CORE
CU/XLPE/PVC/AWA/PVC CABLE
AL/XLPE/PVC/AWA/PVC CABLE
|
Nominal cross- sectional area |
Conductor Shape |
Nominal thickness of insulation |
Nominal diameter of aluminium wire |
Nominal thickness of sheath |
Approximate overall diameter |
Approximate weight of cable |
|
|
Copper |
Aluminium |
||||||
|
mm2 |
mm |
mm |
mm |
mm |
Kg / Km |
Kg / Km |
|
|
10 |
r.m. |
2.0 |
0.9 |
1.8 |
15.5 |
367 |
304 |
|
16 |
c.c. |
2.0 |
0.9 |
1.8 |
16.2 |
439 |
339 |
|
25 |
c.c. |
2.0 |
1.25 |
1.8 |
18.1 |
598 |
439 |
|
35 |
c.c. |
2.0 |
1.25 |
1.8 |
19.3 |
720 |
499 |
|
50 |
c.c. |
2.0 |
1.25 |
1.8 |
20.5 |
867 |
568 |
|
70 |
c.c. |
2.0 |
1.25 |
1.8 |
22.2 |
1108 |
676 |
|
95 |
c.c. |
2.0 |
1.6 |
1.8 |
24.8 |
1445 |
846 |
|
120 |
c.c. |
2.0 |
1.6 |
1.8 |
26.2 |
1714 |
958 |
|
150 |
c.c. |
2.0 |
1.6 |
1.8 |
27.6 |
2008 |
1079 |
|
185 |
c.c. |
2.0 |
1.6 |
1.8 |
29.4 |
2404 |
1238 |
|
240 |
c.c. |
2.0 |
1.6 |
1.9 |
31.9 |
3037 |
1490 |
|
300 |
c.c. |
2.0 |
1.6 |
2.0 |
34.3 |
3691 |
1750 |
|
400 |
c.c. |
2.0 |
2.0 |
2.1 |
38.4 |
4708 |
2226 |
|
500 |
c.c. |
2.2 |
2.0 |
2.2 |
41.9 |
5788 |
2659 |
|
630 |
c.c. |
2.4 |
2.0 |
2.3 |
46.1 |
7311 |
3251 |
|
800 |
c.c. |
2.6 |
2.5 |
2.5 |
52.2 |
9390 |
4197 |
|
1000 |
r.m. |
2.8 |
2.5 |
2.7 |
60.9 |
11799 |
5252 |
1.9 / 3.3 (3.6) kV XLPE INSULATED ARMOURED PVC SHEATHED CABLE – THREE CORES
CU/XLPE/PVC/SWA/PVC CABLE
AL/XLPE/PVC/SWA/PVC CABLE
|
Nominal cross- sectional area |
Conductor Shape |
Nominal thickness of insulation |
Nominal diameter of steel wire |
Nominal thickness of sheath |
Approximate overall diameter |
Approximate weight of cable |
|
|
Copper |
Aluminium |
||||||
|
mm2 |
mm |
mm |
mm |
mm |
Kg / Km |
Kg / Km |
|
|
10 |
r.m |
2.0 |
1.6 |
1.8 |
26.2 |
1418 |
1224 |
|
16 |
c.c |
2.0 |
1.6 |
1.8 |
27.8 |
1678 |
1371 |
|
25 |
c.c |
2.0 |
1.6 |
1.9 |
30.7 |
2116 |
1629 |
|
35 |
c.c |
2.0 |
1.6 |
1.9 |
33.2 |
2540 |
1865 |
|
50 |
c.c |
2.0 |
2.0 |
2.1 |
37.8 |
3422 |
2508 |
|
70 |
c.c |
2.0 |
2.0 |
2.2 |
41.6 |
4293 |
2972 |
|
95 |
c.c |
2.0 |
2.0 |
2.3 |
44.8 |
5273 |
3441 |
|
120 |
c.c |
2.0 |
2.5 |
2.4 |
50.6 |
6731 |
4416 |
|
150 |
c.c |
2.0 |
2.5 |
2.5 |
53.8 |
7768 |
4924 |
|
185 |
c.c |
2.0 |
2.5 |
2.7 |
57.9 |
9192 |
5625 |
|
240 |
c.c |
2.0 |
2.5 |
2.8 |
63.6 |
11472 |
6738 |
|
300 |
c.c |
2.0 |
2.5 |
3.0 |
68.8 |
13711 |
7773 |
|
400 |
c.c |
2.0 |
2.5 |
3.2 |
75.0 |
16756 |
9161 |
Note : r.m. – circular stranded, c.c. – compacted circular stranded
SINGLE CORE – XLPE INSULATED UNARMOURED PVC SHEATHED CABLE FOR VOLTAGES 6.6 kV UP TO AND INCLUDING 33kV TO IEC 60502
DESCRIPTION
Circular compacted stranded copper or aluminium conductor, XLPE insulated, with copper wire or copper tape screened and PVC outer sheath.
CONSTRUCTION
Conductor
Plain circular compacted stranded copper or aluminium conductor to IEC 60228 class 2.
Conductor Screen
Extruded layer of semiconductive compound.
Insulation
XLPE (cross-linked polyethylene) rated at 90 oC.
Insulation Screen
Non-metallic part
Extruded layer of semiconductive compound.
Metallic part
Copper wire screen (SCW) or Copper tape screen (SCT).
Outer Sheath
PVC type ST2 to IEC 60502 colour black.
APPLICATION
For installation on trays, ducts or direct burial .
Note : Cables complying with BS 6622 and customer’s specification are available upon request.
: PE outer sheath is available upon request.
3.8 / 6.6 (7.2) kV XLPE INSULATED UNARMOURED PVC SHEATHED CABLE – SINGLE CORE
CU/XLPE/SCW/PVC CABLE ( WITH COPPER WIRE SCREENED )
AL/XLPE/SCW/PVC CABLE ( WITH COPPER WIRE SCREENED )
|
Nominal cross- |
Nominal |
Nominal thickness of XLPE insulation |
Nominal cross- sectional area of metallic screen |
Nominal |
Approximate overall diameter of cable |
Approximate weight of cable |
|
|
|
|
||||||
|
sectional area of conductor |
diameter of conductor |
thickness of PVC sheath |
Copper |
Aluminium |
|||
|
mm2 |
mm |
mm |
mm2 |
mm |
mm |
Kg / Km |
Kg / Km |
|
50 |
8.1 |
3.0 |
16 |
1.6 |
22 |
933 |
635 |
|
70 |
9.7 |
3.0 |
16 |
1.7 |
24 |
1174 |
743 |
|
95 |
11.5 |
3.0 |
16 |
1.7 |
26 |
1456 |
858 |
|
120 |
12.9 |
3.0 |
16 |
1.8 |
28 |
1729 |
973 |
|
150 |
14.3 |
3.0 |
25 |
1.8 |
29 |
2095 |
1167 |
|
185 |
16.1 |
3.0 |
25 |
1.9 |
31 |
2492 |
1328 |
|
240 |
18.4 |
3.0 |
25 |
2.0 |
34 |
3113 |
1567 |
|
300 |
20.6 |
3.0 |
25 |
2.0 |
36 |
3735 |
1796 |
|
400 |
23.3 |
3.0 |
35 |
2.2 |
39 |
4712 |
2232 |
|
500 |
26.2 |
3.2 |
35 |
2.3 |
42 |
5765 |
2638 |
|
630 |
29.8 |
3.2 |
35 |
2.4 |
46 |
7231 |
3158 |
|
800 |
33.7 |
3.2 |
50 |
2.5 |
50 |
9128 |
3940 |
3.8 / 6.6 (7.2) kV XLPE INSULATED UNARMOURED PVC SHEATHED CABLE – SINGLE CORE
CU/XLPE/SCT/PVC CABLE ( WITH COPPER TAPE SCREENED )
AL/XLPE/SCT/PVC CABLE ( WITH COPPER TAPE SCREENED )
|
Nominal cross- sectional area of conductor |
Nominal diameter of conductor |
Nominal thickness of XLPE insulation |
Metallic Screening |
Nominal thickness of PVC sheath |
Approximate overall diameter of cable |
Approximate weight of cable |
|
|
Approximate thickness of copper tape |
Copper |
Aluminium |
|||||
|
mm2 |
mm |
mm |
mm |
mm |
mm |
Kg / Km |
Kg / Km |
|
50 |
8.1 |
3.0 |
0.1 |
1.6 |
20 |
805 |
506 |
|
70 |
9.7 |
3.0 |
0.1 |
1.7 |
22 |
1049 |
618 |
|
95 |
11.5 |
3.0 |
0.1 |
1.7 |
24 |
1335 |
737 |
|
120 |
12.9 |
3.0 |
0.1 |
1.8 |
25 |
1610 |
855 |
|
150 |
14.3 |
3.0 |
0.1 |
1.8 |
27 |
1897 |
968 |
|
185 |
16.1 |
3.0 |
0.1 |
1.9 |
29 |
2297 |
1132 |
|
240 |
18.4 |
3.0 |
0.1 |
2.0 |
31 |
2922 |
1376 |
|
300 |
20.6 |
3.0 |
0.1 |
2.0 |
34 |
3550 |
1611 |
|
400 |
23.3 |
3.0 |
0.1 |
2.1 |
36 |
4422 |
1942 |
|
500 |
26.2 |
3.2 |
0.1 |
2.2 |
40 |
5479 |
2353 |
|
630 |
29.8 |
3.2 |
0.1 |
2.3 |
44 |
6953 |
2897 |
|
800 |
33.7 |
3.2 |
0.1 |
2.5 |
49 |
8741 |
3553 |
6.35 / 11 (12) kV XLPE INSULATED UNARMOURED PVC SHEATHED CABLE – SINGLE CORE
CU/XLPE/SCW/PVC CABLE ( WITH COPPER WIRE SCREENED )
AL/XLPE/SCW/PVC CABLE ( WITH COPPER WIRE SCREENED )
|
Nominal cross- |
Nominal |
Nominal thickness of XLPE insulation |
Nominal cross- sectional area of metallic screen |
Nominal |
Approximate overall diameter of cable |
Approximate weight of cable |
|
|
|
|
||||||
|
sectional area of conductor |
diameter of conductor |
thickness of PVC sheath |
Copper |
Aluminium |
|||
|
mm2 |
mm |
mm |
mm2 |
mm |
mm |
Kg / Km |
Kg / Km |
|
50 |
8.1 |
3.4 |
16 |
1.7 |
23 |
972 |
673 |
|
70 |
9.7 |
3.4 |
16 |
1.7 |
25 |
1204 |
773 |
|
95 |
11.5 |
3.4 |
16 |
1.8 |
27 |
1501 |
903 |
|
120 |
12.9 |
3.4 |
16 |
1.8 |
28 |
1763 |
1007 |
|
150 |
14.3 |
3.4 |
25 |
1.9 |
30 |
2145 |
1217 |
|
185 |
16.1 |
3.4 |
25 |
1.9 |
32 |
2530 |
1366 |
|
240 |
18.4 |
3.4 |
25 |
2.0 |
34 |
3153 |
1608 |
|
300 |
20.6 |
3.4 |
25 |
2.1 |
37 |
3796 |
1857 |
|
400 |
23.3 |
3.4 |
35 |
2.2 |
40 |
4760 |
2280 |
|
500 |
26.2 |
3.4 |
35 |
2.3 |
43 |
5790 |
2664 |
|
630 |
29.8 |
3.4 |
35 |
2.4 |
47 |
7259 |
3203 |
|
800 |
33.7 |
3.4 |
50 |
2.5 |
51 |
9159 |
3971 |
6.35 / 11 (12) kV XLPE INSULATED UNARMOURED PVC SHEATHED CABLE – SINGLE CORE
CU/XLPE/SCT/PVC CABLE ( WITH COPPER TAPE SCREENED )
AL/XLPE/SCT/PVC CABLE ( WITH COPPER TAPE SCREENED )
|
Nominal cross- sectional area of conductor |
Nominal diameter of conductor |
Nominal thickness of XLPE insulation |
Metallic Screening |
Nominal thickness of PVC sheath |
Approximate overall diameter of cable |
Approximate weight of cable |
|
|
Approximate thickness of copper tape |
Copper |
Aluminium |
|||||
|
mm2 |
mm |
mm |
mm |
mm |
mm |
Kg / Km |
Kg / Km |
|
50 |
8.1 |
3.4 |
0.1 |
1.6 |
21 |
834 |
536 |
|
70 |
9.7 |
3.4 |
0.1 |
1.7 |
23 |
1081 |
649 |
|
95 |
11.5 |
3.4 |
0.1 |
1.8 |
25 |
1380 |
782 |
|
120 |
12.9 |
3.4 |
0.1 |
1.8 |
26 |
1646 |
890 |
|
150 |
14.3 |
3.4 |
0.1 |
1.9 |
28 |
1947 |
1019 |
|
185 |
16.1 |
3.4 |
0.1 |
1.9 |
29 |
2337 |
1172 |
|
240 |
18.4 |
3.4 |
0.1 |
2.0 |
32 |
2965 |
1419 |
|
300 |
20.6 |
3.4 |
0.1 |
2.1 |
34 |
3612 |
1673 |
|
400 |
23.3 |
3.4 |
0.1 |
2.2 |
37 |
4488 |
2008 |
|
500 |
26.2 |
3.4 |
0.1 |
2.3 |
40 |
5525 |
2399 |
|
630 |
29.8 |
3.4 |
0.1 |
2.4 |
45 |
7003 |
2947 |
|
800 |
33.7 |
3.4 |
0.1 |
2.5 |
49 |
8773 |
3585 |
8.7/ 15 (17.5) kV XLPE INSULATED UNARMOURED PVC SHEATHED CABLE – SINGLE CORE
CU/XLPE/SCW/PVC CABLE ( WITH COPPER WIRE SCREENED )
AL/XLPE/SCW/PVC CABLE ( WITH COPPER WIRE SCREENED )
|
Nominal cross- |
Nominal |
Nominal thickness of XLPE insulation |
Nominal cross- sectional area of metallic screen |
Nominal |
Approximate overall diameter of cable |
Approximate weight of cable |
|
|
sectional area of conductor |
diameter of conductor |
thickness of PVC sheath |
Copper |
Aluminium |
|||
|
mm2 |
mm |
mm |
mm2 |
mm |
mm |
Kg / Km |
Kg / Km |
|
50 |
8.1 |
4.5 |
16 |
1.7 |
26 |
1053 |
754 |
|
70 |
9.7 |
4.5 |
16 |
1.8 |
27 |
1303 |
872 |
|
95 |
11.5 |
4.5 |
16 |
1.8 |
29 |
1593 |
995 |
|
120 |
12.9 |
4.5 |
16 |
1.9 |
31 |
1875 |
1119 |
|
150 |
14.3 |
4.5 |
25 |
1.9 |
32 |
2248 |
1320 |
|
185 |
16.1 |
4.5 |
25 |
2.0 |
34 |
2655 |
1490 |
|
240 |
18.4 |
4.5 |
25 |
2.1 |
37 |
3288 |
1742 |
|
300 |
20.6 |
4.5 |
25 |
2.1 |
39 |
3921 |
1982 |
|
400 |
23.3 |
4.5 |
35 |
2.3 |
42 |
4914 |
2435 |
|
500 |
26.2 |
4.5 |
35 |
2.4 |
45 |
5957 |
2830 |
|
630 |
29.8 |
4.5 |
35 |
2.5 |
50 |
7442 |
3386 |
|
800 |
33.7 |
4.5 |
50 |
2.6 |
54 |
9357 |
4169 |
8.7 / 15 (17.5) kV XLPE INSULATED UNARMOURED PVC SHEATHED CABLE – SINGLE CORE
CU/XLPE/SCT/PVC CABLE ( WITH COPPER TAPE SCREENED )
AL/XLPE/SCT/PVC CABLE ( WITH COPPER TAPE SCREENED )
|
Nominal cross- sectional area of conductor |
Nominal diameter of conductor |
Nominal thickness of XLPE insulation |
Metallic Screening |
Nominal thickness of PVC sheath |
Approximate overall diameter of cable |
Approximate weight of cable |
|
|
Approximate thickness of copper tape |
Copper |
Aluminium |
|||||
|
mm2 |
mm |
mm |
mm |
mm |
mm |
Kg / Km |
Kg / Km |
|
50 |
8.1 |
4.5 |
0.1 |
1.7 |
23 |
931 |
632 |
|
70 |
9.7 |
4.5 |
0.1 |
1.8 |
25 |
1184 |
753 |
|
95 |
11.5 |
4.5 |
0.1 |
1.8 |
27 |
1479 |
881 |
|
120 |
12.9 |
4.5 |
0.1 |
1.9 |
29 |
1763 |
1007 |
|
150 |
14.3 |
4.5 |
0.1 |
1.9 |
30 |
2056 |
1127 |
|
185 |
16.1 |
4.5 |
0.1 |
2.0 |
32 |
2466 |
1301 |
|
240 |
18.4 |
4.5 |
0.1 |
2.1 |
34 |
3104 |
1558 |
|
300 |
20.6 |
4.5 |
0.1 |
2.1 |
37 |
3742 |
1803 |
|
400 |
23.3 |
4.5 |
0.1 |
2.2 |
40 |
4629 |
2149 |
|
500 |
26.2 |
4.5 |
0.1 |
2.3 |
43 |
5676 |
2549 |
|
630 |
29.8 |
4.5 |
0.1 |
2.4 |
47 |
7168 |
3112 |
|
800 |
33.7 |
4.5 |
0.1 |
2.6 |
51 |
8976 |
3787 |
12.7 / 22 (24) kV XLPE INSULATED UNARMOURED PVC SHEATHED CABLE – SINGLE CORE
CU/XLPE/SCW/PVC CABLE ( WITH COPPER WIRE SCREENED )
AL/XLPE/SCW/PVC CABLE ( WITH COPPER WIRE SCREENED )
|
Nominal cross- |
Nominal |
Nominal thickness of XLPE insulation |
Nominal cross- sectional area of metallic screen |
Nominal |
Approximate overall diameter of cable |
Approximate weight of cable |
|
|
sectional area of conductor |
diameter of conductor |
thickness of PVC sheath |
Copper |
Aluminium |
|||
|
mm2 |
mm |
mm |
mm2 |
mm |
mm |
Kg / Km |
Kg / Km |
|
50 |
8.1 |
5.5 |
16 |
1.8 |
28 |
1146 |
847 |
|
70 |
9.7 |
5.5 |
16 |
1.9 |
30 |
1403 |
972 |
|
95 |
11.5 |
5.5 |
16 |
1.9 |
31 |
1699 |
1101 |
|
120 |
12.9 |
5.5 |
16 |
2.0 |
33 |
1986 |
1231 |
|
150 |
14.3 |
5.5 |
25 |
2.0 |
34 |
2364 |
1436 |
|
185 |
16.1 |
5.5 |
25 |
2.1 |
36 |
2778 |
1613 |
|
240 |
18.4 |
5.5 |
25 |
2.1 |
39 |
3402 |
1856 |
|
300 |
20.6 |
5.5 |
25 |
2.2 |
41 |
4060 |
2122 |
|
400 |
23.3 |
5.5 |
35 |
2.3 |
44 |
5044 |
2564 |
|
500 |
26.2 |
5.5 |
35 |
2.4 |
47 |
6096 |
2969 |
|
630 |
29.8 |
5.5 |
35 |
2.5 |
52 |
7594 |
3538 |
|
800 |
33.7 |
5.5 |
50 |
2.7 |
56 |
9548 |
4360 |
12.7 / 22 (24) kV XLPE INSULATED UNARMOURED PVC SHEATHED CABLE – SINGLE CORE
CU/XLPE/SCT/PVC CABLE ( WITH COPPER TAPE SCREENED )
AL/XLPE/SCT/PVC CABLE ( WITH COPPER TAPE SCREENED )
|
Nominal cross- sectional area of conductor |
Nominal diameter of conductor |
Nominal thickness of XLPE insulation |
Metallic Screening |
Nominal thickness of PVC sheath |
Approximate overall diameter of cable |
Approximate weight of cable |
|
|
Approximate thickness of copper tape |
Copper |
Aluminium |
|||||
|
mm2 |
mm |
mm |
mm |
mm |
mm |
Kg / Km |
Kg / Km |
|
50 |
8.1 |
5.5 |
0.1 |
1.8 |
26 |
1027 |
729 |
|
70 |
9.7 |
5.5 |
0.1 |
1.8 |
27 |
1275 |
843 |
|
95 |
11.5 |
5.5 |
0.1 |
1.9 |
29 |
1588 |
990 |
|
120 |
12.9 |
5.5 |
0.1 |
2.0 |
31 |
1878 |
1122 |
|
150 |
14.3 |
5.5 |
0.1 |
2.0 |
32 |
2176 |
1247 |
|
185 |
16.1 |
5.5 |
0.1 |
2.1 |
34 |
2593 |
1428 |
|
240 |
18.4 |
5.5 |
0.1 |
2.1 |
36 |
3222 |
1677 |
|
300 |
20.6 |
5.5 |
0.1 |
2.2 |
39 |
3886 |
1947 |
|
400 |
23.3 |
5.5 |
0.1 |
2.3 |
42 |
4782 |
2302 |
|
500 |
26.2 |
5.5 |
0.1 |
2.4 |
45 |
5840 |
2713 |
|
630 |
29.8 |
5.5 |
0.1 |
2.5 |
49 |
7348 |
3291 |
|
800 |
33.7 |
5.5 |
0.1 |
2.6 |
53 |
9145 |
3957 |
19 / 33 (36) kV XLPE INSULATED UNARMOURED PVC SHEATHED CABLE – SINGLE CORE
CU/XLPE/SCW/PVC CABLE ( WITH COPPER WIRE SCREENED )
AL/XLPE/SCW/PVC CABLE ( WITH COPPER WIRE SCREENED )
|
Nominal cross- |
Nominal |
Nominal thickness of XLPE insulation |
Nominal cross- sectional area of metallic screen |
Nominal |
Approximate overall diameter of cable |
Approximate weight of cable |
|
|
sectional area of conductor |
diameter of conductor |
thickness of PVC sheath |
Copper |
Aluminium |
|||
|
mm2 |
mm |
mm |
mm2 |
mm |
mm |
Kg / Km |
Kg / Km |
|
50 |
8.1 |
8.0 |
16 |
2.0 |
33 |
1405 |
1107 |
|
70 |
9.7 |
8.0 |
16 |
2.0 |
35 |
1662 |
1231 |
|
95 |
11.5 |
8.0 |
16 |
2.1 |
37 |
1989 |
1391 |
|
120 |
12.9 |
8.0 |
16 |
2.1 |
38 |
2273 |
1517 |
|
150 |
14.3 |
8.0 |
25 |
2.2 |
40 |
2680 |
1752 |
|
185 |
16.1 |
8.0 |
25 |
2.2 |
42 |
3091 |
1926 |
|
240 |
18.4 |
8.0 |
25 |
2.3 |
44 |
3754 |
2208 |
|
300 |
20.6 |
8.0 |
25 |
2.4 |
47 |
4434 |
2495 |
|
400 |
23.3 |
8.0 |
35 |
2.5 |
49 |
5442 |
2962 |
|
500 |
26.2 |
8.0 |
35 |
2.6 |
52 |
6520 |
3393 |
|
630 |
29.8 |
8.0 |
35 |
2.7 |
57 |
8055 |
3999 |
|
800 |
33.7 |
8.0 |
50 |
2.8 |
61 |
10018 |
4830 |
19 / 33 (36) kV XLPE INSULATED UNARMOURED PVC SHEATHED CABLE – SINGLE CORE
CU/XLPE/SCT/PVC CABLE ( WITH COPPER TAPE SCREENED )
AL/XLPE/SCT/PVC CABLE ( WITH COPPER TAPE SCREENED )
|
Nominal cross- sectional area of conductor |
Nominal diameter of conductor |
Nominal thickness of XLPE insulation |
Metallic Screening |
Nominal thickness of PVC sheath |
Approximate overall diameter of cable |
Approximate weight of cable |
|
|
Approximate thickness of copper tape |
Copper |
Aluminium |
|||||
|
mm2 |
mm |
mm |
mm |
mm |
mm |
Kg / Km |
Kg / Km |
|
50 |
8.1 |
8.0 |
0.1 |
2.0 |
31 |
1297 |
999 |
|
70 |
9.7 |
8.0 |
0.1 |
2.0 |
33 |
1558 |
1127 |
|
95 |
11.5 |
8.0 |
0.1 |
2.1 |
35 |
1888 |
1290 |
|
120 |
12.9 |
8.0 |
0.1 |
2.1 |
36 |
2176 |
1420 |
|
150 |
14.3 |
8.0 |
0.1 |
2.2 |
38 |
2502 |
1574 |
|
185 |
16.1 |
8.0 |
0.1 |
2.2 |
39 |
2917 |
1752 |
|
240 |
18.4 |
8.0 |
0.1 |
2.3 |
42 |
3585 |
2039 |
|
300 |
20.6 |
8.0 |
0.1 |
2.4 |
44 |
4269 |
2330 |
|
400 |
23.3 |
8.0 |
0.1 |
2.5 |
47 |
5190 |
2710 |
|
500 |
26.2 |
8.0 |
0.1 |
2.6 |
50 |
6274 |
3148 |
|
630 |
29.8 |
8.0 |
0.1 |
2.7 |
55 |
7819 |
3763 |
|
800 |
33.7 |
8.0 |
0.1 |
2.8 |
59 |
9651 |
4463 |
SINGLE CORE – XLPE INSULATED ARMOURED PVC SHEATHED CABLE FOR VOLTAGES 6.6 kV UP TO AND INCLUDING 33kV TO IEC 60502
DESCRIPTION
Circular compacted stranded copper or aluminium conductor, XLPE insulated, with copper tape screened and covered with extruded PVC bedding, aluminium wire armoured and PVC outer sheath.
CONSTRUCTION
Conductor
Plain circular compacted stranded copper or aluminium conductor to IEC 60228 class 2.
Conductor Screen
Extruded layer of semiconductive compound.
Insulation
XLPE (cross-linked polyethylene) rated at 90 oC.
Insulation Screen
Non-metallic part
Extruded layer of semiconductive compound.
Metallic part
Copper tape screen (SCT).
Bedding
Extruded layer of PVC ST2 compound.
Armour
Aluminium wires shall be applied helically over the PVC bedding.
Outer Sheath
PVC type ST2 to IEC 60502 colour black.
APPLICATION
For installation on trays, ducts or direct burial.
Note : cables complying with BS 6622 and customer’s specification are available upon request.
: PE outer sheath is available upon request.
3.8 / 6.6 (7.2) kV XLPE INSULATED ARMOURED PVC SHEATHED CABLE – SINGLE CORE
CU/XLPE/SCT/PVC/AWA/PVC CABLE ( WITH COPPER TAPE SCREENED )
AL/XLPE/SCT/PVC/AWA/PVC CABLE ( WITH COPPER TAPE SCREENED )
|
Nominal cross- sectional area of conduuctor |
Nominal diameter of conductor |
Nominal thickness of XLPE insulation |
Metallic Screening |
Nominal diameter of aluminium wire |
Nominal thickness of PVC sheath |
Approximate overall diameter of cable |
Approximate weight of cable |
|
|
Approximate thickness of copper tape |
Copper |
Aluminium |
||||||
|
mm2 |
mm |
mm |
mm |
mm |
mm |
mm |
Kg / Km |
Kg / Km |
|
50 |
8.1 |
3.0 |
0.1 |
1.6 |
1.8 |
27 |
1218 |
920 |
|
70 |
9.7 |
3.0 |
0.1 |
1.6 |
1.9 |
28 |
1495 |
1064 |
|
95 |
11.5 |
3.0 |
0.1 |
1.6 |
1.9 |
30 |
1811 |
1213 |
|
120 |
12.9 |
3.0 |
0.1 |
1.6 |
2.0 |
32 |
2115 |
1359 |
|
150 |
14.3 |
3.0 |
0.1 |
2.0 |
2.1 |
34 |
2528 |
1599 |
|
185 |
16.1 |
3.0 |
0.1 |
2.0 |
2.1 |
36 |
2946 |
1782 |
|
240 |
18.4 |
3.0 |
0.1 |
2.0 |
2.2 |
38 |
3630 |
2084 |
|
300 |
20.6 |
3.0 |
0.1 |
2.0 |
2.2 |
41 |
4301 |
2363 |
|
400 |
23.3 |
3.0 |
0.1 |
2.0 |
2.4 |
44 |
5255 |
2775 |
|
500 |
26.2 |
3.2 |
0.1 |
2.5 |
2.5 |
48 |
6560 |
3434 |
|
630 |
29.8 |
3.2 |
0.1 |
2.5 |
2.6 |
53 |
8168 |
4074 |
|
800 |
33.7 |
3.2 |
0.1 |
2.5 |
2.7 |
57 |
10030 |
4822 |
6.35 / 11 (12) kV XLPE INSULATED ARMOURED PVC SHEATHED CABLE – SINGLE CORE
CU/XLPE/SCT/PVC/AWA/PVC CABLE ( WITH COPPER TAPE SCREENED )
AL/XLPE/SCT/PVC/AWA/PVC CABLE ( WITH COPPER TAPE SCREENED )
|
Nominal cross- sectional area of conduuctor |
Nominal diameter of conductor |
Nominal thickness of XLPE insulation |
Metallic Screening |
Nominal diameter of aluminium wire |
Nominal thickness of PVC sheath |
Approximate overall diameter of cable |
Approximate weight of cable |
|
|
Approximate thickness of copper tape |
Copper |
Aluminium |
||||||
|
mm2 |
mm |
mm |
mm |
mm |
mm |
mm |
Kg / Km |
Kg / Km |
|
50 |
8.1 |
3.4 |
0.1 |
1.6 |
1.8 |
27 |
1261 |
963 |
|
70 |
9.7 |
3.4 |
0.1 |
1.6 |
1.9 |
29 |
1541 |
1109 |
|
95 |
11.5 |
3.4 |
0.1 |
1.6 |
2.0 |
31 |
1874 |
1276 |
|
120 |
12.9 |
3.4 |
0.1 |
2.0 |
2.0 |
33 |
2247 |
1491 |
|
150 |
14.3 |
3.4 |
0.1 |
2.0 |
2.1 |
35 |
2581 |
1652 |
|
185 |
16.1 |
3.4 |
0.1 |
2.0 |
2.1 |
37 |
3001 |
1837 |
|
240 |
18.4 |
3.4 |
0.1 |
2.0 |
2.2 |
39 |
3688 |
2142 |
|
300 |
20.6 |
3.4 |
0.1 |
2.0 |
2.3 |
42 |
4382 |
2443 |
|
400 |
23.3 |
3.4 |
0.1 |
2.5 |
2.4 |
46 |
5524 |
3003 |
|
500 |
26.2 |
3.4 |
0.1 |
2.5 |
2.5 |
48 |
6590 |
3464 |
|
630 |
29.8 |
3.4 |
0.1 |
2.5 |
2.6 |
53 |
8201 |
4145 |
|
800 |
33.7 |
3.4 |
0.1 |
2.5 |
2.8 |
58 |
10132 |
4944 |
8.75 / 15 (17.5) kV XLPE INSULATED ARMOURED PVC SHEATHED CABLE – SINGLE CORE
CU/XLPE/SCT/PVC/AWA/PVC CABLE ( WITH COPPER TAPE SCREENED )
AL/XLPE/SCT/PVC/AWA/PVC CABLE ( WITH COPPER TAPE SCREENED )
|
Nominal cross- sectional area of conduuctor |
Nominal diameter of conductor |
Nominal thickness of XLPE insulation |
Metallic Screening |
Nominal diameter of aluminium wire |
Nominal thickness of PVC sheath |
Approximate overall diameter of cable |
Approximate weight of cable |
|
|
Approximate thickness of copper tape |
Copper |
Aluminium |
||||||
|
mm2 |
mm |
mm |
mm |
mm |
mm |
mm |
Kg / Km |
Kg / Km |
|
50 |
8.1 |
4.5 |
0.1 |
1.6 |
1.9 |
30 |
1401 |
1103 |
|
70 |
9.7 |
4.5 |
0.1 |
1.6 |
2.0 |
32 |
1688 |
1257 |
|
95 |
11.5 |
4.5 |
0.1 |
2.0 |
2.1 |
34 |
2111 |
1513 |
|
120 |
12.9 |
4.5 |
0.1 |
2.0 |
2.1 |
36 |
2412 |
1656 |
|
150 |
14.3 |
4.5 |
0.1 |
2.0 |
2.2 |
37 |
2752 |
1824 |
|
185 |
16.1 |
4.5 |
0.1 |
2.0 |
2.2 |
39 |
3188 |
2024 |
|
240 |
18.4 |
4.5 |
0.1 |
2.0 |
2.3 |
42 |
3875 |
2330 |
|
300 |
20.6 |
4.5 |
0.1 |
2.0 |
2.4 |
44 |
4579 |
2640 |
|
400 |
23.3 |
4.5 |
0.1 |
2.5 |
2.5 |
48 |
5709 |
3229 |
|
500 |
26.2 |
4.5 |
0.1 |
2.5 |
2.6 |
51 |
6849 |
3723 |
|
630 |
29.8 |
4.5 |
0.1 |
2.5 |
2.7 |
56 |
8456 |
4400 |
|
800 |
33.7 |
4.5 |
0.1 |
2.5 |
2.8 |
60 |
10362 |
5174 |
12.7 / 22 (24) kV XLPE INSULATED ARMOURED PVC SHEATHED CABLE – SINGLE CORE
CU/XLPE/SCT/PVC/AWA/PVC CABLE ( WITH COPPER TAPE SCREENED )
AL/XLPE/SCT/PVC/AWA/PVC CABLE ( WITH COPPER TAPE SCREENED )
|
Nominal cross- sectional area of conduuctor |
Nominal diameter of conductor |
Nominal thickness of XLPE insulation |
Metallic Screening |
Nominal diameter of aluminium wire |
Nominal thickness of PVC sheath |
Approximate overall diameter of cable |
Approximate weight of cable |
|
|
Approximate thickness of copper tape |
Copper |
Aluminium |
||||||
|
mm2 |
mm |
mm |
mm |
mm |
mm |
mm |
Kg / Km |
Kg / Km |
|
50 |
8.1 |
5.5 |
0.1 |
2.0 |
2.0 |
33 |
1615 |
1317 |
|
70 |
9.7 |
5.5 |
0.1 |
2.0 |
2.1 |
35 |
1910 |
1478 |
|
95 |
11.5 |
5.5 |
0.1 |
2.0 |
2.1 |
36 |
2251 |
1653 |
|
120 |
12.9 |
5.5 |
0.1 |
2.0 |
2.2 |
38 |
2573 |
1818 |
|
150 |
14.3 |
5.5 |
0.1 |
2.0 |
2.2 |
39 |
2900 |
1972 |
|
185 |
16.1 |
5.5 |
0.1 |
2.0 |
2.3 |
41 |
3352 |
2187 |
|
240 |
18.4 |
5.5 |
0.1 |
2.0 |
2.4 |
44 |
4057 |
2512 |
|
300 |
20.6 |
5.5 |
0.1 |
2.5 |
2.5 |
47 |
4945 |
3006 |
|
400 |
23.3 |
5.5 |
0.1 |
2.5 |
2.6 |
50 |
5912 |
3432 |
|
500 |
26.2 |
5.5 |
0.1 |
2.5 |
2.7 |
54 |
7064 |
3938 |
|
630 |
29.8 |
5.5 |
0.1 |
2.5 |
2.8 |
58 |
8711 |
4655 |
|
800 |
33.7 |
5.5 |
0.1 |
2.5 |
2.9 |
62 |
10623 |
5435 |
19/33 (36) kV XLPE INSULATED ARMOURED PVC SHEATHED CABLE – SINGLE CORE
CU/XLPE/SCT/PVC/AWA/PVC CABLE ( WITH COPPER TAPE SCREENED )
AL/XLPE/SCT/PVC/AWA/PVC CABLE ( WITH COPPER TAPE SCREENED )
|
Nominal cross- sectional area of conduuctor |
Nominal diameter of conductor |
Nominal thickness of XLPE insulation |
Metallic Screening |
Nominal diameter of aluminium wire |
Nominal thickness of PVC sheath |
Approximate overall diameter of cable |
Approximate weight of cable |
|
|
Approximate thickness of copper tape |
Copper |
Aluminium |
||||||
|
mm2 |
mm |
mm |
mm |
mm |
mm |
mm |
Kg / Km |
Kg / Km |
|
50 |
8.1 |
8.0 |
0.1 |
2.0 |
2.2 |
38 |
1993 |
1695 |
|
70 |
9.7 |
8.0 |
0.1 |
2.0 |
2.2 |
40 |
2293 |
1863 |
|
95 |
11.5 |
8.0 |
0.1 |
2.0 |
2.3 |
42 |
2659 |
2061 |
|
120 |
12.9 |
8.0 |
0.1 |
2.0 |
2.4 |
43 |
2996 |
2240 |
|
150 |
14.3 |
8.0 |
0.1 |
2.5 |
2.4 |
46 |
3498 |
2570 |
|
185 |
16.1 |
8.0 |
0.1 |
2.5 |
2.5 |
48 |
3979 |
2814 |
|
240 |
18.4 |
8.0 |
0.1 |
2.5 |
2.6 |
50 |
4714 |
3169 |
|
300 |
20.6 |
8.0 |
0.1 |
2.5 |
2.6 |
53 |
5462 |
3523 |
|
400 |
23.3 |
8.0 |
0.1 |
2.5 |
2.8 |
56 |
6480 |
4000 |
|
500 |
26.2 |
8.0 |
0.1 |
2.5 |
2.9 |
59 |
7662 |
4536 |
|
630 |
29.8 |
8.0 |
0.1 |
2.5 |
3.0 |
64 |
9362 |
5306 |
|
800 |
33.7 |
8.0 |
0.1 |
2.5 |
3.1 |
68 |
11300 |
6112 |
SINGLE CORE – XLPE INSULATED UNARMOURED PE INNER AND OUTER SHEATH CABLE FOR VOLTAGES 6.35 / 11 (12) kV AND 12.7 / 22 (24) kV
DESCRIPTION
Circular compacted stranded aluminium conductor, XLPE insulated, with copper tape screened, extruded with PE inner sheath and followed by an extruded PE outer sheath. Complies with Tenaga National Berhad (TNB) specification.
CONSTRUCTION
Conductor
Plain circular compacted stranded aluminium conductor to IEC 60228 class 2.
Conductor Screen
Extruded layer of semiconductive compound.
Insulation
XLPE (cross-linked polyethylene) rated at 90 oC.
Insulation Screen
Non-metallic part
Extruded layer of semiconductive compound.
Metallic part
Copper tape screen (SCT).
Inner Sheath
MDPE type ST7 to IEC 60502 colour black.
Outer Sheath
MDPE type ST7 to IEC 60502 colour black containing an effective termite repellent.
APPLICATION
These cables are generally suitable for direct burial or for installation on trays or ducts.
6.35/11(12)kV XLPE INSULATED UNARMOURED PE INNER AND OUTER SHEATH CABLE – SINGLE CORE
AL/XLPE/SCT/MDPE/MDPE CABLE ( WITH COPPER TAPE SCREENED )
|
Nominal cross- |
Nominal |
Nominal thickness of XLPE insulation |
Metallic Screening |
Approximate overall diameter of cable |
Approximate weight of cable |
||
|
sectional area of conductor |
diameter of conductor |
Approximate thickness of copper tape |
Nominal thickness of PE inner sheath |
Nominal thickness of PE outer sheath |
Aluminium |
||
|
mm2 |
mm |
mm |
mm |
mm |
mm |
Kg / Km |
Kg / Km |
|
50 |
8.1 |
3.4 |
0.2 |
2.5 |
1.8 |
27 |
772 |
|
70 |
9.7 |
3.4 |
0.2 |
2.5 |
1.8 |
29 |
891 |
|
95 |
11.5 |
3.4 |
0.2 |
2.5 |
1.8 |
30 |
1029 |
|
120 |
12.9 |
3.4 |
0.2 |
2.5 |
1.8 |
32 |
1151 |
|
150 |
14.3 |
3.4 |
0.2 |
2.5 |
1.9 |
33 |
1289 |
|
185 |
16.1 |
3.4 |
0.2 |
2.5 |
1.9 |
35 |
1458 |
|
240 |
18.4 |
3.4 |
0.2 |
2.5 |
2.0 |
38 |
1722 |
|
300 |
20.6 |
3.4 |
0.2 |
2.5 |
2.1 |
40 |
1991 |
|
400 |
23.3 |
3.4 |
0.2 |
2.5 |
2.2 |
43 |
2346 |
|
500 |
26.2 |
3.4 |
0.2 |
2.5 |
2.3 |
46 |
2755 |
|
630 |
29.8 |
3.4 |
0.2 |
2.5 |
2.4 |
51 |
3332 |
|
800 |
33.7 |
3.4 |
0.2 |
2.5 |
2.5 |
55 |
3995 |
12.7 / 22 (24) kV XLPE INSULATED UNARMOURED PE INNER AND OUTER SHEATH CABLE – SINGLE CORE
AL/XLPE/SCT/MDPE/MDPE CABLE ( WITH COPPER TAPE SCREENED )
|
Nominal cross- sectional area of conductor |
Nominal diameter of conductor |
Nominal thickness of XLPE insulation |
Metallic Screening |
Nominal thickness of PE inner sheath |
Nominal thickness of PE outer sheath |
Approximate overall diameter of cable |
Approximate weight of cable |
|
Approximate thickness of copper tape |
Aluminium |
||||||
|
mm2 |
mm |
mm |
mm |
mm |
mm |
Kg / Km |
Kg / Km |
|
50 |
8.1 |
5.5 |
0.2 |
2.5 |
1.8 |
31 |
983 |
|
70 |
9.7 |
5.5 |
0.2 |
2.5 |
1.9 |
33 |
1123 |
|
95 |
11.5 |
5.5 |
0.2 |
2.5 |
1.9 |
35 |
1272 |
|
120 |
12.9 |
5.5 |
0.2 |
2.5 |
2.0 |
36 |
1414 |
|
150 |
14.3 |
5.5 |
0.2 |
2.5 |
2.0 |
38 |
1551 |
|
185 |
16.1 |
5.5 |
0.2 |
2.5 |
2.1 |
40 |
1743 |
|
240 |
18.4 |
5.5 |
0.2 |
2.5 |
2.2 |
42 |
2025 |
|
300 |
20.6 |
5.5 |
0.2 |
2.5 |
2.2 |
45 |
2297 |
|
400 |
23.3 |
5.5 |
0.2 |
2.5 |
2.3 |
47 |
2670 |
|
500 |
26.2 |
5.5 |
0.2 |
2.5 |
2.4 |
51 |
3099 |
|
630 |
29.8 |
5.5 |
0.2 |
2.5 |
2.5 |
55 |
3704 |
|
800 |
33.7 |
5.5 |
0.2 |
2.5 |
2.7 |
59 |
4411 |
THREE CORES – XLPE INSULATED UNARMOURED PVC SHEATHED CABLE FOR VOLTAGES 6.6 kV UP TO AND INCLUDING 33 kV TO IEC 60502
DESCRIPTION
Circular compacted stranded copper or aluminium conductor, XLPE insulated, copper tape screened, three cores assembled together with non-hygroscopic polypropylene fillers and extruded with PVC outer sheath.
CONSTRUCTION
Conductor
Plain circular compacted stranded copper or aluminium conductor to IEC 60228 class 2.
Conductor Screen
Extruded layer of semiconductive compound.
Insulation
XLPE (cross-linked polyethylene) rated at 90 oC.
Insulation Screen
Non-metallic part
Extruded layer of semiconductive compound.
Metallic part
Copper tape screen (SCT).
Colours For Core Identification
Red, yellow and blue tapes shall be applied between non metallic and metallic part of insulation screen.
Assembly
Three screened cores are laid up together, if necessary filled with non-hygroscopic material compatible with insulation and covered with a layer of PVC sheath.
Outer Sheath
PVC type ST2 IEC 60502 colour black.
APPLICATION
These cables are generally suitable for direct burial or for installation on trays or ducts. Where there is a risk of mechanical damage, armoured cables should be used.
Note: Cables complying with BS 6622 and customer’s specification are available upon request.
: PE outer sheath is available upon request.
3.8 / 6.6 (7.2) kV XLPE INSULATED UNARMOURED PVC SHEATHED CABLE – THREE CORES
CU/XLPE/SCT/PVC CABLE ( WITH COPPER TAPE SCREENED )
AL/XLPE/SCT/PVC CABLE ( WITH COPPER TAPE SCREENED )
|
Nominal cross- sectional area of conductor |
Nominal diameter of conductor |
Nominal thickness of XLPE insulation |
Metallic Screening |
Nominal thickness of PVC sheath |
Approximate overall diameter of cable |
Approximate weight of cable |
|
|
Approximate thickness of copper tape |
Copper |
Aluminium |
|||||
|
mm2 |
mm |
mm |
mm |
mm |
mm |
Kg / Km |
Kg / Km |
|
50 |
8.1 |
3.0 |
0.1 |
2.3 |
41 |
2640 |
1728 |
|
70 |
9.7 |
3.0 |
0.1 |
2.4 |
44 |
3417 |
2097 |
|
95 |
11.5 |
3.0 |
0.1 |
2.6 |
49 |
4385 |
2555 |
|
120 |
12.9 |
3.0 |
0.1 |
2.7 |
52 |
5263 |
2950 |
|
150 |
14.3 |
3.0 |
0.1 |
2.8 |
55 |
6211 |
3371 |
|
185 |
16.1 |
3.0 |
0.1 |
2.9 |
59 |
7485 |
3922 |
|
240 |
18.4 |
3.0 |
0.1 |
3.1 |
65 |
9506 |
4777 |
|
300 |
20.6 |
3.0 |
0.1 |
3.2 |
70 |
11556 |
5623 |
|
400 |
23.3 |
3.0 |
0.1 |
3.4 |
76 |
14372 |
6783 |
6.35 / 11 (12) kV XLPE INSULATED UNARMOURED PVC SHEATHED CABLE – THREE CORES
CU/XLPE/SCT/PVC CABLE ( WITH COPPER TAPE SCREENED )
AL/XLPE/SCT/PVC CABLE ( WITH COPPER TAPE SCREENED )
|
Nominal cross- sectional area of conductor |
Nominal diameter of conductor |
Nominal thickness of XLPE insulation |
Metallic Screening |
Nominal thickness of PVC sheath |
Approximate overall diameter of cable |
Approximate weight of cable |
|
|
Approximate thickness of copper tape |
Copper |
Aluminium |
|||||
|
mm2 |
mm |
mm |
mm |
mm |
mm |
Kg / Km |
Kg / Km |
|
50 |
8.1 |
3.4 |
0.1 |
2.4 |
43 |
2769 |
1856 |
|
70 |
9.7 |
3.4 |
0.1 |
2.5 |
46 |
3557 |
2237 |
|
95 |
11.5 |
3.4 |
0.1 |
2.6 |
50 |
4513 |
2683 |
|
120 |
12.9 |
3.4 |
0.1 |
2.7 |
54 |
5398 |
3085 |
|
150 |
14.3 |
3.4 |
0.1 |
2.8 |
57 |
6354 |
3513 |
|
185 |
16.1 |
3.4 |
0.1 |
3.0 |
61 |
7666 |
4102 |
|
240 |
18.4 |
3.4 |
0.1 |
3.1 |
66 |
9670 |
4941 |
|
300 |
20.6 |
3.4 |
0.1 |
3.3 |
71 |
11765 |
5833 |
|
400 |
23.3 |
3.4 |
0.1 |
3.5 |
78 |
14598 |
7010 |
8.7 / 15 (17.5) kV XLPE INSULATED UNARMOURED PVC SHEATHED CABLE – THREE CORES
CU/XLPE/SCT/PVC CABLE ( WITH COPPER TAPE SCREENED )
AL/XLPE/SCT/PVC CABLE ( WITH COPPER TAPE SCREENED )
|
Nominal cross- sectional area of conductor |
Nominal diameter of conductor |
Nominal thickness of XLPE insulation |
Metallic Screening |
Nominal thickness of PVC sheath |
Approximate overall diameter of cable |
Approximate weight of cable |
|
|
Approximate thickness of copper tape |
Copper |
Aluminium |
|||||
|
mm2 |
mm |
mm |
mm |
mm |
mm |
Kg / Km |
Kg / Km |
|
50 |
8.1 |
4.5 |
0.1 |
2.6 |
48 |
3137 |
2224 |
|
70 |
9.7 |
4.5 |
0.1 |
2.7 |
52 |
3953 |
2633 |
|
95 |
11.5 |
4.5 |
0.1 |
2.8 |
55 |
4937 |
3107 |
|
120 |
12.9 |
4.5 |
0.1 |
2.9 |
59 |
5845 |
3533 |
|
150 |
14.3 |
4.5 |
0.1 |
3.0 |
62 |
6826 |
3985 |
|
185 |
16.1 |
4.5 |
0.1 |
3.1 |
66 |
8137 |
4574 |
|
240 |
18.4 |
4.5 |
0.1 |
3.3 |
71 |
10212 |
5482 |
|
300 |
20.6 |
4.5 |
0.1 |
3.4 |
76 |
12308 |
6376 |
|
400 |
23.3 |
4.5 |
0.1 |
3.7 |
83 |
15223 |
7635 |
12.7 / 22 (24) kV XLPE INSULATED UNARMOURED PVC SHEATHED CABLE – THREE CORES
CU/XLPE/SCT/PVC CABLE ( WITH COPPER TAPE SCREENED )
AL/XLPE/SCT/PVC CABLE ( WITH COPPER TAPE SCREENED )
|
Nominal cross- sectional area of conductor |
Nominal diameter of conductor |
Nominal thickness of XLPE insulation |
Metallic Screening |
Nominal thickness of PVC sheath |
Approximate overall diameter of cable |
Approximate weight of cable |
|
|
Approximate thickness of copper tape |
Copper |
Aluminium |
|||||
|
mm2 |
mm |
mm |
mm |
mm |
mm |
Kg / Km |
Kg / Km |
|
50 |
8.1 |
5.5 |
0.1 |
2.7 |
52 |
3483 |
2570 |
|
70 |
9.7 |
5.5 |
0.1 |
2.8 |
56 |
4323 |
3003 |
|
95 |
11.5 |
5.5 |
0.1 |
3.0 |
60 |
5360 |
3530 |
|
120 |
12.9 |
5.5 |
0.1 |
3.1 |
64 |
6292 |
3980 |
|
150 |
14.3 |
5.5 |
0.1 |
3.2 |
67 |
7293 |
4453 |
|
185 |
16.1 |
5.5 |
0.1 |
3.3 |
71 |
8631 |
5067 |
|
240 |
18.4 |
5.5 |
0.1 |
3.4 |
76 |
10706 |
5976 |
|
300 |
20.6 |
5.5 |
0.1 |
3.6 |
81 |
12872 |
6939 |
|
400 |
23.3 |
5.5 |
0.1 |
3.8 |
87 |
15789 |
8201 |
19 / 33 (36) kV XLPE INSULATED UNARMOURED PVC SHEATHED CABLE – THREE CORES
CU/XLPE/SCT/PVC CABLE ( WITH COPPER TAPE SCREENED )
AL/XLPE/SCT/PVC CABLE ( WITH COPPER TAPE SCREENED )
|
Nominal cross-sectional area of conductor |
Nominal diameter of conductor |
Nominal thickness of XLPE insulation |
Metallic Screening |
Nominal thickness of PVC sheath |
Approximate overall diameter of cable |
Approximate weight of cable |
|
|
Approximate thickness ofcopper tape |
Copper |
Aluminium |
|||||
|
mm2 |
mm |
mm |
mm |
mm |
mm |
Kg / Km
|
Kg / Km |
|
50 |
8.1 |
8.0 |
0.1 |
3.1 |
64 |
4521 |
3608 |
|
70 |
9.7 |
8.0 |
0.1 |
3.2 |
68 |
5420 |
4100 |
|
95 |
11.5 |
8.0 |
0.1 |
3.3 |
72 |
6494 |
4664 |
|
120 |
12.9 |
8.0 |
0.1 |
3.4 |
75 |
7478 |
5165 |
|
150 |
14.3 |
8.0 |
0.1 |
3.5 |
78 |
8530 |
5689 |
|
185 |
16.1 |
8.0 |
0.1 |
3.7 |
82 |
9970 |
6406 |
|
240 |
18.4 |
8.0 |
0.1 |
3.8 |
88 |
12131 |
7401 |
|
300 |
20.6 |
8.0 |
0.1 |
4.0 |
93 |
14380 |
8448 |
|
400 |
23.3 |
8.0 |
0.1 |
4.2 |
99 |
17402 |
9814 |
